S22LGRONT Banner Pick-to-Light Sensors

S22LGRONT on Powermatic Associates
Banner
  • S22LGRONT
  • S22LGRONT

Part#:S22LGRONT

Alt. Part#:88378

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

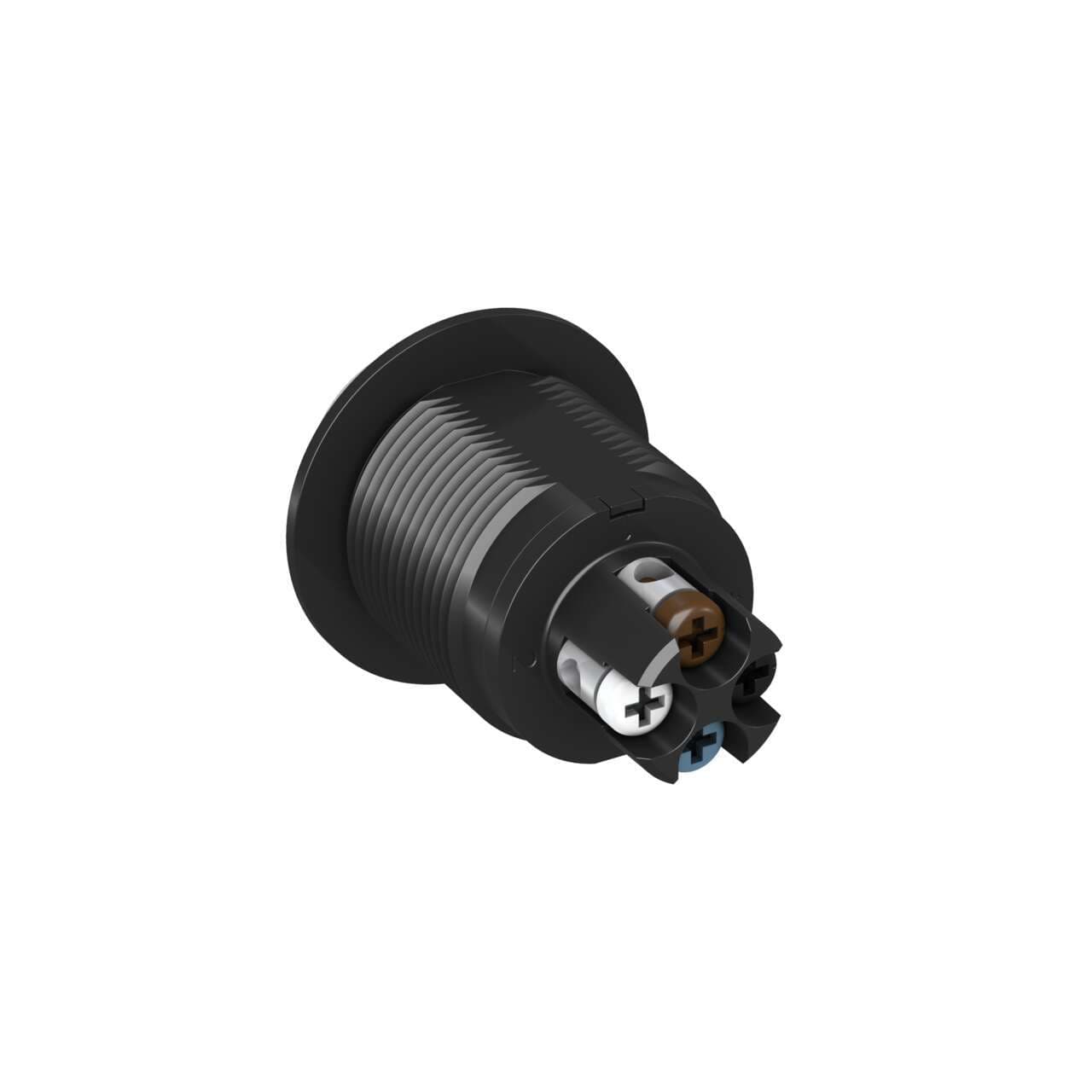

S22 EZ Light - 22 mm - IP67; Three Color: Green Red Orange; 10-30 V dc NPN Input; 4-screw Terminal Wiring

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Primary Window Material
    Polycarbonate Diffused
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    26.0 x 34.2
  • Max Op. Temperature (°C)
    50
  • Input Type
    NPN
  • Max Current Color (mA)
    25
  • Number of Input Pins/Conductors
    4
  • Color Option 2
    Red
  • Supply Voltage
    10-30 V dc
  • Lumens Color 2
    1.1
  • Lumens Color 3
    0.80
  • Connection
    Terminal
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Power
    DC
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Mounting Thread
    M22 x 1.5
  • Indication
    Yes
  • Product Size (mm)
    22
  • Number of Colors / Segments
    3
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Max Input Response Time (ms)
    1
  • Color 3 - Wavelength/Color Temp/Coordinates
    608 nm
  • Color Option 3
    Orange
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 1
    4.1
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Primary Housing Material
    Polycarbonate
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Barrel Mount - Flat Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LGRONT on Powermatic Associates is $50.00. Order now.

About the product

Banner Engineering S22LGRONT is a pilot light from the EZ-LIGHT series, featuring a 3-color G/R/O color pattern LED illumination designed for use as an LED pilot light indicator. It is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. This part has a 22mm indicator diameter and utilizes a screw-clamp terminal connection for secure installation. The housing is black, and it operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It is designed for flush mounting in a 22mm hole with an M22 thread. The S22LGRONT can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape of the part is characterized by a flat window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 3 digital inputs (10-30Vdc; NPN) for color control.

S22LGRONT Related Documents

171439.pdf
