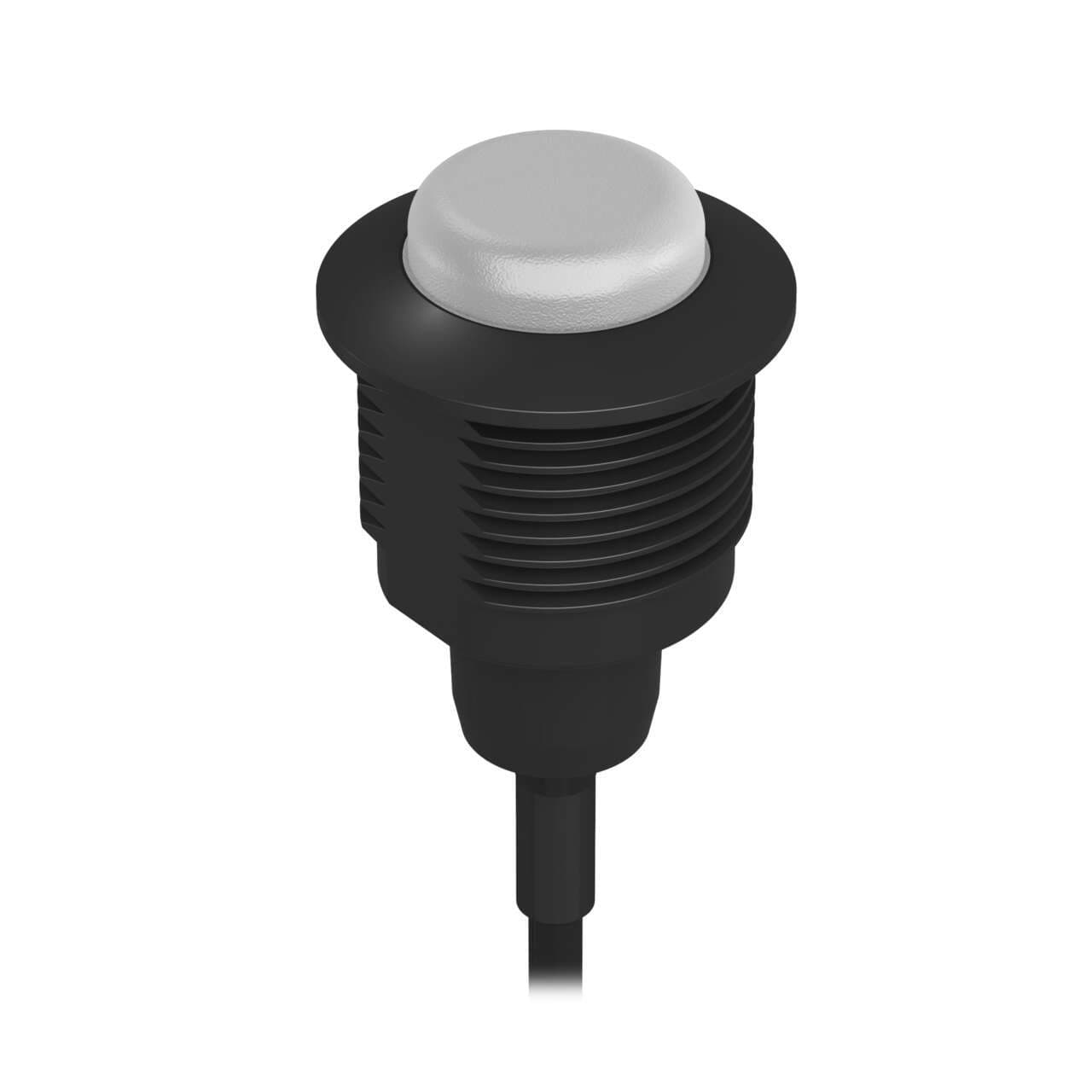

S22LGRXP Banner Pick-to-Light Sensors

S22LGRXP on Powermatic Associates
Banner

Part#:S22LGRXP

Alt. Part#:86097

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

S22 EZ Light - 22 mm - IP67; Two Color: Green Red; 10-30 V dc PNP Input; 4-wire 2 m Cable

Product Details

  • Weight
    81.64656 g
  • Country Of Origin
    CN
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Physical Dimensions (LxWxH or DxH mm)
    26.0 x 35.3
  • Max Op. Temperature (°C)
    50
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Environmental Rating
    IP67; IP69
  • Input Type
    PNP
  • Max Input Response Time (ms)
    1
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    25
  • Lumens Color 2
    1.1
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Color Option 2
    Red
  • Lumens Color 1
    4.1
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Power Source
    DC
  • Number of Colors / Segments
    2
  • Power
    DC
  • Product Size (mm)
    22
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M22 x 1.5
  • Indication
    Yes
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Barrel Mount - Flat Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LGRXP on Powermatic Associates is $42.00. Order now.

About the product

Banner Engineering S22LGRXP, part of the EZ-LIGHT series, is a pilot light designed with a 2-color G/R color pattern LED illumination. This LED pilot light indicator features a polycarbonate (PC) diffused window and base, with a 22mm indicator diameter. It is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads, and comes in a black housing. The supply voltage ranges from 10Vdc to 30Vdc (12Vdc-24Vdc nom.), and it is designed for flush mounting in a 22mm hole with an M22 thread. The S22LGRXP operates in ambient air temperatures from -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a flat window and threaded cylindrical barrel, with a current consumption of 25mA. Additionally, it includes 2 x digital inputs (10-30Vdc; PNP) for color control.
