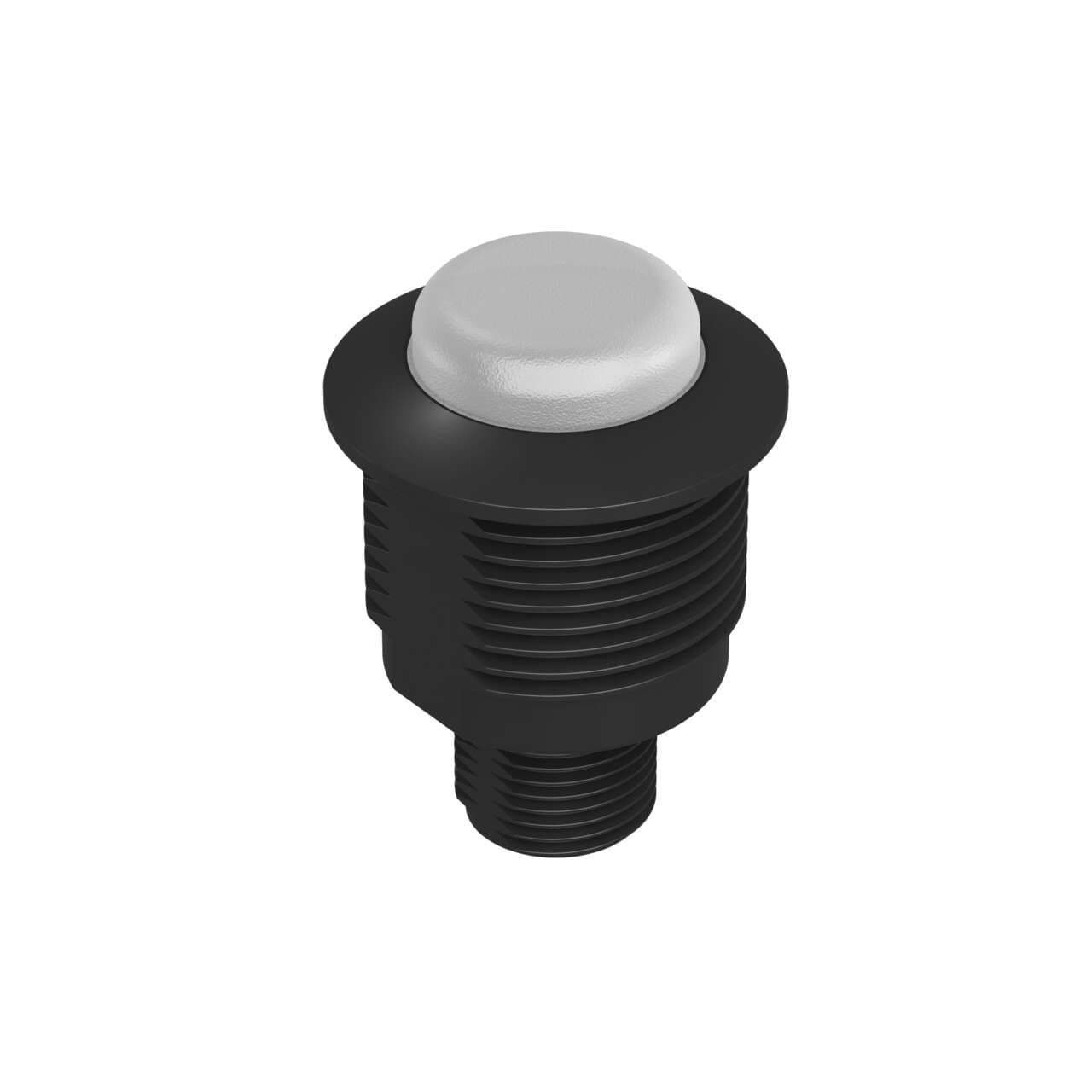

S22LGRXPQ Banner Pick-to-Light Sensors

Product Details

• Weight
  37.9202912 g
• Country Of Origin
  CN
• Mounting Thread
  M22 x 1.5
• Quick Disconnect Type
  M12 (Euro)
• Supply Voltage
  10-30 V dc
• Min Op. Temperature (°C)
  -40
• Power
  DC
• Animation Option 1
  Solid On
• Input Type
  PNP
• Max Op. Temperature (°C)
  50
• Pro-Editor Compatible (Discrete)
  No
• Housing Style
  Barrel Mount - Flat Window
• Number of Colors / Segments
  2
• Color 1 - Wavelength/Color Temp/Coordinates
  525 nm
• Feature: Hazardous Area
  No
• Feature: Audible
  No
• Power Source
  DC
• Color Option 1
  Green
• Max Input Response Time (ms)
  1
• Primary Housing Color
  Black
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Connection
Integral QD
Max Current Color (mA)
25
Feature: Chemical Resistant
No
Product Size (mm)
22
Lumens Color 2
1.1
Environmental Rating
IP67; IP69
Multi-Color Device
Single Color On
Indication
Yes
Color Option 2
Red
Physical Dimensions (LxWxH or DxH mm)
26.0 x 35.3
Feature: Washdown Rated
Yes
IO Link
No
Modbus RTU
No
Cable Length (m)
0.15
Lumens Color 1
4.1
Number of Input Pins/Conductors
4
Primary Window Material
Polycarbonate Diffused
Primary Housing Material
Polycarbonate
Color Technology
Standard LED
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Wireless
No
