S22LGRXPT Banner Pick-to-Light Sensors

S22LGRXPT on Powermatic Associates
Banner
  • S22LGRXPT
  • S22LGRXPT

Part#:S22LGRXPT

Alt. Part#:86109

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

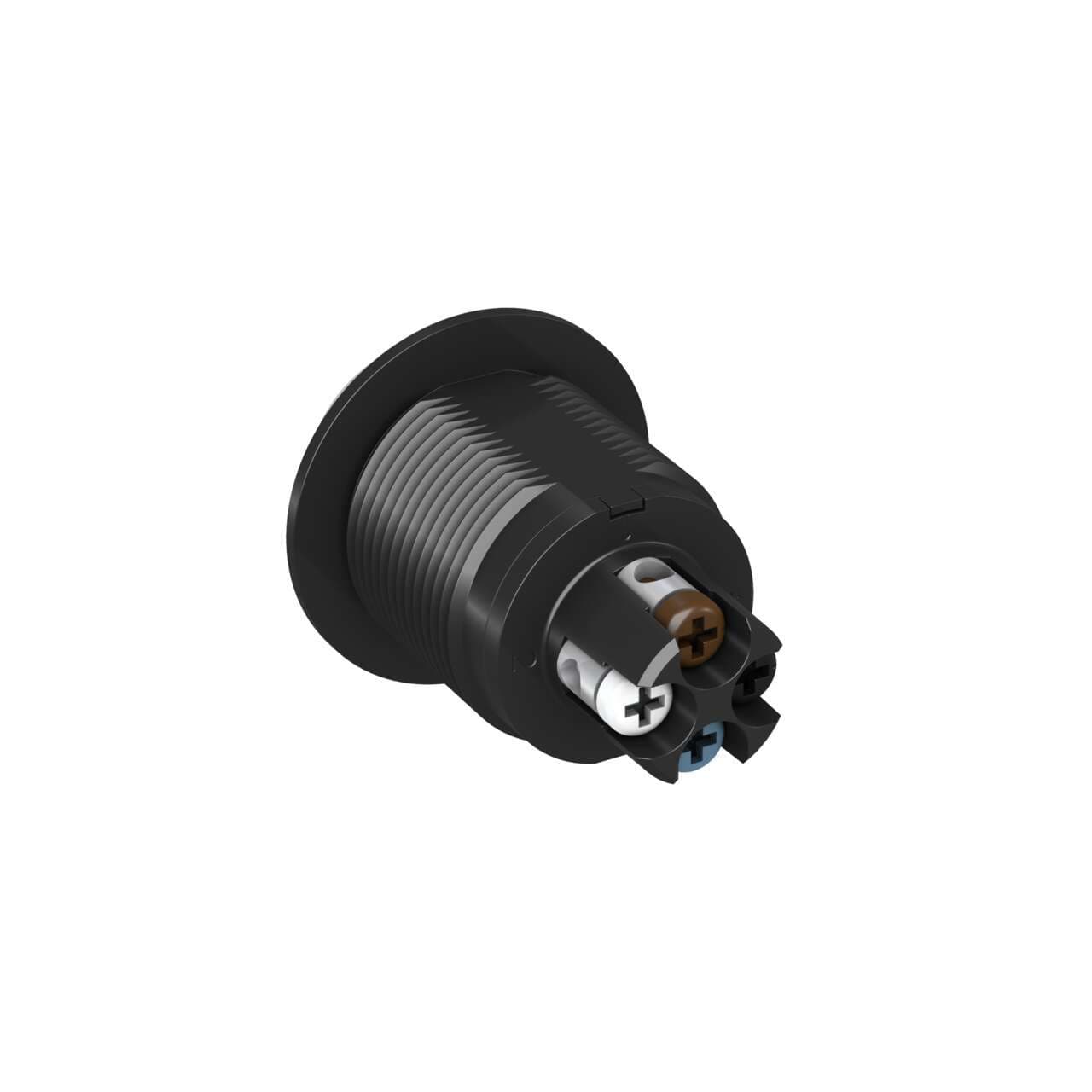

S22 EZ Light - 22 mm - IP67; Two Color: Green Red; 10-30 V dc PNP Input; 4-screw Terminal Wiring

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Physical Dimensions (LxWxH or DxH mm)
    26.0 x 34.2
  • Primary Housing Color
    Black
  • Multi-Color Device
    Single Color On
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Environmental Rating
    IP67; IP69
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Lumens Color 2
    1.1
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Current Color (mA)
    25
  • Animation Option 1
    Solid On
  • Color Option 2
    Red
  • Connection
    Terminal
  • Lumens Color 1
    4.1
  • Color Technology
    Standard LED
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Color Option 1
    Green
  • Product Size (mm)
    22
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Housing Style
    Barrel Mount - Flat Window
  • Mounting Thread
    M22 x 1.5
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LGRXPT on Powermatic Associates is $47.00. Order now.

About the product

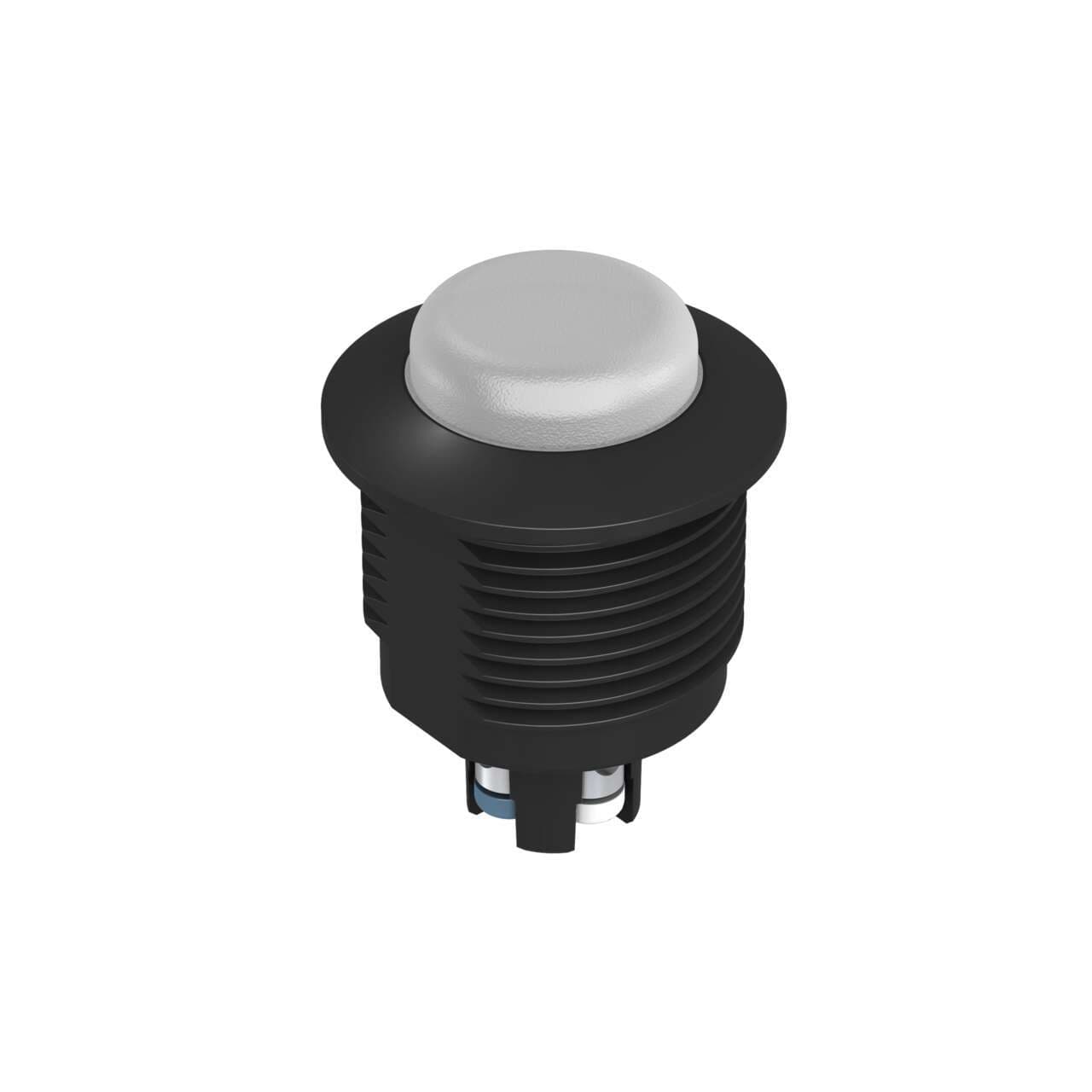

Banner Engineering S22LGRXPT is a pilot light from the EZ-LIGHT series featuring a 2-color G/R color pattern LED illumination. This part is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a 22mm indicator diameter and utilizes a screw-clamp terminal connection for secure installation. The housing is black, and it operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. The S22LGRXPT is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, making it suitable for various environmental conditions. The shape is characterized by a flat window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 2 x digital inputs (10-30Vdc; PNP) for color control.
