S22LGRYNQP Banner Pick-to-Light Sensors

S22LGRYNQP on Powermatic Associates
Banner

Part#:S22LGRYNQP

Alt. Part#:86123

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

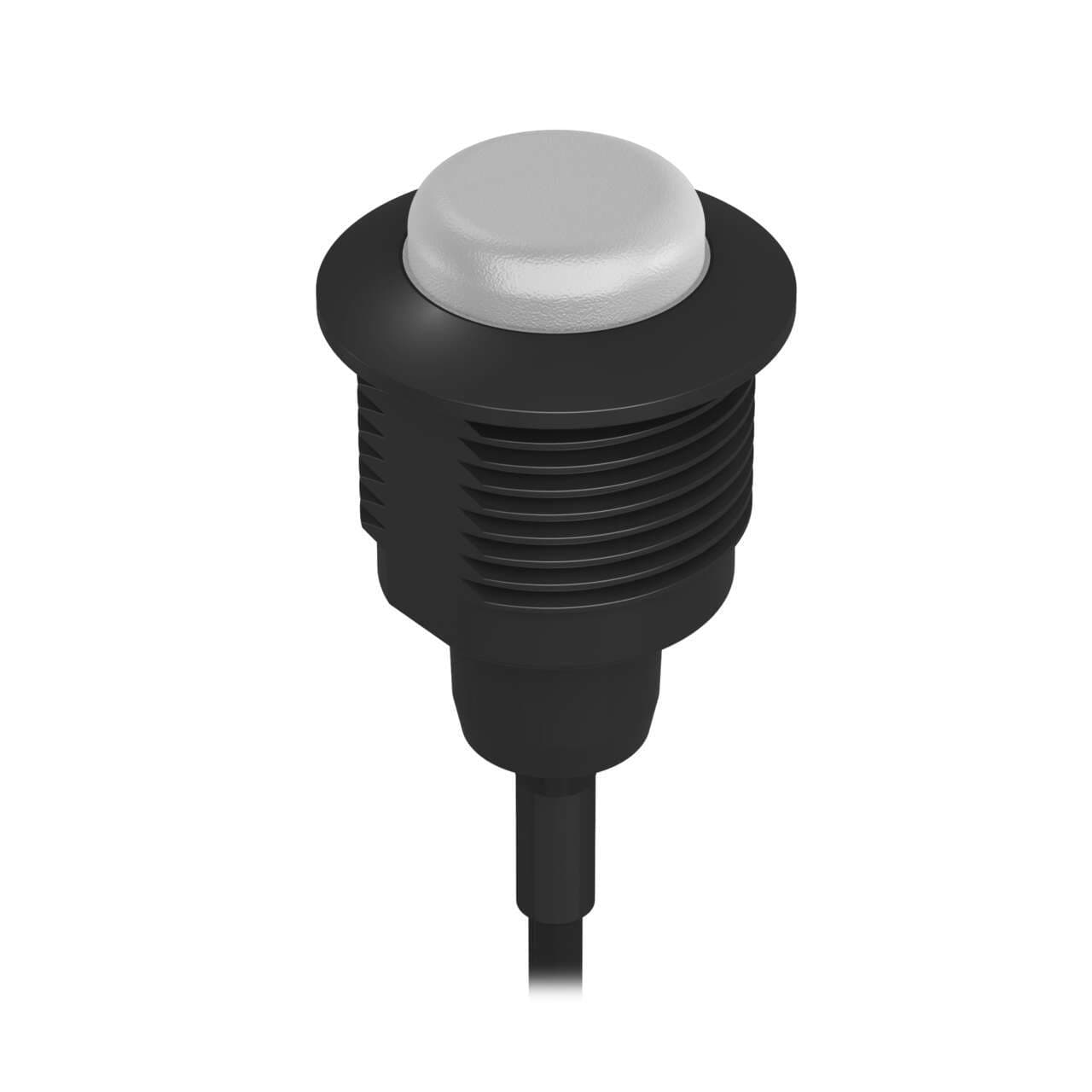

S22 EZ Light - 22 mm - IP67; Three Color: Green Red Yellow; 10-30 V dc NPN Input; 150 mm (6 in) 4-pin M12 Pigtail QD

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Multi-Color Device
    Single Color On
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Housing Color
    Black
  • Feature: Washdown Rated
    Yes
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Primary Window Material
    Polycarbonate Diffused
  • Environmental Rating
    IP67; IP69
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Physical Dimensions (LxWxH or DxH mm)
    26.0 x 35.3
  • Max Input Response Time (ms)
    1
  • Input Type
    NPN
  • Max Current Color (mA)
    25
  • Color 3 - Wavelength/Color Temp/Coordinates
    590 nm
  • Number of Input Pins/Conductors
    4
  • Supply Voltage
    10-30 V dc
  • Lumens Color 3
    0.80
  • Color Option 3
    Yellow
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Color Option 2
    Red
  • Lumens Color 2
    1.1
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Color Technology
    Standard LED
  • Color Option 1
    Green
  • Lumens Color 1
    4.1
  • Connection
    Pigtail QD
  • Product Size (mm)
    22
  • Number of Colors / Segments
    3
  • Indication
    Yes
  • Primary Housing Material
    Polycarbonate
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power
    DC
  • Power Source
    DC
  • Mounting Thread
    M22 x 1.5
  • Housing Style
    Barrel Mount - Flat Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LGRYNQP on Powermatic Associates is $57.00. Order now.

About the product

Banner Engineering S22LGRYNQP is a pilot light from the EZ-LIGHT series featuring a 3-color G/R/Y color pattern LED illumination. This LED pilot light indicator is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a 22mm indicator diameter and is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The S22LGRYNQP is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, making it suitable for harsh environments. The shape is characterized by a flat window and a threaded cylindrical barrel, with a current consumption of 25mA. It also features 3 x digital inputs (10-30Vdc; NPN) for color control.
