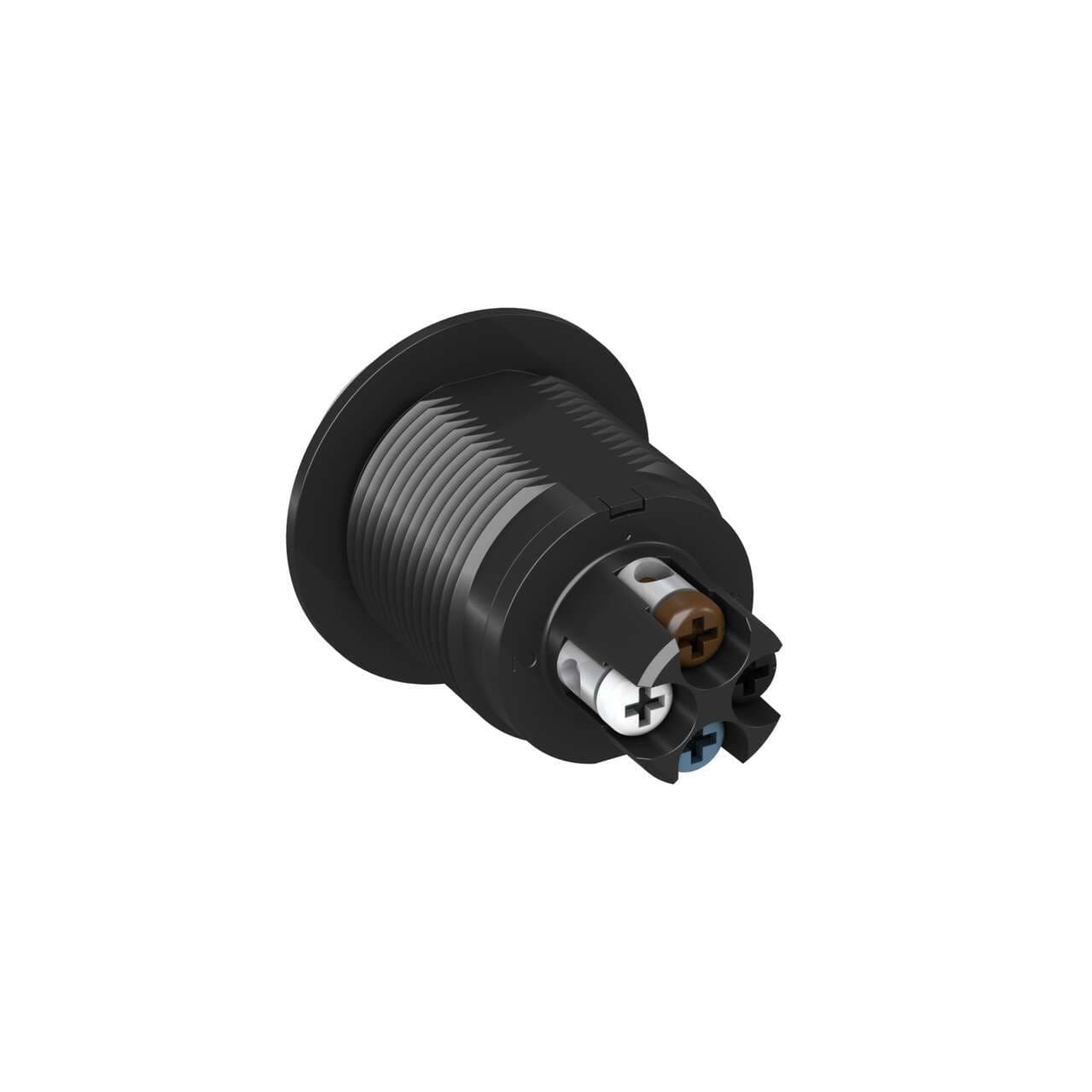

S22LGRYPT Banner Pick-to-Light Sensors

Name: S22LGRYPT
Brand: Banner
Price: 50 USD
Availability: BackOrder

Part#:S22LGRYPT

Alt. Part#:86111

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

S22 EZ Light - 22 mm - IP67; Three Color: Green Red Yellow; 10-30 V dc PNP Input; 4-screw Terminal Wiring

Product Details

Weight
63.50288 g
Country Of Origin
CN
Pro-Editor Compatible (Discrete)
No
Multi-Color Device
Single Color On
Feature: Quick Disconnect
No
Feature: Hazardous Area
No
Modbus RTU
No
Feature: Washdown Rated
Yes
Wireless
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Audible
No
Primary Housing Color
Black
Primary Window Material
Polycarbonate Diffused
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Environmental Rating
IP67; IP69
Physical Dimensions (LxWxH or DxH mm)
26.0 x 34.2
Supply Voltage
10-30 V dc

Max Input Response Time (ms)

Input Type

PNP

Number of Input Pins/Conductors

Max Current Color (mA)

Lumens Color 3

0.80

Color 3 - Wavelength/Color Temp/Coordinates

590 nm

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Color Option 3

Yellow

Lumens Color 2

1.1

Connection

Terminal

Color Option 2

Red

Color 1 - Wavelength/Color Temp/Coordinates

525 nm

Lumens Color 1

4.1

Product Size (mm)

Color Technology

Standard LED

Animation Option 1

Solid On

Color Option 1

Green

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Indication

Yes

Number of Colors / Segments

Mounting Thread

M22 x 1.5

Housing Style

Barrel Mount - Flat Window

Primary Housing Material

Polycarbonate

Power Source

Power

Cable Length (m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LGRYPT on Powermatic Associates is $50.00. Order now.

About the product

Banner Engineering S22LGRYPT is a pilot light from the EZ-LIGHT series, featuring a 3-color G/R/Y color pattern LED illumination. This LED pilot light indicator is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base. It has a 22mm indicator diameter and utilizes a screw-clamp terminal connection. The housing color is black, and it operates on a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nominal). The S22LGRYPT is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It features a flat window and a threaded cylindrical barrel shape, with a current consumption of 25mA. Additionally, it includes 3 x digital inputs (10-30Vdc; PNP) for color control.

S22LGRYPT Related Documents

171439.pdf
