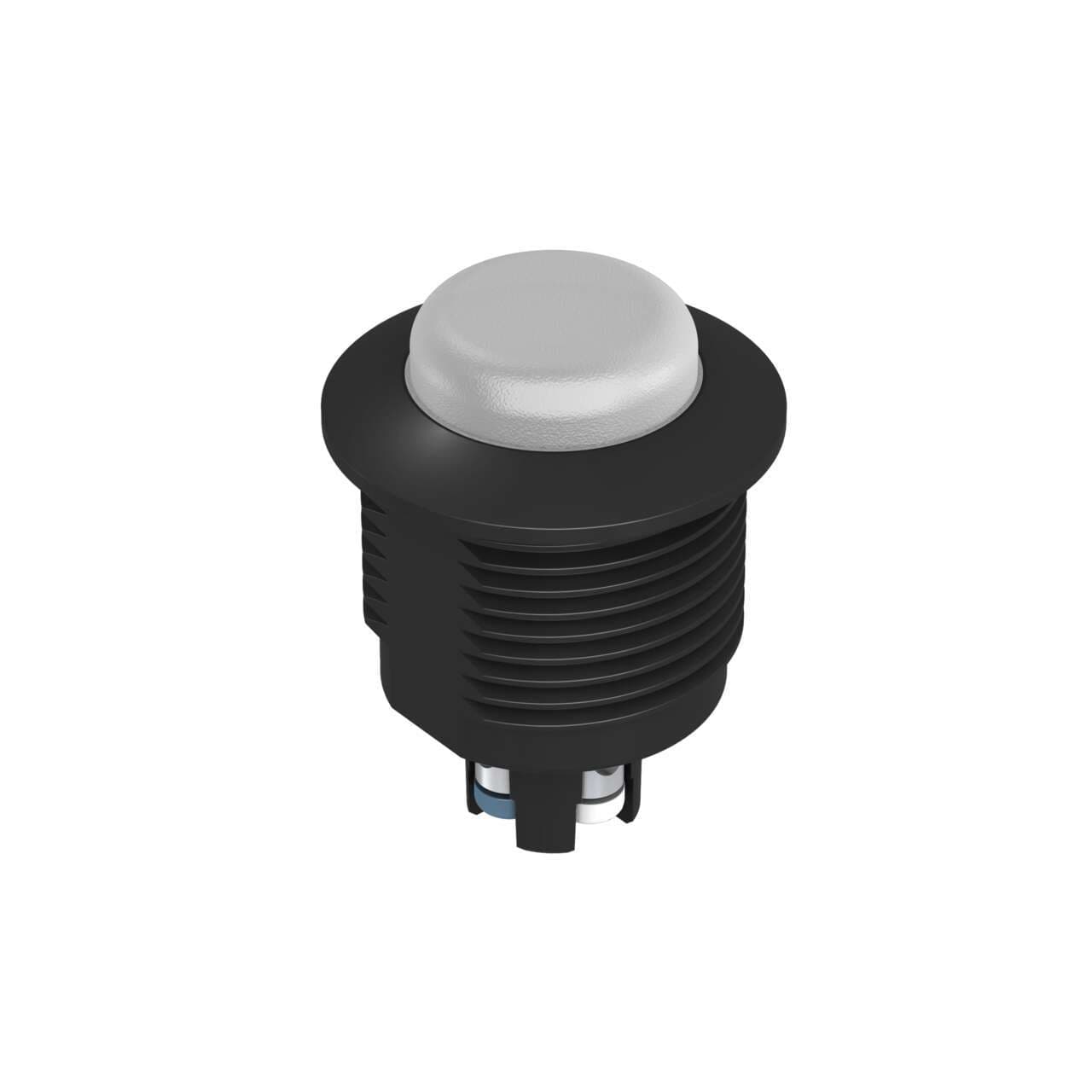

S22LGYWPT Banner Pick-to-Light Sensors
Part#:S22LGYWPT
Alt. Part#:807948
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 EZ Light - 22 mm - IP67; 3 Color: Green Yellow White; 10-30 V dc PNP Input; 4-screw Terminal Wiring
Product Details
- Weight 63.50288 g
- Country Of Origin CN
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 571 nm
- Number of Input Pins/Conductors 4
- IO Link No
- Power Source DC
- Animation Option 1 Solid On
- Color Option 3 White
- Physical Dimensions (LxWxH or DxH mm) 26.0 x 34.2
- Feature: Washdown Rated Yes
- Primary Housing Material Polycarbonate
- Connection Terminal
- Supply Voltage 10-30 V dc
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Mounting Thread M22 x 1.5
- Lumens Color 2 2.5
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Number of Colors / Segments 3
- Color 3 - Wavelength/Color Temp/Coordinates 6000K
- Max Op. Temperature (°C) 50
- Wireless No
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 527 nm
- Input Type PNP
- Feature: Audible No
- Housing Style Barrel Mount - Flat Window
- Color Option 2 Yellow
- Color Option 1 Green
- Environmental Rating IP67; IP69
- Power DC
- Color Technology Standard LED
- Max Current Color (mA) 25
- Lumens Color 3 4.0
- Feature: Quick Disconnect No
- Product Size (mm) 22
- Lumens Color 1 1.9
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Primary Housing Color Black
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
- Primary Window Material Polycarbonate Diffused
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LGYWPT on Powermatic Associates is $50.00. Order now.
About the product

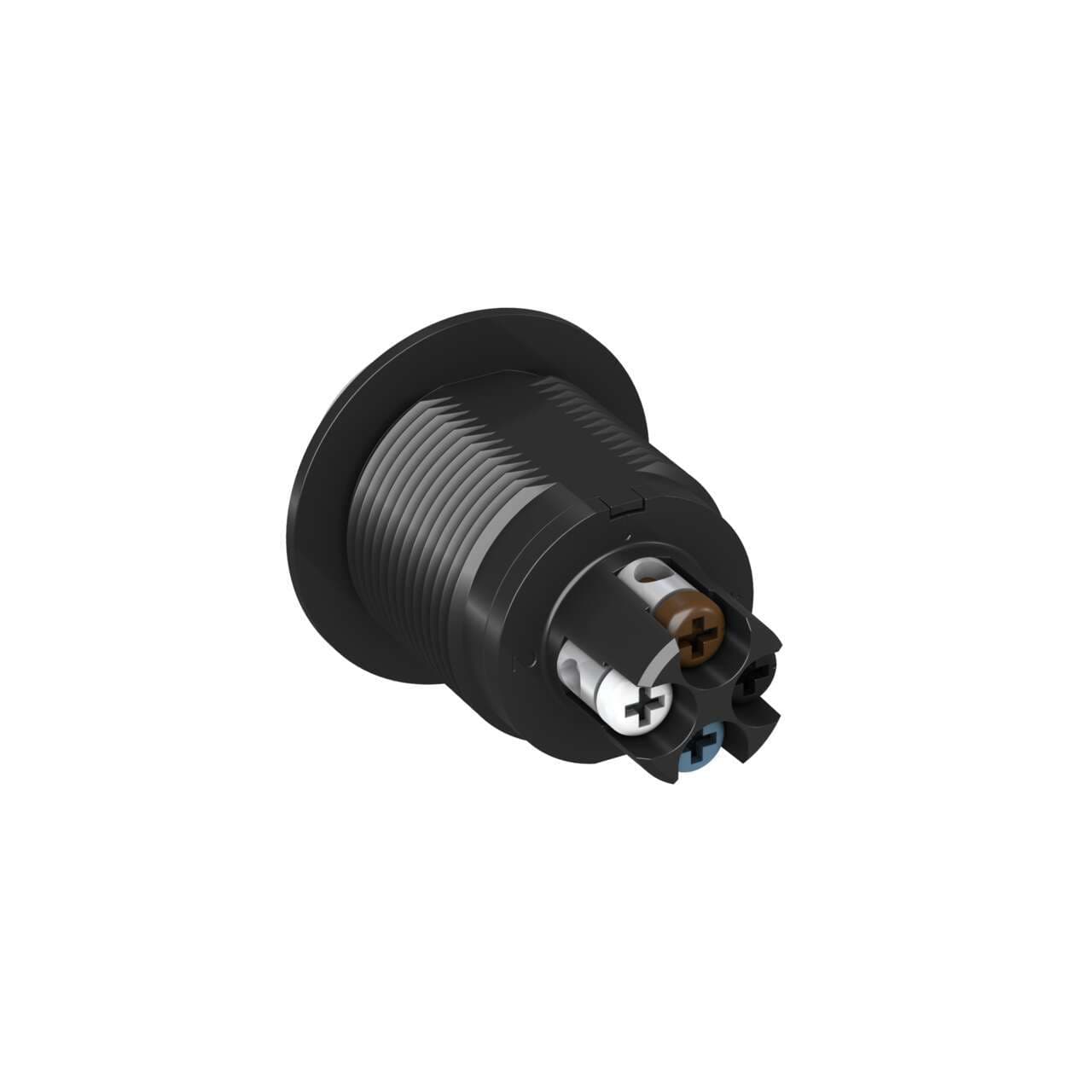

Banner Engineering S22LGYWPT is a pilot light from the EZ-LIGHT series featuring a 3-color G/Y/W (Green/Yellow/White) color pattern LED illumination. This LED pilot light indicator is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a 22mm indicator diameter and utilizes a screw-clamp terminal connection for secure installation. The housing is black, and it operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. The S22LGYWPT is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, making it suitable for challenging environments. The shape of the part is characterized by a flat window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 3 digital inputs (10-30Vdc; PNP) for color control.
