SLPR14-1110AP8 Banner Electronic Components


Part#:SLPR14-1110AP8
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

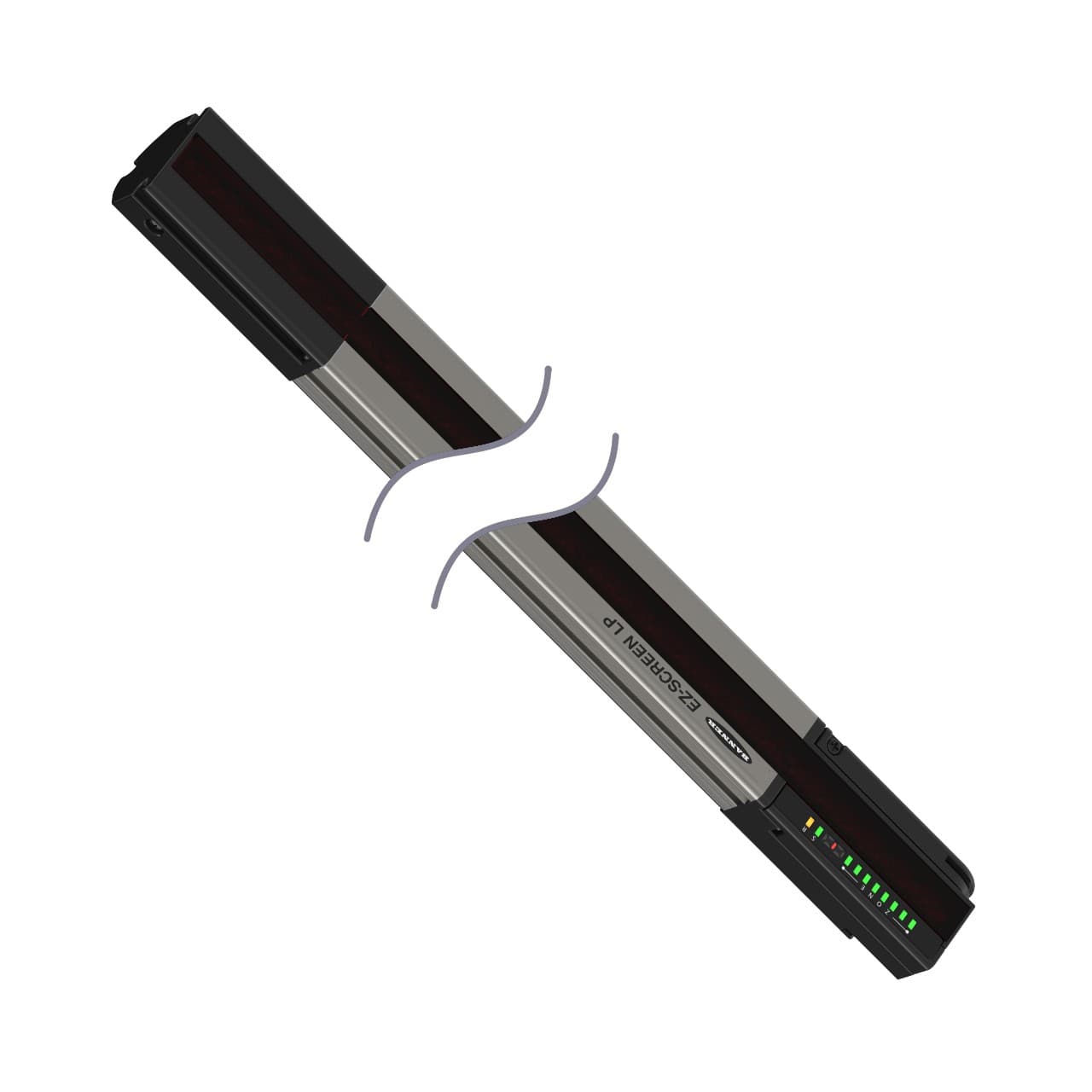

SLPR14-1110AP8 EZ-SCREEN Low Profile RECEIVER, Resolution: 14 mm; Response (Tr): 28.5 ms; Beams: 111, Range: 0.1 to 7 m ( 4 in. to 23 ft.); Height: 1110 mm (43.7 in.), Connection: 300 mm pigtail; 8-pin M12 QD; Housing: Anodized Aluminum
Product Details
- Operating Temperature 0 to +55 deg. C; RH 95%
- Safety Level Type 4
- Scan Code Selectable
- Feature: End-to-End Sensing Yes
- External Monitoring Device 1 or 2 Channel
- low-profile Yes
- Resolution (mm) 14
- Short Protection Yes
- Defined Area Height (mm) 1110
- Recovery Time 33-220 / 109-800
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Connector Type M12 Pigtail (Yellow)
- Fixed Blanking Yes
- Shock 10g at 16ms (6000 cycles)
- Feature: Integral Muting No
- Operating Voltage 24 V dc +/- 15%
- SIL Rating SIL3; CL3
- Test Input No
- Overall Length (mm) 1110
- Number of Pins (Receiver/Emitter) 8
- Vibration 10-55 Hz at 0.35 mm
- Housing Finish Clear Anodized
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Fault Output Yes
- Feature: ESD Safe No
- Primary Housing Material Aluminum
- IP Rating IP65
- Reduced Resolution Yes
- System Type Receiver
- Dimensions WxD (mm) 28 x 26
- PL Rating Ple
- Auxiliary Output Yes
- Operating Distance (m) 0.1 - 7
- Response Time 28.5
- Supply Current 150 mA max.
- Trip/Latch Output Selectable
- OSSD Rating 24 V dc at 0.5 A each
