SLPR14-830NP8 Banner Safety Light Curtains
Part#:SLPR14-830NP8
Alt. Part#:84188
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPR14-830NP8 EZS LP RCVR14 mm x 830 mm PIGTAIL
Product Details
- Weight 1655.6108 g
- Country Of Origin US
- Safety Level Type 4
- Operating Distance (m) 0.1 - 7
- Response Time 22.5
- Auxiliary Output Yes
- Overall Length (mm) 830
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- Trip/Latch Output Selectable
- low-profile Yes
- IP Rating IP65
- PL Rating Ple
- Housing Material Aluminum; Zinc; Acrylic
- External Monitoring Device 1 or 2 Channel
- Recovery Time 33-220 / 109-800
- Scan Code Selectable
- Test Input No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- Shock 10g at 16ms (6000 cycles)
- System Type Receiver
- Feature: ESD Safe Yes
- Dimensions WxD (mm) 28 x 26
- SIL Rating SIL3; CL3
- Vibration 10-55 Hz at 0.35 mm
- Connector Type M12 Pigtail (Yellow)
- Fixed Blanking Yes
- Reduced Resolution Yes
- Defined Area Height (mm) 830
- Operating Voltage 24 V dc +/- 15%
- Primary Housing Material Aluminum
- Housing Finish Nickel Plated
- Resolution (mm) 14
- OSSD Rating 24 V dc at 0.5 A each
- Fault Output Yes
- Supply Current 150 mA max.
- Feature: Integral Muting No
- Electrical Safety Class III
- Feature: End-to-End Sensing Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPR14-830NP8 on Powermatic Associates is $2,090.00. Order now.
About the product

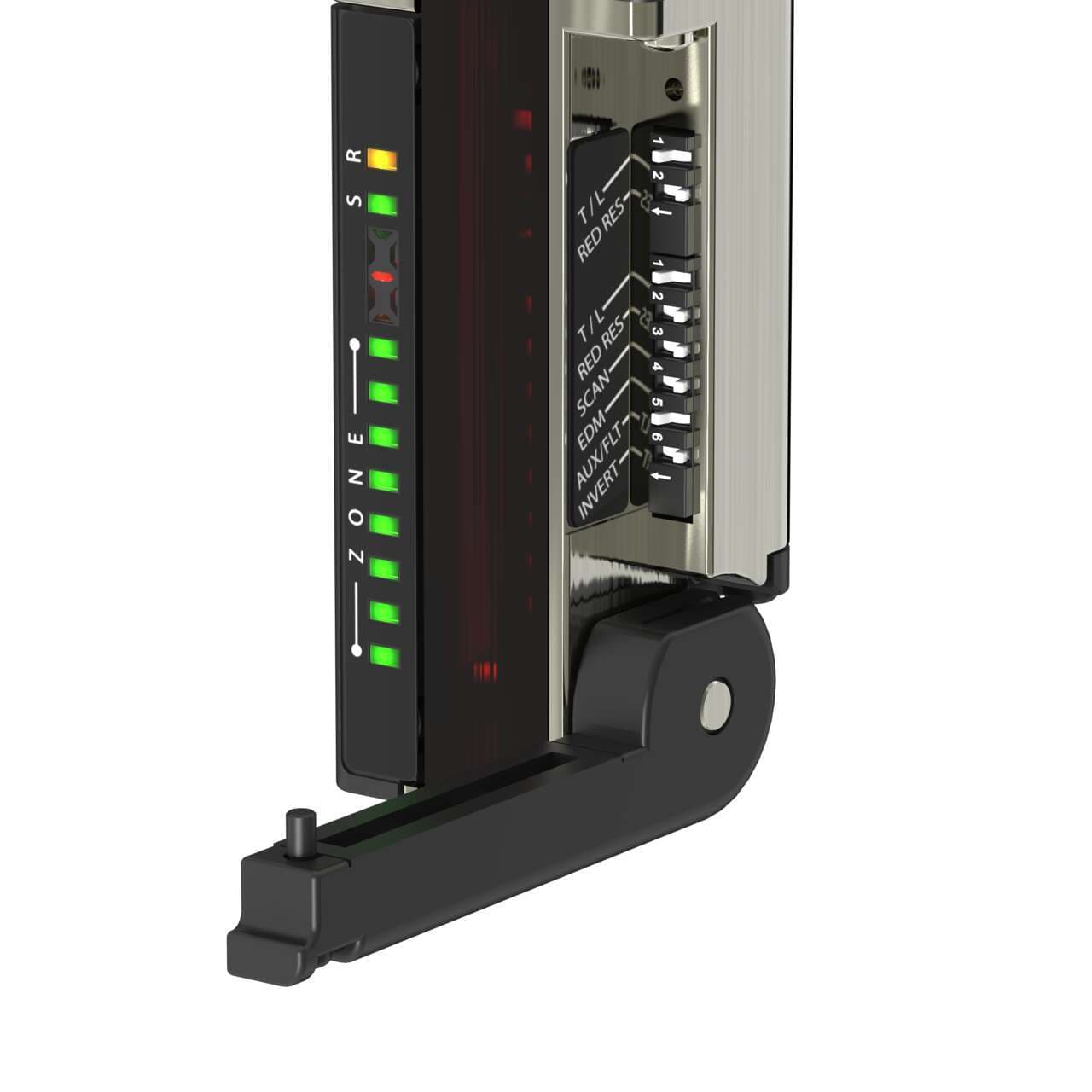

Banner Engineering SLPR14-830NP8 is a safety light curtain from the LP Low-Profile series designed with an ESD-safe, nickel-plated aluminum housing, acrylic lens, and zinc end cap. This part, functioning as a receiver alone, is pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector. It features a protective height of 830mm and comes in a silver housing. The SLPR14-830NP8 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection. The dimensions include a net width of 28mm, a net height of 829mm, and a net depth of 26mm. It offers a 14mm beam spacing/pitch for finger detection, a sensing distance ranging from 10cm to 7m, and a response time of 22.5ms. The device includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for FAULT output, one digital input (10Vdc-30Vdc; 30mA) for EDM input, and one digital input (10Vdc-30Vdc) for RESET input.
