SLPR14-270AP8 Banner Electronic Components

Name: SLPR14-270AP8
Brand: Banner

Part#:SLPR14-270AP8

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

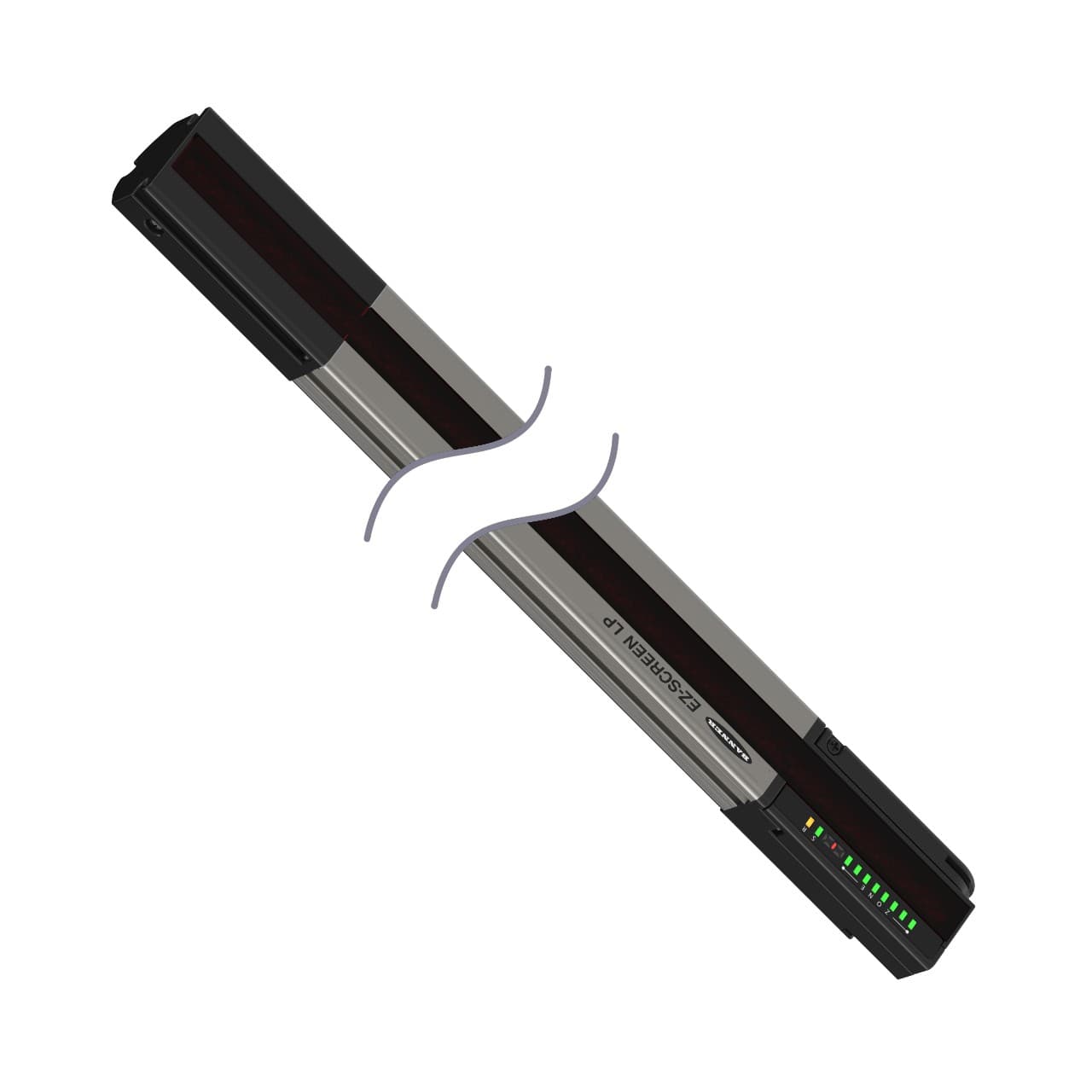

SLPR14-270AP8 EZ-SCREEN Low Profile RECEIVER, Resolution: 14 mm; Response (Tr): 10.5 ms; Beams: 27, Range: 0.1 to 7 m ( 4in. to 23 ft.); Height: 270 mm (10.6 in.), Connection: 300 mm pigtail; 8-pin M12 QD; Housing: Anodized Aluminum

Product Details

External Monitoring Device
1 or 2 Channel
Housing Finish
Clear Anodized
Reduced Resolution
Yes
Auxiliary Output
Yes
Overall Length (mm)
270
IP Rating
IP65
Response Time
10.5
Fault Output
Yes
low-profile
Yes
Fixed Blanking
Yes
Resolution (mm)
14
Vibration
10-55 Hz at 0.35 mm
Connector Type
M12 Pigtail (Yellow)
Operating Distance (m)
0.1 - 7
SIL Rating
SIL3; CL3
Housing Material
Aluminum; Zinc; Acrylic
Dimensions WxD (mm)
28 x 26
Number of Pins (Receiver/Emitter)
8
Scan Code
Selectable
Test Input
No

Effective Aperture Angle

Type 4 Per IEC 61496-2

PL Rating

Ple

Shock

10g at 16ms (6000 cycles)

Feature: End-to-End Sensing

Yes

Defined Area Height (mm)

270

Operating Temperature

0 to +55 deg. C; RH 95%

System Type

Receiver

Trip/Latch Output

Selectable

Safety Level

Type 4

Recovery Time

33-220 / 109-800

Short Protection

Yes

Supply Current

150 mA max.

Primary Housing Material

Aluminum

Operating Voltage

24 V dc +/- 15%

Electrical Safety Class

III

OSSD Rating

24 V dc at 0.5 A each

Feature: Integral Muting

Feature: ESD Safe

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLPR14-270AP8 Related Documents

EZ-SCREEN LP, SLP.... 270mm-1630955508110.stp EZ-SCREEN LP, SLP.... 270mm-1630955508114.pdf
