SLPR25-270AP8 Banner Electronic Components

Name: SLPR25-270AP8
Brand: Banner

Part#:SLPR25-270AP8

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

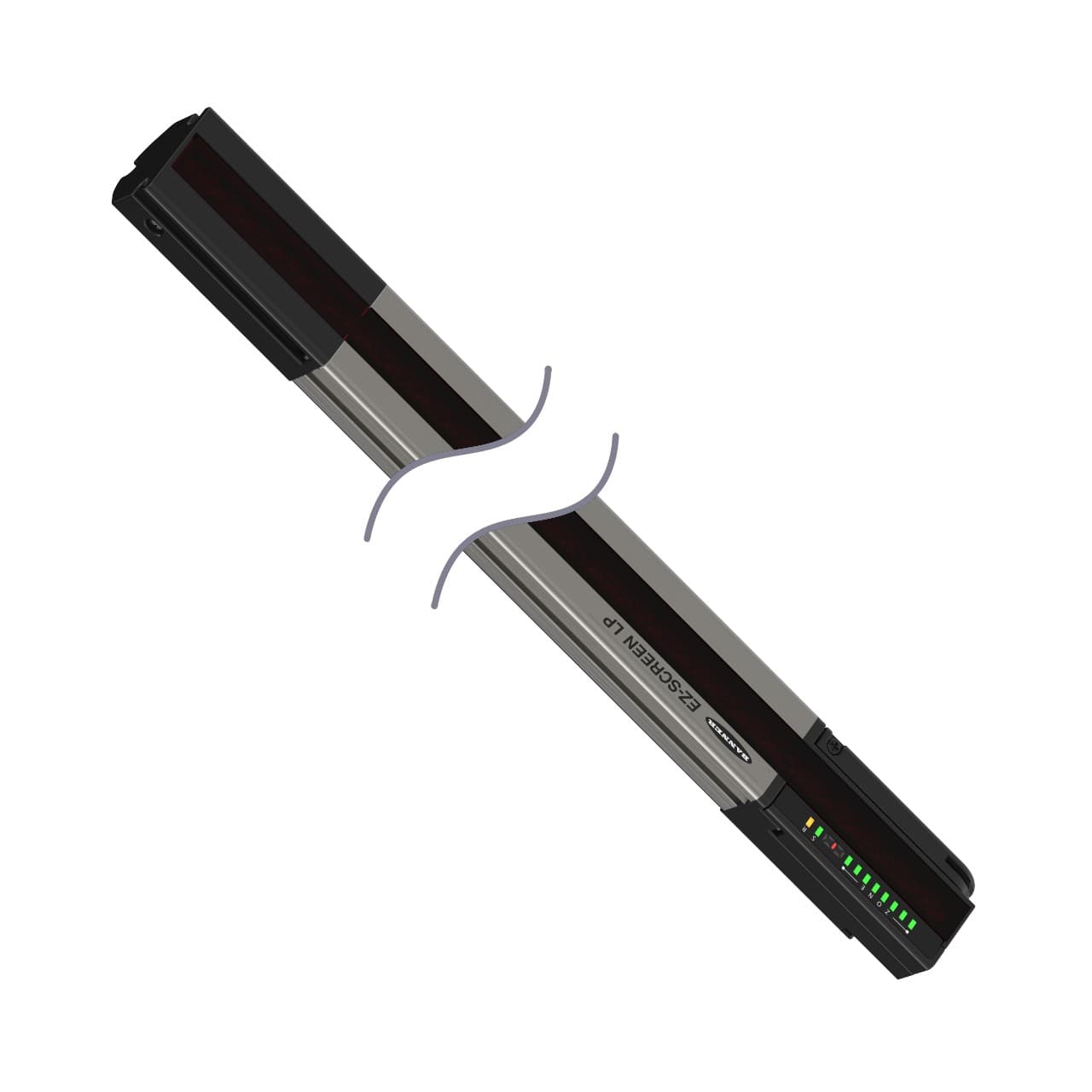

SLPR25-270AP8 EZ-SCREEN Low Profile RECEIVER, Resolution: 25 mm; Response (Tr): 8 ms; Beams: 14, Range: 0.1 to 7 m ( 4in. to 23 ft.); Height: 270 mm (10.6 in.), Connection: 300 mm pigtail, 8-pin M12 QD; Housing: Anodized Aluminum

Product Details

low-profile
Yes
Overall Length (mm)
270
PL Rating
Ple
Short Protection
Yes
Supply Current
150 mA max.
Primary Housing Material
Aluminum
Defined Area Height (mm)
270
Operating Temperature
0 to +55 deg. C; RH 95%
Scan Code
Selectable
Shock
10g at 16ms (6000 cycles)
Connector Type
M12 Pigtail (Yellow)
IP Rating
IP65
Resolution (mm)
25
Vibration
10-55 Hz at 0.35 mm
Test Input
No
Effective Aperture Angle
Type 4 Per IEC 61496-2
Housing Finish
Clear Anodized
Operating Distance (m)
0.1 - 7
Electrical Safety Class
III
OSSD Rating
24 V dc at 0.5 A each

Feature: End-to-End Sensing

Yes

Dimensions WxD (mm)

28 x 26

External Monitoring Device

1 or 2 Channel

Recovery Time

25-152 / 81-495

System Type

Receiver

Trip/Latch Output

Selectable

Number of Pins (Receiver/Emitter)

Response Time

Housing Material

Aluminum; Zinc; Acrylic

Feature: Integral Muting

Safety Level

Type 4

Fixed Blanking

Yes

Operating Voltage

24 V dc +/- 15%

SIL Rating

SIL3; CL3

Fault Output

Yes

Reduced Resolution

Yes

Auxiliary Output

Yes

Feature: ESD Safe

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLPR25-270AP8 Related Documents

EZ-SCREEN LP, SLP.... 270mm-1630955301517.stp EZ-SCREEN LP, SLP.... 270mm-1630955301552.pdf
