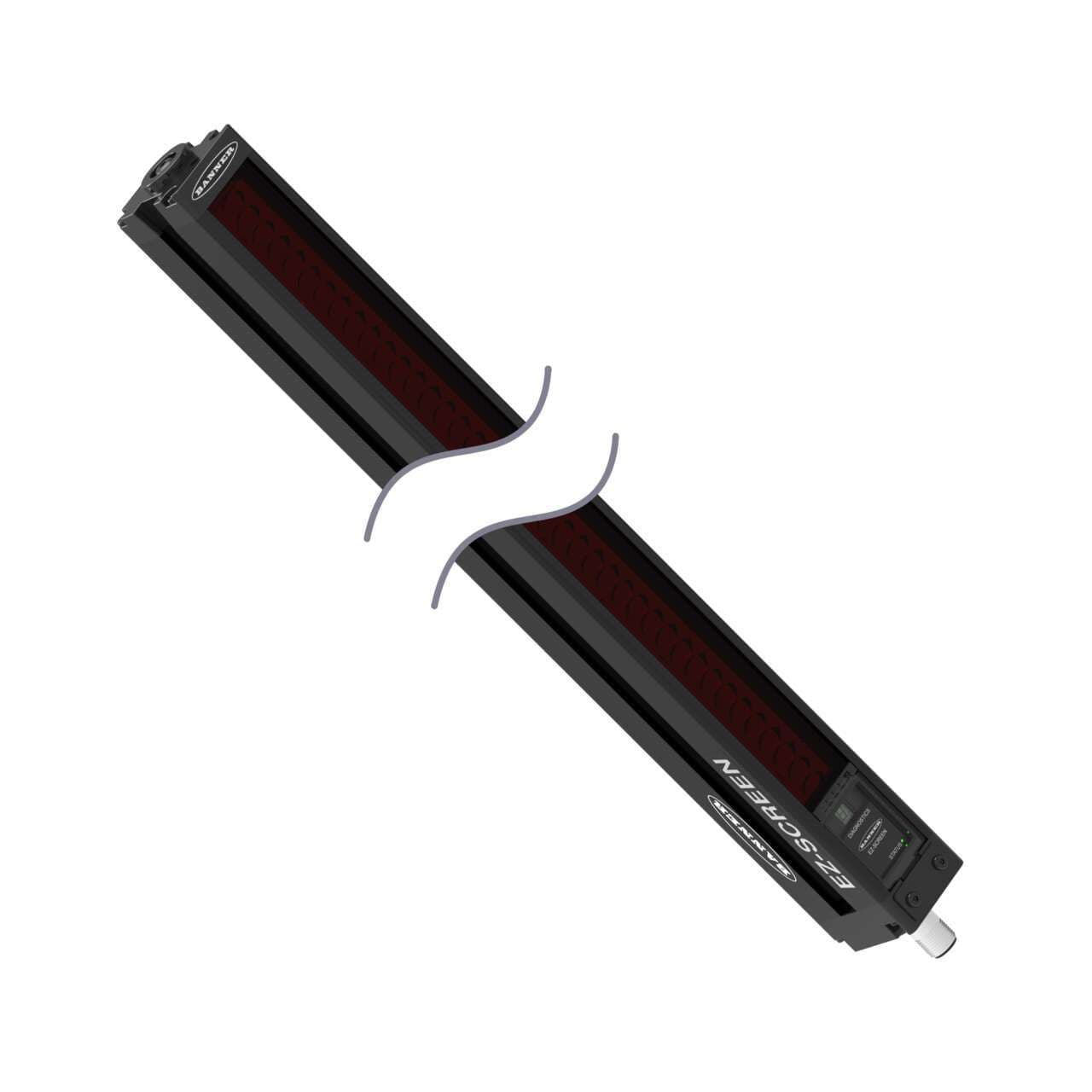

SLSCE30-1200Q5NT Banner Safety Light Curtains
Part#:SLSCE30-1200Q5NT
Alt. Part#:34378
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Cascade Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Length: 1270 mm (50.0 in); Connection: 5-pin M12 Connector; No test Input
Product Details
- Weight 4354.4832 g
- Country Of Origin MX
- Feature: Integral Muting No
- Feature: End-to-End Sensing No
- Feature: ESD Safe No
- Feature: Cascade Yes
- Test Input No
- Trip/Latch Output N/A
- Supply Current 100 mA max.
- OSSD Rating N/A
- Fault Output No
- Housing Material Aluminum; Zinc; Acrylic
- Vibration 10-55 Hz at 0.35 mm
- Auxiliary Output No
- Response Time 23
- System Type Emitter
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Short Protection Yes
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- Reduced Resolution No
- Recovery Time 25-152 / 81-495
- Resolution (mm) 30
- PL Rating Ple
- Operating Voltage 24 V dc +/- 15%
- Operating Temperature 0 to +55 deg. C; RH 95%
- Number of Pins (Receiver/Emitter) 5
- Operating Distance (m) 0.1 - 18
- IP Rating IP65
- Fixed Blanking No
- Housing Finish Yellow Polyester
- External Monitoring Device No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Dimensions WxD (mm) 36 x 45.2
- Overall Length (mm) 1270
- Defined Area Height (mm) 1200
- Connector Type M12
- Safety Level Type 4
- low-profile No
- Primary Housing Material Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCE30-1200Q5NT on Powermatic Associates is $1,834.00. Order now.
About the product
Banner Engineering SLSCE30-1200Q5NT is a safety light curtain designed for hand detection with a resolution of 30mm, falling within the SLS series 14-30mm safety light curtains. This cascadable design features an aluminium housing with an acrylic lens and die-cast zinc end caps. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The protective height is 1200mm, housed in a yellow-colored casing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The device offers an IP65 degree of protection, with dimensions including a net width of 36mm, a net height of 1270mm, and a net depth of 46mm. The light curtain has a 30mm beam spacing/pitch and offers a sensing distance between 10cm and 18m. It emits infrared (IR) light with a wavelength of 850 nm. The device includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital input (10Vdc-30Vdc) for remote test input, with a response time of 23ms / 0.023 s.
SLSCE30-1200Q5NT Related Documents
Similar products from: Banner Safety Light Curtains
Manufacturer warranty
SLSCE30-1200Q5NT Banner
$1,834.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$1,834.00
$1,834.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SLSCE30-1200Q5NT with other Safety Light Curtains products
Weight
Country Of Origin
Feature: Integral Muting
Feature: End-to-End Sensi...
Feature: ESD Safe
Feature: Cascade
Test Input
Trip/Latch Output
Supply Current
OSSD Rating
Selected product
SLSCE30-1200Q5NT
Banner
EZ-SCREEN Cascade Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); ...
Weight4354.4832 g
Country Of OriginMX
Feature: Integral MutingNo
Feature: End-to-End SensingNo
Feature: ESD SafeNo
Feature: CascadeYes
Test InputNo
Trip/Latch OutputN/A
Supply Current100 mA max.
OSSD RatingN/A
SLSP30-1200Q88
Banner
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Len...
Weight7892.5008 g
Country Of OriginMX
Feature: Integral Muting-
Feature: End-to-End Sensing-
Feature: ESD Safe-
Feature: Cascade-
Test Input-
Trip/Latch Output-
Supply Current-
OSSD Rating-
SLSP14-450P88
Banner
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Lengt...
Weight562.45408 g
Country Of OriginMX
Feature: Integral Muting-
Feature: End-to-End Sensing-
Feature: ESD Safe-
Feature: Cascade-
Test Input-
Trip/Latch Output-
Supply Current-
OSSD Rating-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SLSCE30-1200Q5NT?
Purchase the SLSCE30-1200Q5NT from Powermatic Associates at the price of $1,834.00. Order today.
Out if stock but available for backorder.
EZ-SCREEN Cascade Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Length: 1270 mm (50.0 in); Connection: 5-pin M12 Connector; No test Input
