SLSCP30-1800Q55NT Banner Safety Light Curtains

SLSCP30-1800Q55NT on Powermatic Associates
Banner
  • SLSCP30-1800Q55NT
  • SLSCP30-1800Q55NT

Part#:SLSCP30-1800Q55NT

Alt. Part#:93534

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Cascade Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1800 mm (70.9 in); Housing Length: 1869 mm (73.6 in); Connection: 5-pin M12 Connectors; Emitter: No test Input

Product Details

  • Weight
    10659.412 g
  • Country Of Origin
    MX
  • Dimensions WxD (mm)
    36 x 45.2
  • PL Rating
    Ple
  • Response Time
    32
  • Housing Material
    Aluminum; PBT; Acrylic
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Recovery Time
    25-152 / 81-495
  • Electrical Safety Class
    III
  • Test Input
    Yes
  • Safety Level
    Type 4
  • Resolution (mm)
    30
  • Supply Current
    275 mA max.
  • Overall Length (mm)
    1869
  • Number of Pins (Receiver/Emitter)
    5,5
  • IP Rating
    IP65
  • Vibration
    10-55 Hz at 0.35 mm
  • Feature: End-to-End Sensing
    No
  • Primary Housing Material
    Aluminum
  • Operating Voltage
    24 V dc +/- 15%
  • Scan Code
    Selectable
  • Feature: Cascade
    Yes
  • System Type
    Emitter/Receiver Pair
  • Feature: ESD Safe
    No
  • Connector Type
    M12 Pigtail (Yellow)
  • Housing Finish
    Yellow Polyester
  • SIL Rating
    SIL3; CL3
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    Yes
  • Feature: Integral Muting
    No
  • Defined Area Height (mm)
    1800
  • Reduced Resolution
    Yes
  • Fixed Blanking
    Yes
  • Operating Distance (m)
    0.1 - 18
  • Short Protection
    Yes
  • Trip/Latch Output
    Selectable
  • Auxiliary Output
    Yes
  • External Monitoring Device
    1 or 2 Channel
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Shock
    10g at 16ms (6000 cycles)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCP30-1800Q55NT on Powermatic Associates is $5,813.00. Order now.


About the product

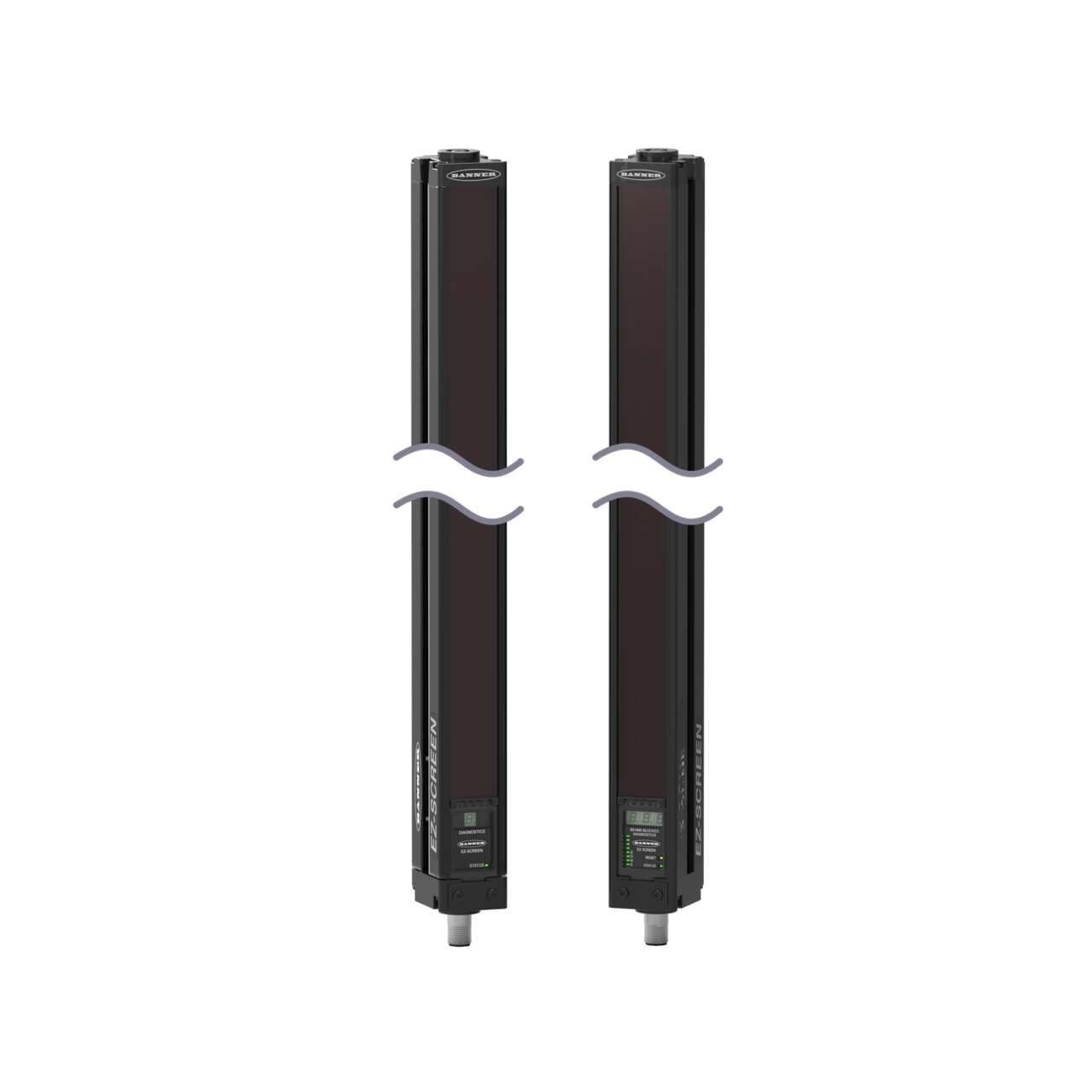

Banner Engineering SLSCP30-1800Q55NT is a safety light curtain from the SLS series designed with a cascadable feature. This product consists of an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The SLSCP30-1800Q55NT offers a protective height of 1800mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. This safety light curtain is rated with an IP65 degree of protection and has dimensions of 36mm in width, 1869mm in height, and 46mm in depth. It features a 30mm beam spacing/pitch for hand detection, a sensing distance ranging from 10cm to 18m, and emits infrared light with a wavelength of 850 nm. The device includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, 1 x digital input (10Vdc-30Vdc) for EDM input, and 1 x digital input (10Vdc-30Vdc) for RESET input. Its response time is 32ms / 0.032 s.
