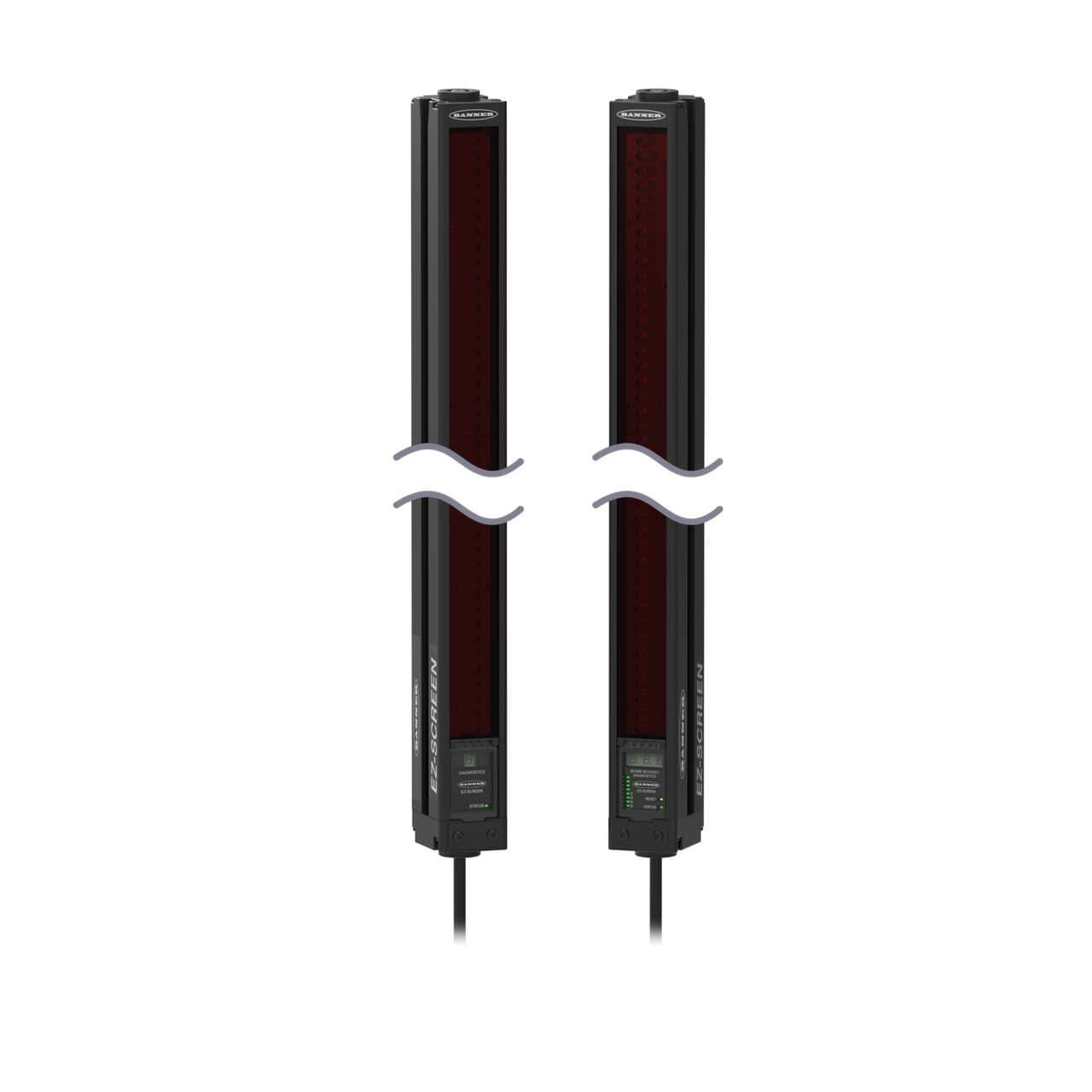

SLSCP14-1350P44NT Banner Safety Light Curtains

Banner Engineering SLSCP14-1350P44NT is a safety light curtain from the SLS series designed with a cascadable function. This part features an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. It comes pre-wired with a 300mm pigtail terminated with a 4-pin Euro-style M12 connector. The protective height is 1350mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The degree of protection offered is IP65. The dimensions include a net width of 36mm, a net height of 1420mm, and a net depth of 46mm. The light curtain has a 14mm beam spacing/pitch for finger detection, a sensing distance ranging from 10cm to 6m, and emits infrared light with a wavelength of 850 nm. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, one digital input (10Vdc-30Vdc) for EDM input, and one digital input (10Vdc-30Vdc) for RESET input. The response time is 43ms / 0.043 s.
