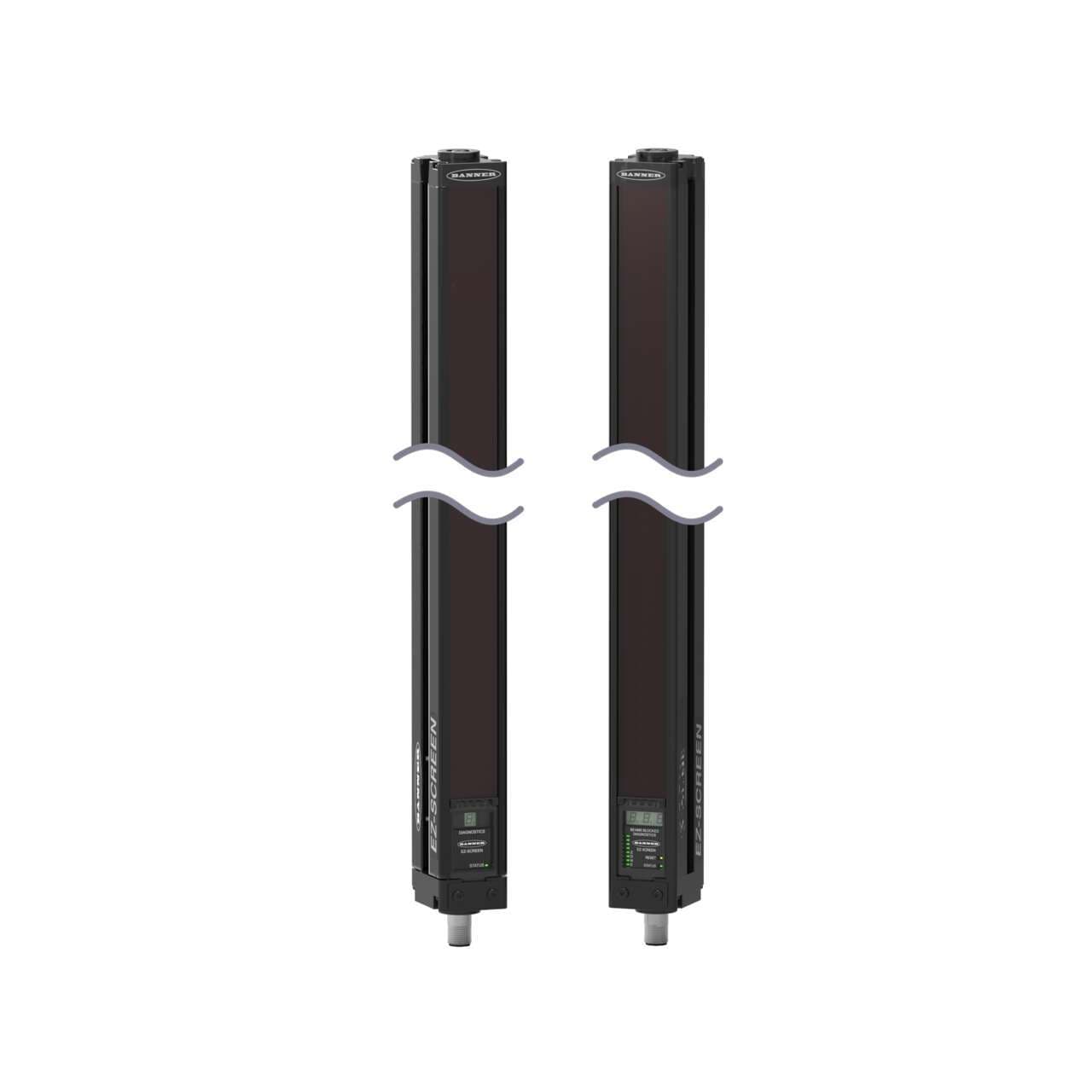

SLSCP30-1500Q55NT Banner Safety Light Curtains
Part#:SLSCP30-1500Q55NT
Alt. Part#:95041
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Cascade Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1500 mm (59.1 in); Housing Length: 1569 mm (61.8 in); Connection: 5-pin M12 Connectors; Emitter: No test Input
Product Details
- Weight 9434.7136 g
- Country Of Origin MX
- Connector Type M12
- Recovery Time 25-152 / 81-495
- Short Protection Yes
- Feature: Cascade Yes
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- System Type Emitter/Receiver Pair
- Feature: Integral Muting No
- Safety Level Type 4
- Resolution (mm) 30
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Overall Length (mm) 1569
- Operating Distance (m) 0.1 - 18
- Electrical Safety Class III
- Trip/Latch Output Selectable
- Defined Area Height (mm) 1500
- Number of Pins (Receiver/Emitter) 5,5
- Shock 10g at 16ms (6000 cycles)
- Supply Current 275 mA max.
- Housing Finish Yellow Polyester
- Response Time 27
- Test Input Yes
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- Scan Code Selectable
- OSSD Rating 24 V dc at 0.5 A each
- External Monitoring Device 1 or 2 Channel
- Reduced Resolution Yes
- Housing Material Aluminum; PBT; Acrylic
- Fixed Blanking Yes
- PL Rating Ple
- Auxiliary Output Yes
- Feature: End-to-End Sensing No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- IP Rating IP65
- SIL Rating SIL3; CL3
- Fault Output Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCP30-1500Q55NT on Powermatic Associates is $4,946.00. Order now.
About the product
Banner Engineering SLSCP30-1500Q55NT is a safety light curtain from the SLS series, designed with a cascadable feature. This part consists of an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The device offers a protective height of 1500mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it has dimensions of 36mm in width, 1569mm in height, and 46mm in depth. The light curtain features a 30mm beam spacing/pitch, two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, and a sensing distance ranging from 10cm to 18m. The light color is infrared (IR) with a wavelength of 850 nm, and it has a resolution of 30mm for hand detection. Additionally, it includes one digital input (10Vdc-30Vdc) for EDM input, one digital input (10Vdc-30Vdc) for RESET input, and a response time of 27ms / 0.027 s.
