SLSCP30-900P44NT Banner Safety Light Curtains
Part#:SLSCP30-900P44NT
Alt. Part#:11925
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Cascade Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 900 mm (35.4 in); Housing Length: 971 mm (38.2 in); Connection: 4-pin M12 Pigtail Connectors; Emitter: No test Input
Product Details
- Weight 6577.084 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Housing Finish Yellow Polyester
- Scan Code Selectable
- Auxiliary Output Yes
- Dimensions WxD (mm) 36 x 45.2
- Number of Pins (Receiver/Emitter) 4
- Resolution (mm) 30
- Feature: ESD Safe No
- low-profile No
- Fixed Blanking Yes
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting No
- SIL Rating SIL3; CL3
- Supply Current 375 mA max.
- Recovery Time 25-152 / 81-495
- Reduced Resolution Yes
- Connector Type M12 Pigtail (Yellow)
- Fault Output No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Response Time 19
- OSSD Rating 24 V dc at 0.5 A each
- IP Rating IP65
- Operating Voltage 24 V dc +/- 15%
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing No
- External Monitoring Device 1 or 2 Channel
- Overall Length (mm) 971
- Operating Temperature 0 to +55 deg. C; RH 95%
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Defined Area Height (mm) 900
- PL Rating Ple
- Short Protection Yes
- Test Input Yes
- Operating Distance (m) 0.1 - 18
- System Type Emitter/Receiver Pair
- Feature: Cascade Yes
- Safety Level Type 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCP30-900P44NT on Powermatic Associates is $3,324.00. Order now.
About the product

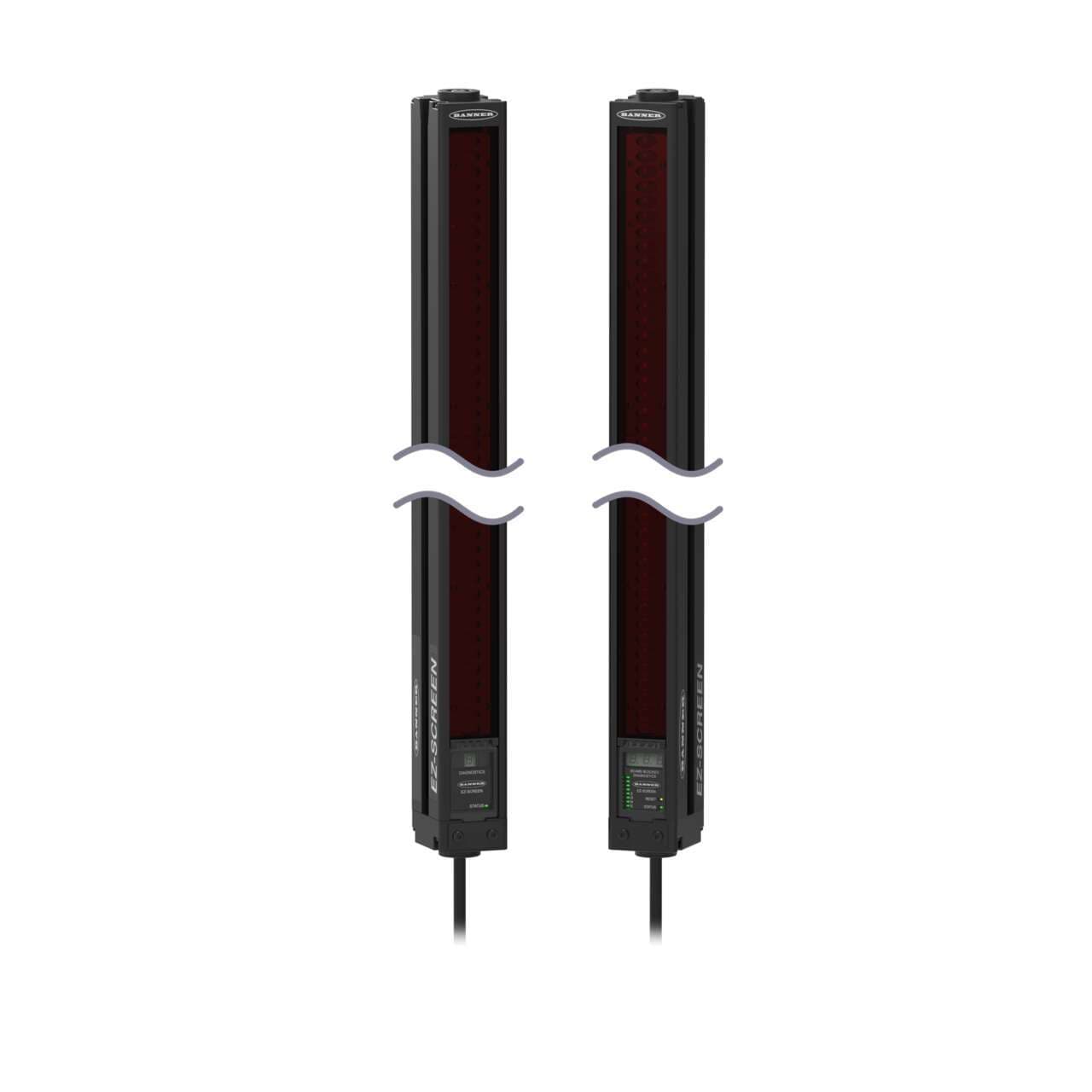

Banner Engineering SLSCP30-900P44NT is a safety light curtain from the SLS series designed with a cascadable feature. This part consists of an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector. The protective height is 900mm, and the housing is colored yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSCP30-900P44NT offers an IP65 degree of protection and has dimensions of 36mm in width, 971mm in height, and 46mm in depth. The light curtain features a 30mm beam spacing/pitch and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions. It has a sensing distance ranging from 10cm to 18m and uses infrared light with a wavelength of 850 nm. The resolution is set at 30mm for hand detection. Additionally, it includes one digital input (10Vdc-30Vdc) for EDM and one for RESET, with a response time of 19ms.
