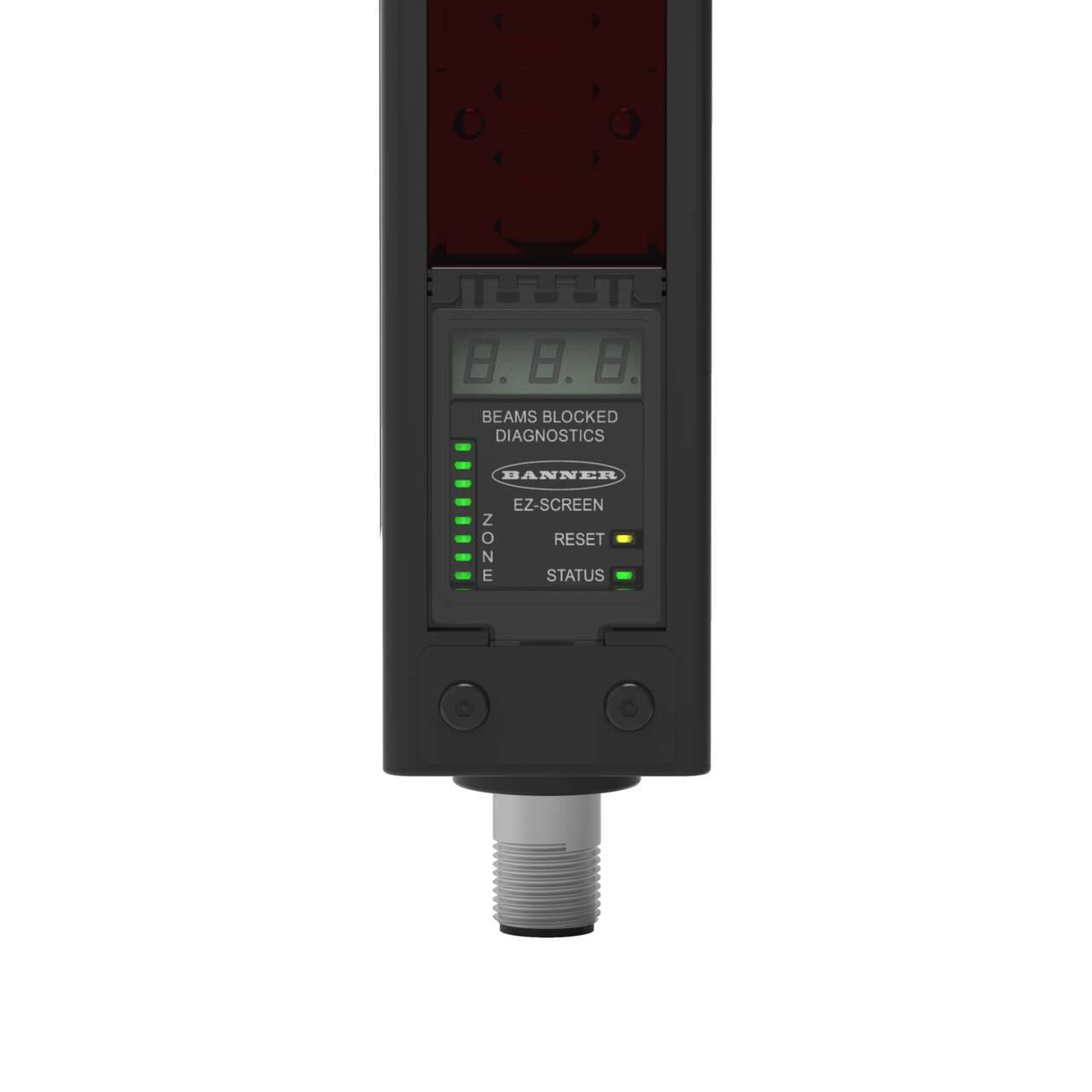

SLSR14-300Q8 Banner Safety Light Curtains

SLSR14-300Q8 on Powermatic Associates
Banner
  • SLSR14-300Q8
  • SLSR14-300Q8

Part#:SLSR14-300Q8

Alt. Part#:71221

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Receiver; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 8-pin M12 Connector

Product Details

  • Weight
    1877.87088 g
  • Country Of Origin
    MX
  • Defined Area Height (mm)
    300
  • Reduced Resolution
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • Feature: Integral Muting
    No
  • Connector Type
    M12
  • Operating Voltage
    24 V dc +/- 15%
  • Electrical Safety Class
    III
  • Feature: End-to-End Sensing
    No
  • External Monitoring Device
    1 or 2 Channel
  • System Type
    Receiver
  • Resolution (mm)
    14
  • Auxiliary Output
    Yes
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Dimensions WxD (mm)
    36 x 45.2
  • Response Time
    15
  • Fault Output
    No
  • Feature: ESD Safe
    No
  • Safety Level
    Type 4
  • Housing Finish
    Yellow Polyester
  • Scan Code
    Selectable
  • Fixed Blanking
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Trip/Latch Output
    Selectable
  • Overall Length (mm)
    372
  • Short Protection
    Yes
  • SIL Rating
    SIL3; CL3
  • Test Input
    No
  • Primary Housing Material
    Aluminum
  • Operating Distance (m)
    0.1 - 6
  • Recovery Time
    33-220 / 109-800
  • Housing Material
    Aluminum; Zinc; Acrylic
  • low-profile
    No
  • Number of Pins (Receiver/Emitter)
    8
  • PL Rating
    Ple
  • Supply Current
    275 mA max.
  • IP Rating
    IP65
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • OSSD Rating
    24 V dc at 0.5 A each

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSR14-300Q8 on Powermatic Associates is $1,094.00. Order now.

About the product

Banner Engineering SLSR14-300Q8 is a safety light curtain designed for protective applications, part of the 14/30 series. This model, functioning as a receiver alone, is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The device offers a protective height of 300mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSR14-300Q8 is rated with an IP65 degree of protection, ensuring durability against dust and water ingress. It has a 14mm beam spacing/pitch for detection, with a sensing distance ranging from 10cm to 6m. The device includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output. Additionally, it features one digital input (10Vdc-30Vdc) for EDM input and one for RESET input. The response time is 15ms / 0.015 s, and it has a resolution of 14mm for finger detection.
