SLSR30-1500Q8 Banner Safety Light Curtains
Part#:SLSR30-1500Q8
Alt. Part#:71257
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1500 mm (59.1 in); Housing Length: 1569 mm (61.8 in); Connection: 8-pin M12 Connector
Product Details
- Weight 4898.7936 g
- Country Of Origin MX
- Feature: End-to-End Sensing No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- low-profile No
- Resolution (mm) 30
- Housing Material Aluminum; Zinc; Acrylic
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- Scan Code Selectable
- OSSD Rating 24 V dc at 0.5 A each
- IP Rating IP65
- Fixed Blanking Yes
- System Type Receiver
- Feature: Integral Muting No
- Defined Area Height (mm) 1500
- Operating Temperature 0 to +55 deg. C; RH 95%
- Electrical Safety Class III
- Test Input No
- Connector Type M12
- PL Rating Ple
- Shock 10g at 16ms (6000 cycles)
- Supply Current 275 mA max.
- External Monitoring Device 1 or 2 Channel
- Recovery Time 25-152 / 81-495
- Short Protection Yes
- Trip/Latch Output Selectable
- Safety Level Type 4
- Operating Distance (m) 0.1 - 18
- Response Time 27
- Fault Output No
- Primary Housing Material Aluminum
- Number of Pins (Receiver/Emitter) 8
- Reduced Resolution Yes
- Auxiliary Output Yes
- Feature: ESD Safe No
- Overall Length (mm) 1569
- Housing Finish Yellow Polyester
- SIL Rating SIL3; CL3
- Vibration 10-55 Hz at 0.35 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSR30-1500Q8 on Powermatic Associates is $2,785.00. Order now.
About the product

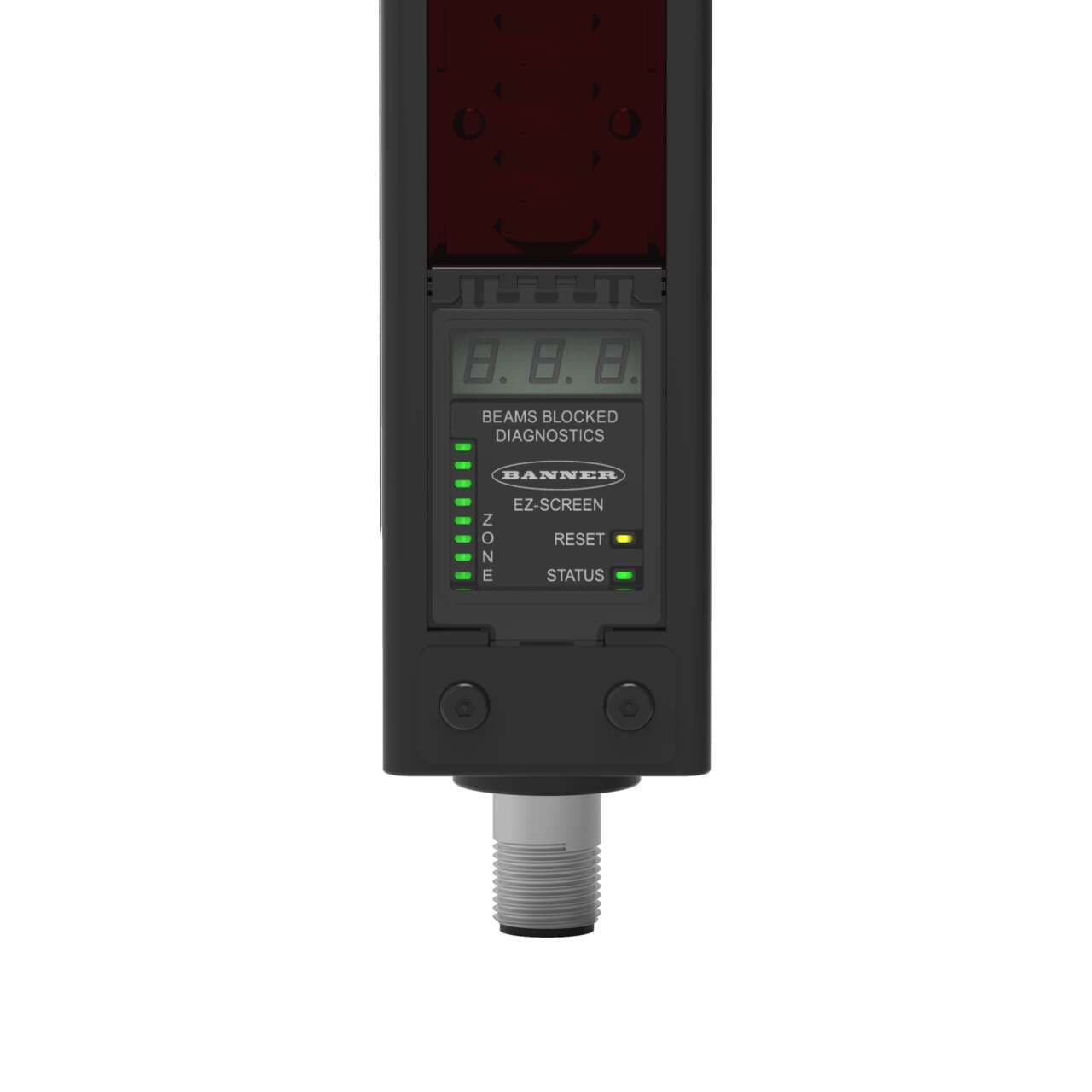

Banner Engineering SLSR30-1500Q8 is a safety light curtain designed as part of the 14/30 series, functioning as a receiver alone. It features an aluminium housing with an acrylic lens and die-cast zinc end caps. This model is pre-equipped with an 8-pin Euro-style M12 connector and offers a protective height of 1500mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of 0 to +55°C and has an IP65 degree of protection. The net dimensions are 36mm in width, 1569mm in height, and 46mm in depth. It has a 30mm beam spacing/pitch for hand detection, with a sensing distance ranging from 10cm to 18m. The SLSR30-1500Q8 includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, 1 x digital input (10Vdc-30Vdc) for EDM input, and 1 x digital input (10Vdc-30Vdc) for RESET input. Its response time is 27ms / 0.027 s.
