SM2A312C W/30 Banner Electronic Components

SM2A312C W/30 on Powermatic Associates
Banner

Part#:SM2A312C W/30

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

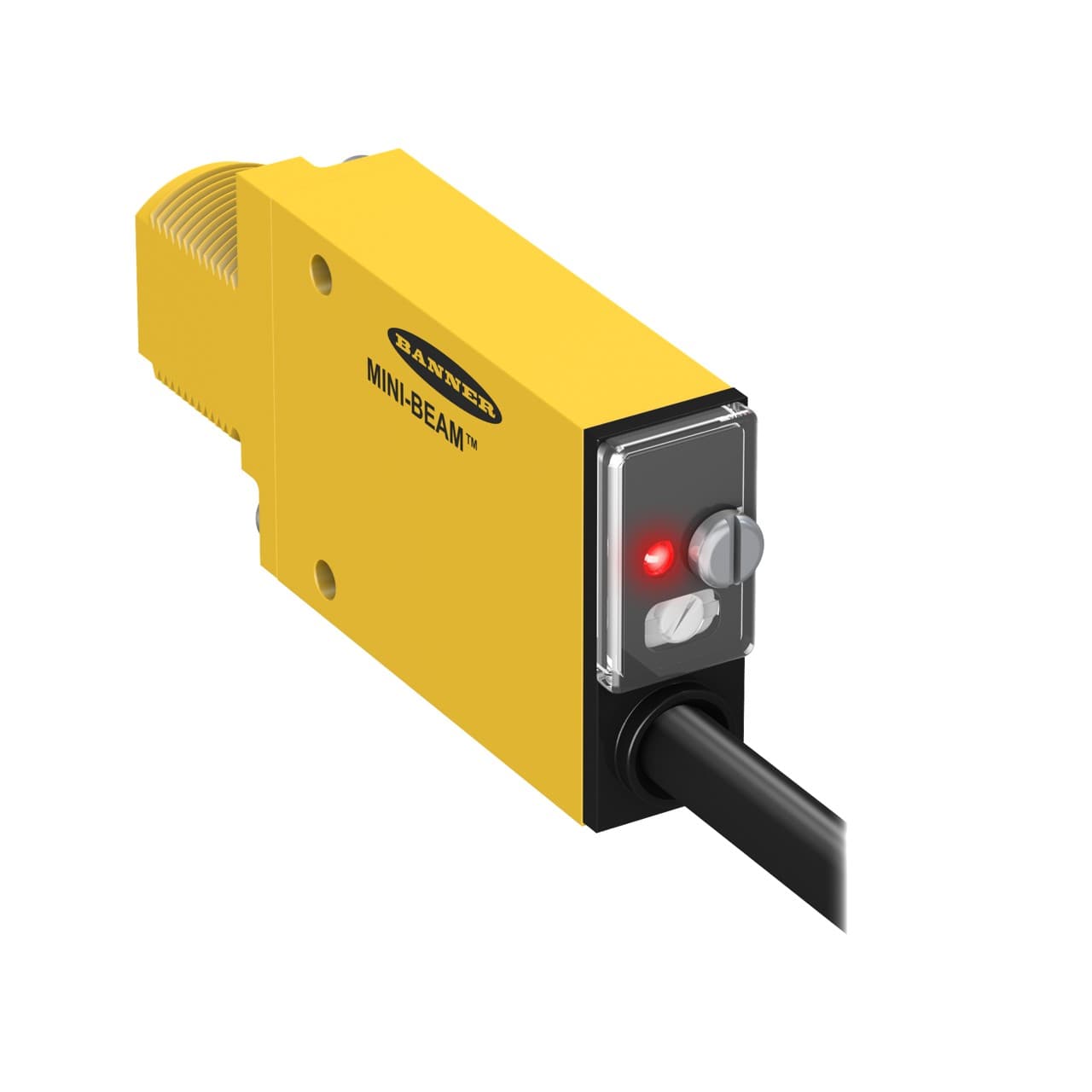

MINI-BEAM: Infrared 880 nm Convergent, Focal Point: 16 mm; Input: 24-240V ac, Output: SPST Solid-state 2-Wire, 9 m (30 ft) cable

Product Details

  • Sensing Mode (General)
    Proximity
  • Input/Output
    Solid-State AC Switch
  • Special Feature: Water Detection
    No
  • Adjustments
    Potentiometer
  • IO Link
    No
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
  • Feature: Encapsulated
    Yes
  • Housing Style
    Rectangular w/M18 Mount
  • Connection
    Cable
  • Sensing Beam
    Infrared LED
  • Operation
    Light/Dark Operate
  • Delay at Power-up (ms)
    300
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Cable Length (m)
    9
  • Power Supply/Supply Voltage
    24-240 V ac
  • Special Feature: Remote Teach
    No
  • Sensing Mode (Detailed)
    Convergent
  • Min Op. Temp. (°C)
    -20
  • Repeatability (µs)
    1300
  • Barrel Diameter (mm)
    18
  • Power
    AC
  • Max Op. Temp. (°C)
    70
  • IP Rating
    IP67
  • Feature: Hazardous Area
    No
  • Primary Housing Material
    Thermoplastic
  • Output response time (ms)
    4
  • Number of Pins
    2
  • Feature: Timing (Hold/Delay)
    No
  • Outputs
    Solid-State AC Switch
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    16
  • Quick Disconnect Type
    No QD
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
