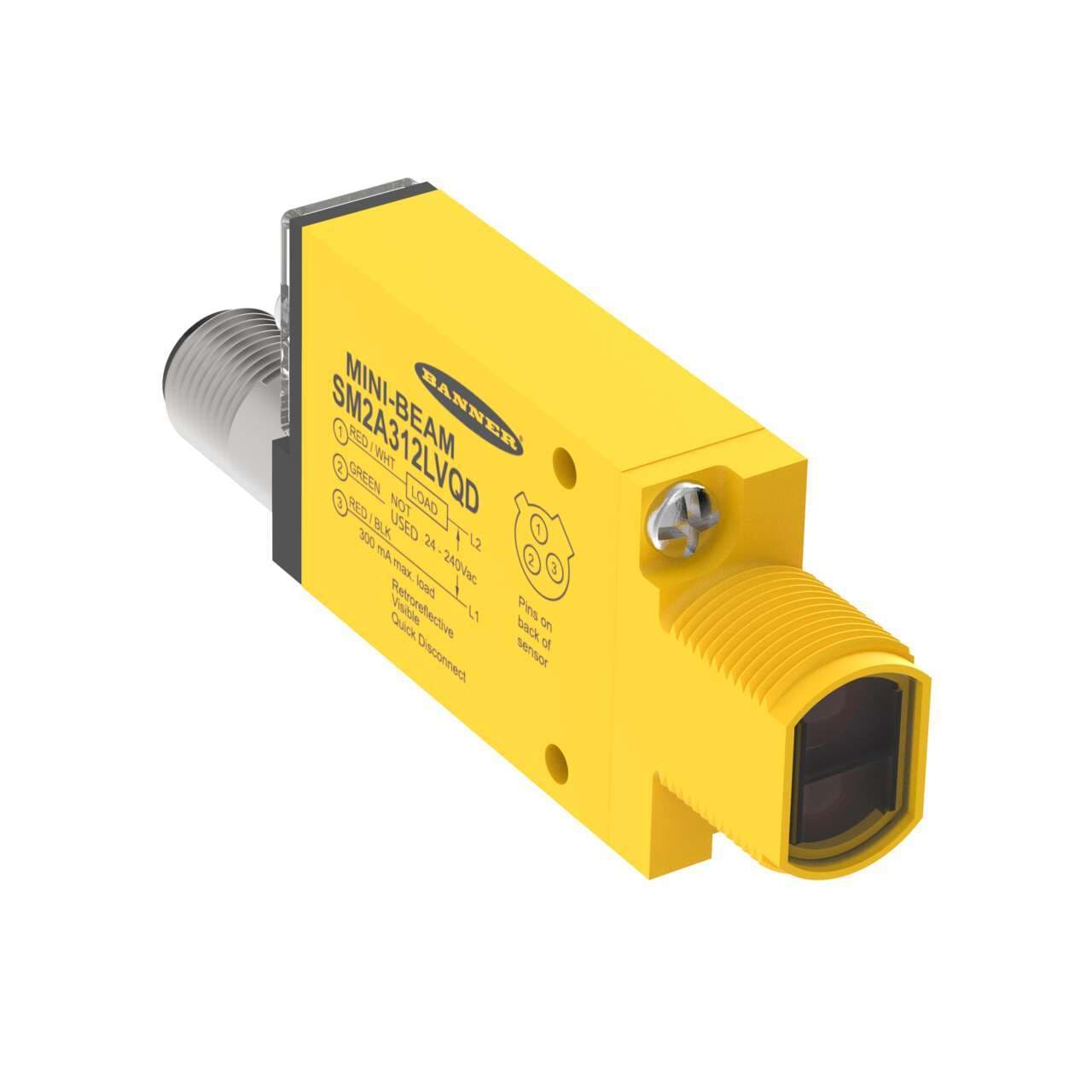

SM2A312LVQD Banner Proximity Sensors
Part#:SM2A312LVQD
Alt. Part#:26845
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Retro; Range: 5 m; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD
Product Details
- Weight 70.30676 g
- Country Of Origin US
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Primary brand Banner Engineering
- Design retro-reflective mode
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Light Color Visible red
- Connection type Pre-equipped with 3-pin 1/2" Micro connector
- Response time 4ms / 0.004 s
- Product series / family name MINI-BEAM series
- Shape Rectangular
- Sensing distance 5m
- Operating mode Light-ON Dark-ON
- Sub-range name SM2A312
- Wavelength 650 nm
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Compliant with standard(s) cURus CSA CE
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Ambient air temperature for operation -20...+70 °C
- Order code / Manufacturer SKU 26845
- Primary Housing Material Thermoplastic
- Quick Disconnect Type 1/2 in. (Micro)
- Number of Pins 3
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 650
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant No
- Outputs Solid-State AC Switch
- Power Supply/Supply Voltage 24-240 V ac
- Delay at Power-up (ms) 300
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Non-Polarized
- Min Op. Temp. (°C) -20
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 5000
- Connection Integral QD
- IP Rating IP67
- Feature: Encapsulated Yes
- Power AC
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Housing Style Rectangular w/M18 Mount
- Output response time (ms) 4
- Special Feature: Water Detection No
- Adjustments Potentiometer
- DeviceNet No
- Input/Output Solid-State AC Switch
- Operation Light/Dark Operate
- Repeatability (µs) 1300
- Indicator LEDs
- IO Link No
- Sensing Mode (General) Retroreflective
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A312LVQD on Powermatic Associates is $184.00. Order now.
About the product
Banner Engineering SM2A312LVQD is a photo-electric sensor from the SM2A312 series, designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing and an acrylic lens. It comes pre-equipped with a 3-pin 1/2" micro connector for connectivity. The supply voltage ranges from 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. It is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +70°C. The SM2A312LVQD offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring durability in various environmental conditions. Its shape is rectangular, and it includes 1 x digital output (Solid-state AC output; SPST contact type) for signaling. The sensing distance is up to 5m, with a visible red light color and a response time of 4ms (0.004 s). This sensor operates with a wavelength of 650 nm and features Light-ON and Dark-ON operating modes.
