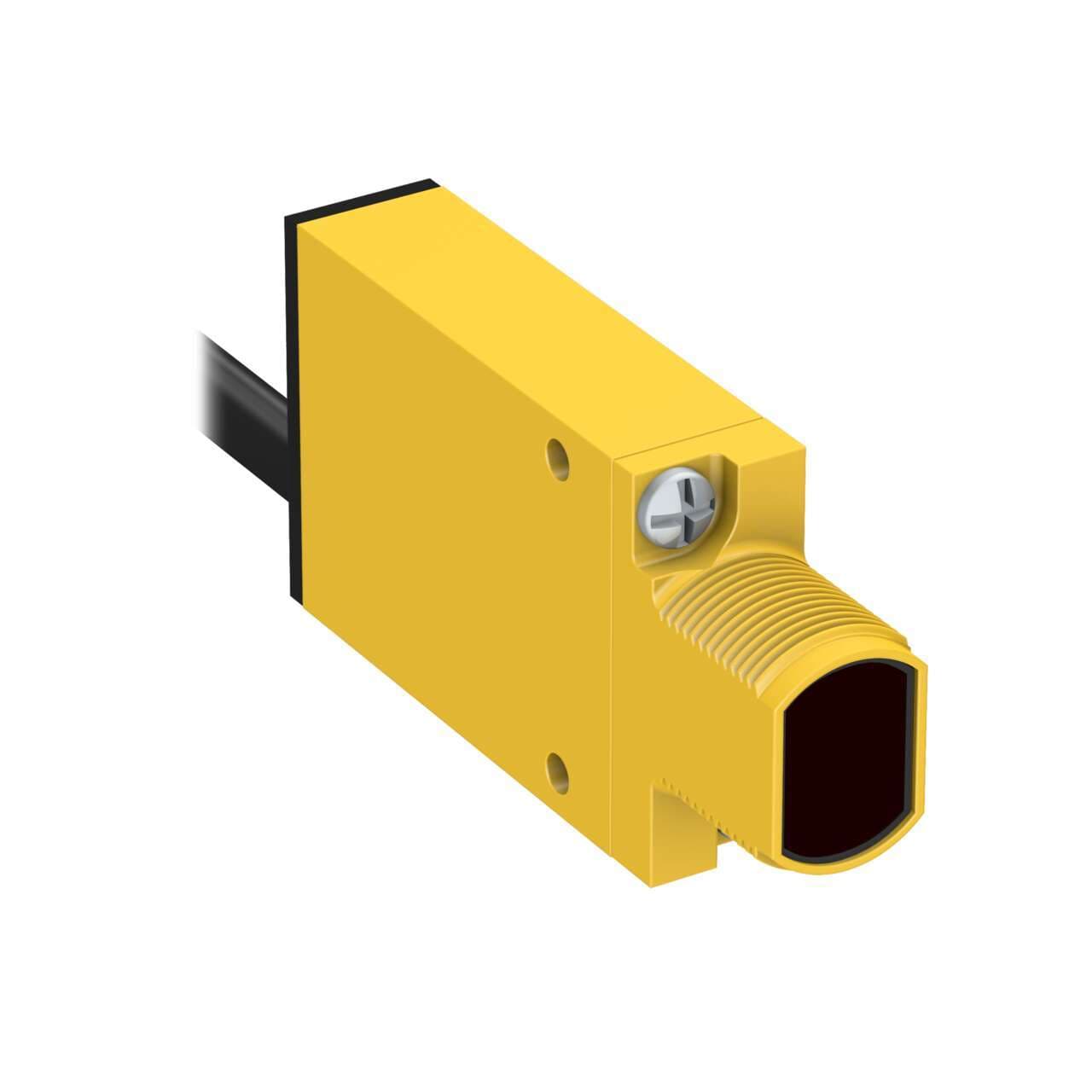

SMA31EQDP Banner Proximity Sensors
Part#:SMA31EQDP
Alt. Part#:29552
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Emitter; Range: 3 m; Input: 24-240 V ac; Output: Not Applicable; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 79.3786 g
- Country Of Origin US
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 29552
- Sub-range name SM2A312
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin 1/2" Micro connector
- Response time 2ms / 0.002 s
- Ambient air temperature for operation -20...+70 °C
- Design through-beam system / opposed mode
- Thread size M18
- Compliant with standard(s) cURus CSA CE
- Product series / family name MINI-BEAM series
- Shape Rectangular
- Functions Photo-electric emitter red LED (power ON) potentiometer adjustment
- Material thermoplastic housing Acrylic lns.
- Wavelength 880 nm
- Mounting mode Threaded mount
- Outputs N/A
- Output response time (ms) 2 ON/1 OFF
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Chemical Resistant No
- Power AC
- Connection Pigtail QD
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 3000
- Quick Disconnect Type 1/2 in. (Micro)
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Housing Style Rectangular w/M18 Mount
- Operation N/A
- IP Rating IP67
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 24-240 V ac
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Opposed Mode Emitter/Receiver Emitter
- Primary Housing Material Thermoplastic
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Feature: Audible No
- Sensing Mode (Detailed) Emitter
- Min Op. Temp. (°C) -20
- Repeatability (µs) 300
- Feature: Encapsulated Yes
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 70
- Number of Pins 3
- Indicator LEDs
- Sensing Beam Infrared LED
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMA31EQDP on Powermatic Associates is $119.00. Order now.
About the product
Banner Engineering SMA31EQDP is a photo-electric sensor designed as part of the SM2A312 series, featuring a through-beam system with opposed mode potentiometer adjustment. This sensor, functioning as an emitter alone, is housed in thermoplastic with an acrylic lens. It comes pre-wired with a 6" / 150mm pigtail terminated with a 3-pin 1/2" micro connector. The SMA31EQDP operates on a supply voltage of 24Vac-240Vac (200Vac / 220Vac nom.) and is mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, and NEMA 13. The sensor has a rectangular shape, a sensing distance of 3m, and utilizes infrared (IR) light with a wavelength of 880 nm. Its response time is 2ms / 0.002 s, and it supports both Light-ON and Dark-ON operating modes.
