SX5-M10 Banner Safety Light Curtains
Part#:SX5-M10
Alt. Part#:807769
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SX5 Series Safety Laser Scanner, Master; Safety Zone Sets: 10; Safety Outputs: 2 OSSD Pairs; Removable Memory: 8-pin or 12-pin; Protective Field Range: 0.05 m to 5.5 m; Scanning Angle Degrees (max): 275
Product Details
- Weight 2204.45712 g
- Country Of Origin IT
- Removable Memory Yes
- Available Resolutions (mm) 30, 40, 50, 70, 150
- Power Consumption 0.3 A (exclusive of load)
- Safe Output Rating OSSD 0.250 A max. @ 24 V dc
- Safe Outputs 4
- Replaceable Window Yes
- Scanner Type Master
- Encoder Inputs No
- Operating Voltage 24 V dc +/- 20%
- Laser Classification Class 1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SX5-M10 on Powermatic Associates is $6,163.00. Order now.
About the product

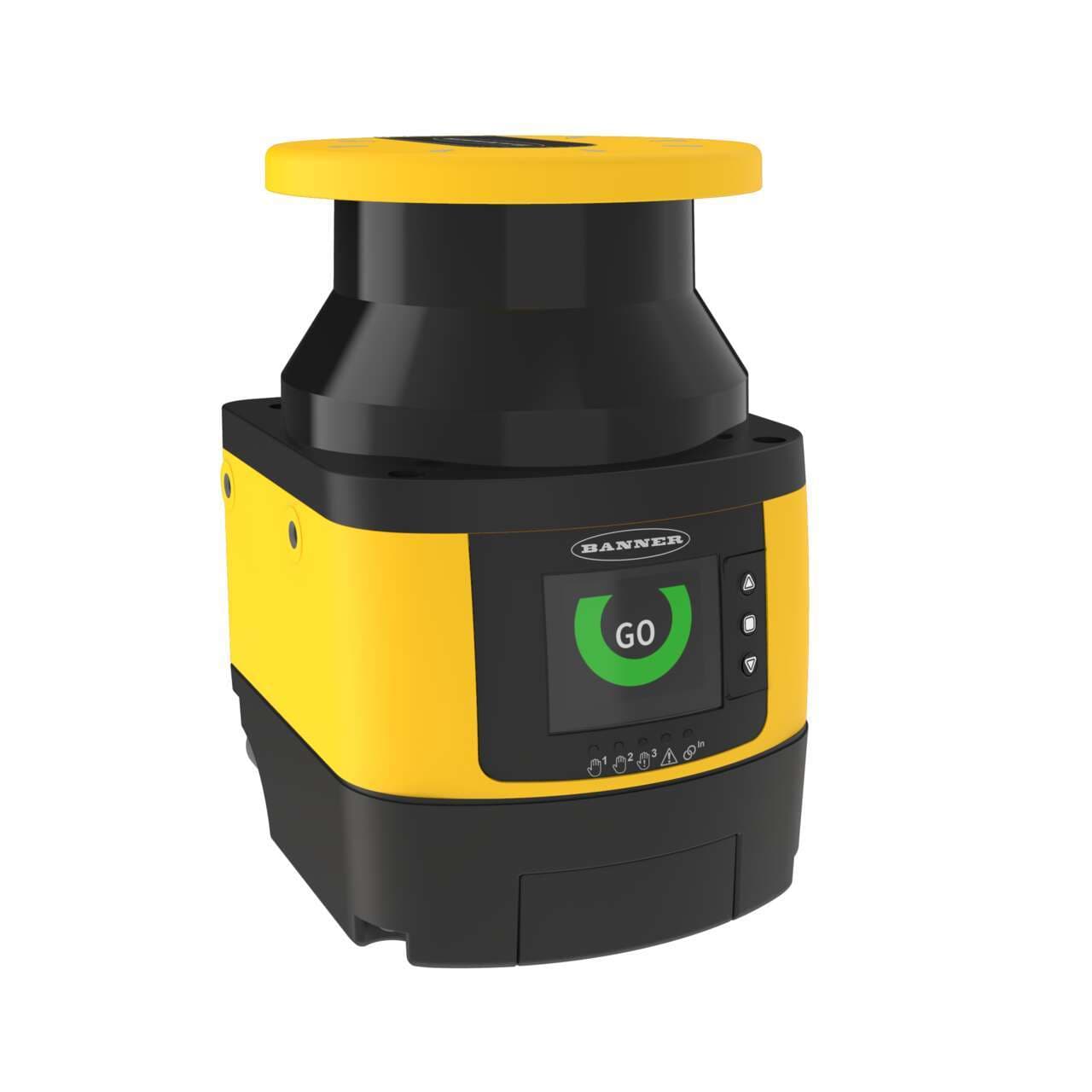

Banner Engineering SX5-M10 is a master model safety laser scanner designed to monitor and secure areas with its Safety class 1 Laser scanner protective field. It comes pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The device operates on a 24Vdc supply voltage and is suitable for ambient air temperatures ranging from 0 to +50°C. It boasts an IP65 degree of protection, ensuring its durability against dust and water ingress. The SX5-M10 features 1 x digital output, which includes 4 x OSSD outputs, and offers a sensing distance between 5cm and 5.5m, catering to a wide range of safety applications.
