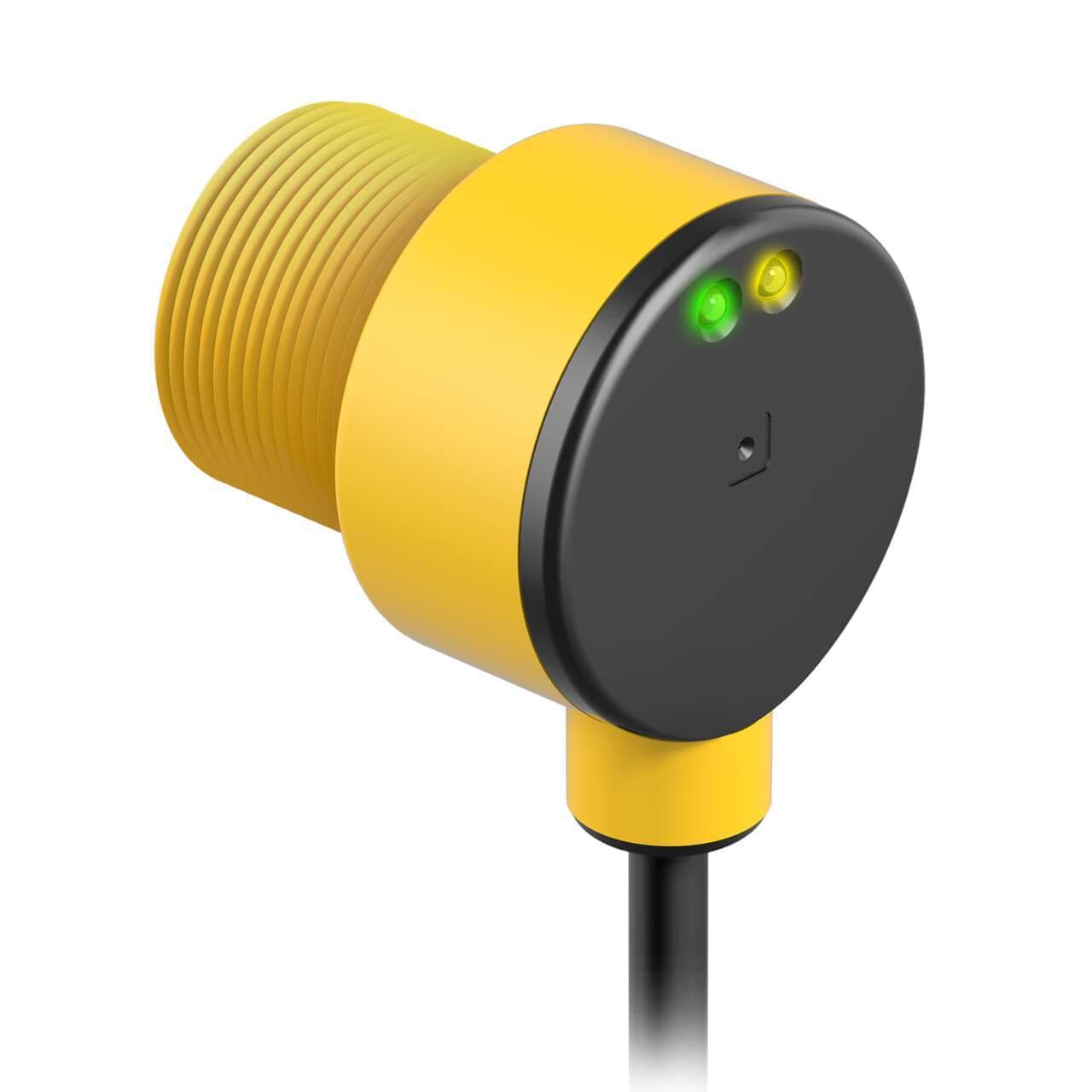

T30SP6FF400 W/30 Banner Proximity Sensors
Part#:T30SP6FF400 W/30
Alt. Part#:33936
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Fixed Field; Range: 400 mm; Input: 10-30 V dc; Output: Complementary PNP; 9 m (30 ft) Cable
Product Details
- Weight 623.689 g
- Country Of Origin US
- IP Rating IP69
- Sensing Mode (General) Proximity
- Max Sensing Distance (mm) 400
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- Barrel Diameter (mm) 30
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 750
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Ecolab Certified Yes
- Feature: Timing (Hold/Delay) No
- Feature: Health/ Marginal Signal Output Yes
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- Feature: Hazardous Area No
- Power DC
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Operation Light/Dark Operate
- Indicator LEDs
- Feature: Audible No
- Housing Style Barrel
- Quick Disconnect Type No QD
- Output response time (ms) 3
- Special Feature: Water Detection No
- Feature: Washdown Rated Yes
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Adjustments N/A
- Feature: Chemical Resistant No
- Cable Length (m) 9
- Outputs PNP
- Connection Cable
- Number of Pins 4
- Feature: Encapsulated Yes
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30SP6FF400 W/30 on Powermatic Associates is $175.00. Order now.
About the product
Banner Engineering T30SP6FF400 W/30 is a fixed-field photo-electric sensor within the T30 series, featuring a background suppression system. This sensor is housed in thermoplastic and comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values at 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The T30SP6FF400 W/30 offers a degree of protection rated at IP69K NEMA 6P and is designed in an M30 cylindrical threaded/barrel shape. It includes 1 x digital output (PNP transistor), has a sensing distance of 400mm, utilizes infrared (IR) light, and boasts a response time of 3ms / 0.003 s. The operating modes available are Light-ON and Dark-ON, with a thread size of M30.
