Part#:T8AP6RQ5

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

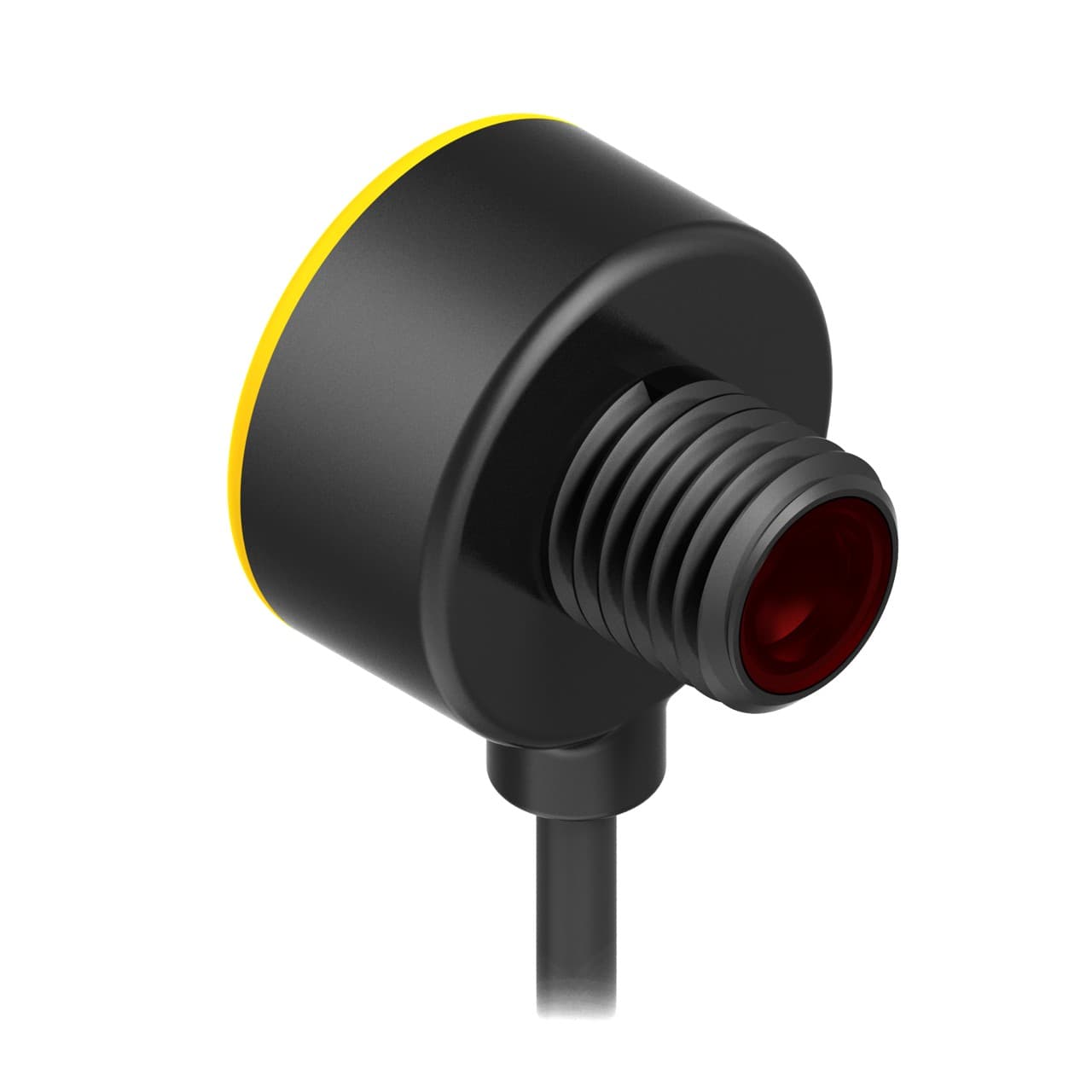

Banner Engineering T8AP6RQ5 is a photo-electric sensor from the T8 series designed with a through-beam system, functioning as the receiver component of the opposed mode setup. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -20 to +55 degrees Celsius. It is equipped with an IP67 and NEMA 6 rated degree of protection, ensuring its durability in various environmental conditions. The T8AP6RQ5 has an M8 cylindrical threaded/barrel shape, includes one digital output (PNP transistor), and offers a sensing distance of up to 2 meters. It emits visible red light with a wavelength of 660 nm and responds within 1ms (0.001 s). Its operating mode is Light-ON NO (Normally Open), and it features an M8 thread size for installation.

Product Details

  • Primary Housing Material
    Thermoplastic
  • Number of Pins
    4
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Beam
    Visible Red LED
  • Operation
    Light Operate
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Outputs
    PNP
  • Output response time (ms)
    1 ON/0.5 OFF
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Sensing Mode (General)
    Opposed
  • Special Feature: Intrinsically Safe
    No
  • NEMA Rating
    NEMA 6
  • Feature: Hazardous Area
    No
  • Sensing Mode (Detailed)
    Receiver
  • Delay at Power-up (ms)
    100
  • Indicator
    LEDs
  • Feature: Chemical Resistant
    No
  • Housing Style
    Barrel
  • Min Op. Temp. (°C)
    -20
  • Opposed Mode Emitter/Receiver
    Receiver
  • Input/Output
    Discrete
  • Special Feature: Remote Teach
    No
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    2000
  • Max Op. Temp. (°C)
    55
  • Adjustments
    N/A
  • Power
    DC
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    8
  • IO Link
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Pigtail QD
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Quick Disconnect Type
    M12 (Euro)
  • Repeatability (µs)
    100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T8AP6RQ5 Related Documents

T8 Series, Opposed-Mode Models-1630949274504.pdf
