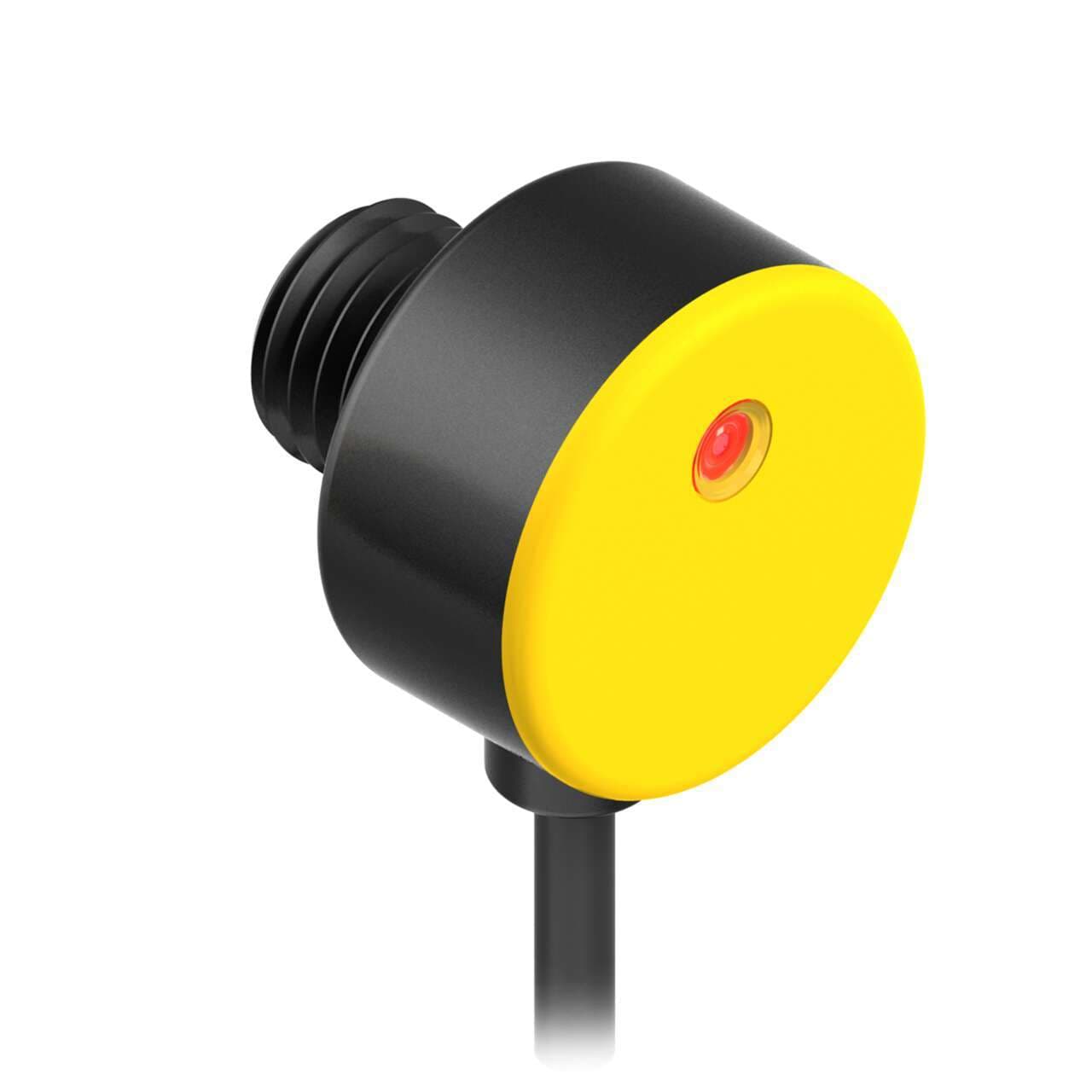

T8AP6D50Q5 Banner Proximity Sensors

T8AP6D50Q5 on Powermatic Associates
Banner
  • T8AP6D50Q5
  • T8AP6D50Q5

Part#:T8AP6D50Q5

Alt. Part#:70640

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

EZ-BEAM T8 Series DIFFUSE; Range: 50 mm; Input: 10-30 V dc; Output: PNP/ LO; 150 mm Pigtail QD

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • Max Sensing Distance (mm)
    50
  • Operation
    Light Operate
  • Repeatability (µs)
    160
  • DeviceNet
    No
  • Input/Output
    Discrete
  • Max Op. Temp. (°C)
    55
  • Special Feature: Water Detection
    No
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Intrinsically Safe
    No
  • Barrel Diameter (mm)
    8
  • IO Link
    No
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Hazardous Area
    No
  • Sensing Beam
    Visible Red LED
  • Connection
    Pigtail QD
  • Number of Pins
    4
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Mode (General)
    Proximity
  • Min Op. Temp. (°C)
    -20
  • Special Feature: Remote Teach
    No
  • Lens Material
    Acrylic
  • Quick Disconnect Type
    M12 (Euro)
  • Delay at Power-up (ms)
    150
  • Adjustments
    N/A
  • Outputs
    PNP
  • Housing Style
    Barrel
  • NEMA Rating
    NEMA 6
  • Indicator
    LEDs
  • Sensing Mode (Detailed)
    Diffuse
  • Output response time (ms)
    1 ON/0.5 OFF
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Feature: Audible
    No
  • Opposed Mode Emitter/Receiver
    N/A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T8AP6D50Q5 on Powermatic Associates is $158.00. Order now.

About the product

Banner Engineering T8AP6D50Q5 is a photo-electric sensor from the T8 series designed in a diffuse mode with a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The sensor can function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67 NEMA 6. It features an M8 cylindrical threaded/barrel shape, a single digital output (PNP transistor), and a sensing distance of 50mm. The light color is visible red, with a response time of 1ms / 0.001 s, operating in a Light-ON NO (Normally Open) mode. The wavelength of the light is 680 nm, and it has an M8 thread size.
