T8AP6D100Q Banner Proximity Sensors

T8AP6D100Q on Powermatic Associates
Banner
  • T8AP6D100Q
  • T8AP6D100Q

Part#:T8AP6D100Q

Alt. Part#:68689

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

T8 Series: Diffuse; Range: 100 mm; Input: 10-30 V dc; Output: PNP Light Operate; 150 mm (6 in) M12 Pigtail QD

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    MX
  • Sensing Mode (General)
    Proximity
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Intrinsically Safe
    No
  • IP Rating
    IP67
  • Feature: Audible
    No
  • Sensing Beam
    Visible Red LED
  • Operation
    Light Operate
  • Adjustments
    N/A
  • DeviceNet
    No
  • Max Sensing Distance (mm)
    100
  • Min Op. Temp. (°C)
    -20
  • Lens Material
    Acrylic
  • IO Link
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Max Op. Temp. (°C)
    55
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Indicator
    LEDs
  • Input/Output
    Discrete
  • Quick Disconnect Type
    M8 (Pico)
  • Delay at Power-up (ms)
    150
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Connection
    Pigtail QD
  • Repeatability (µs)
    160
  • Feature: Hazardous Area
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Special Feature: Water Detection
    No
  • NEMA Rating
    NEMA 6
  • Feature: Encapsulated
    No
  • Outputs
    PNP
  • Housing Style
    Barrel
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    8
  • Primary Housing Material
    Thermoplastic
  • Output response time (ms)
    1 ON/0.5 OFF
  • Number of Pins
    3
  • Feature: Timing (Hold/Delay)
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T8AP6D100Q on Powermatic Associates is $143.00. Order now.

About the product

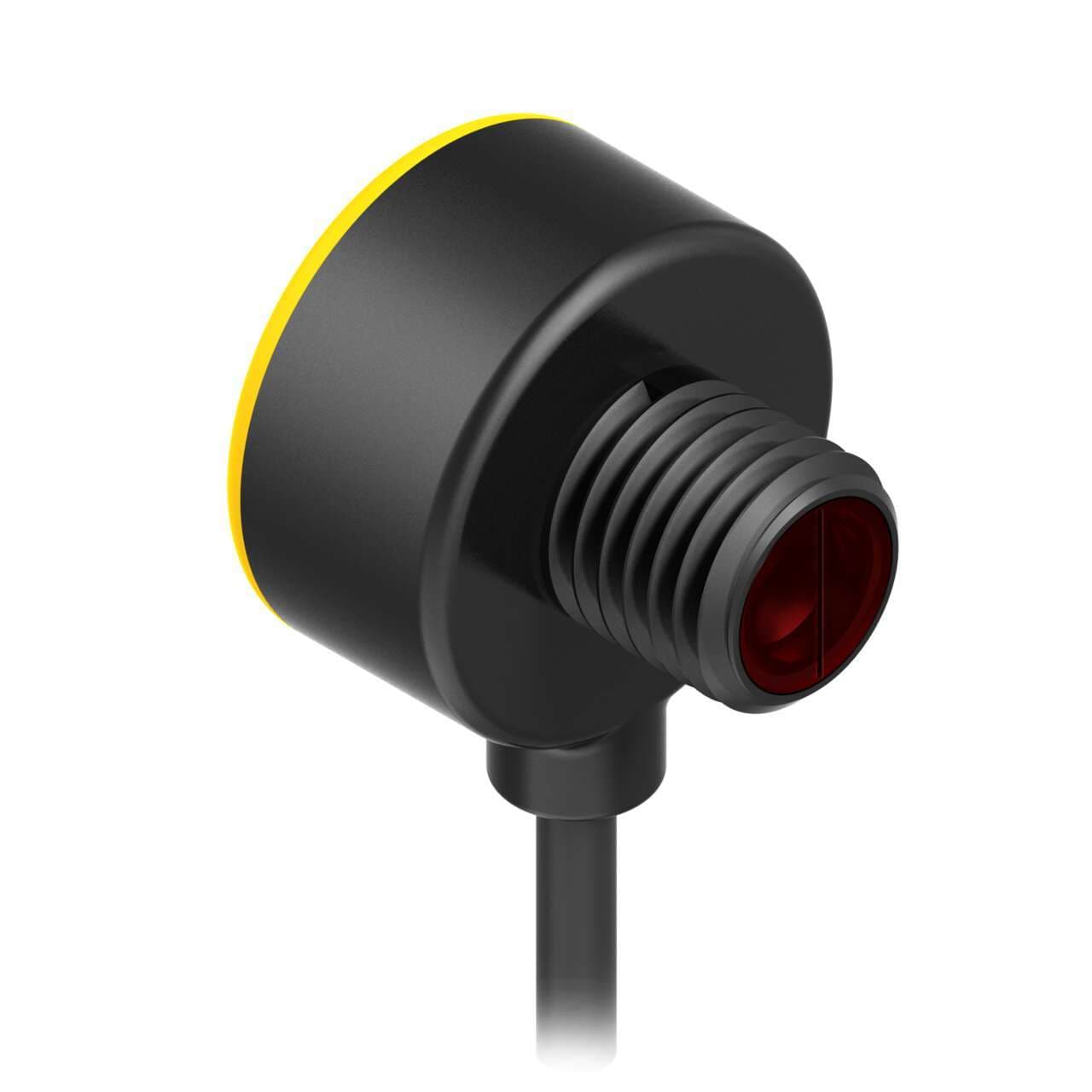

Banner Engineering T8AP6D100Q is a photo-electric sensor from the T8 series designed in a diffuse mode. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor can function within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67 NEMA 6. Its shape is an M8 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor) with a sensing distance of 100mm. The light color is visible red, with a response time of 1ms / 0.001 s, operating in a Light-ON NO (Normally Open) mode. The wavelength of the light is 680 nm, and it has an M8 thread size.
