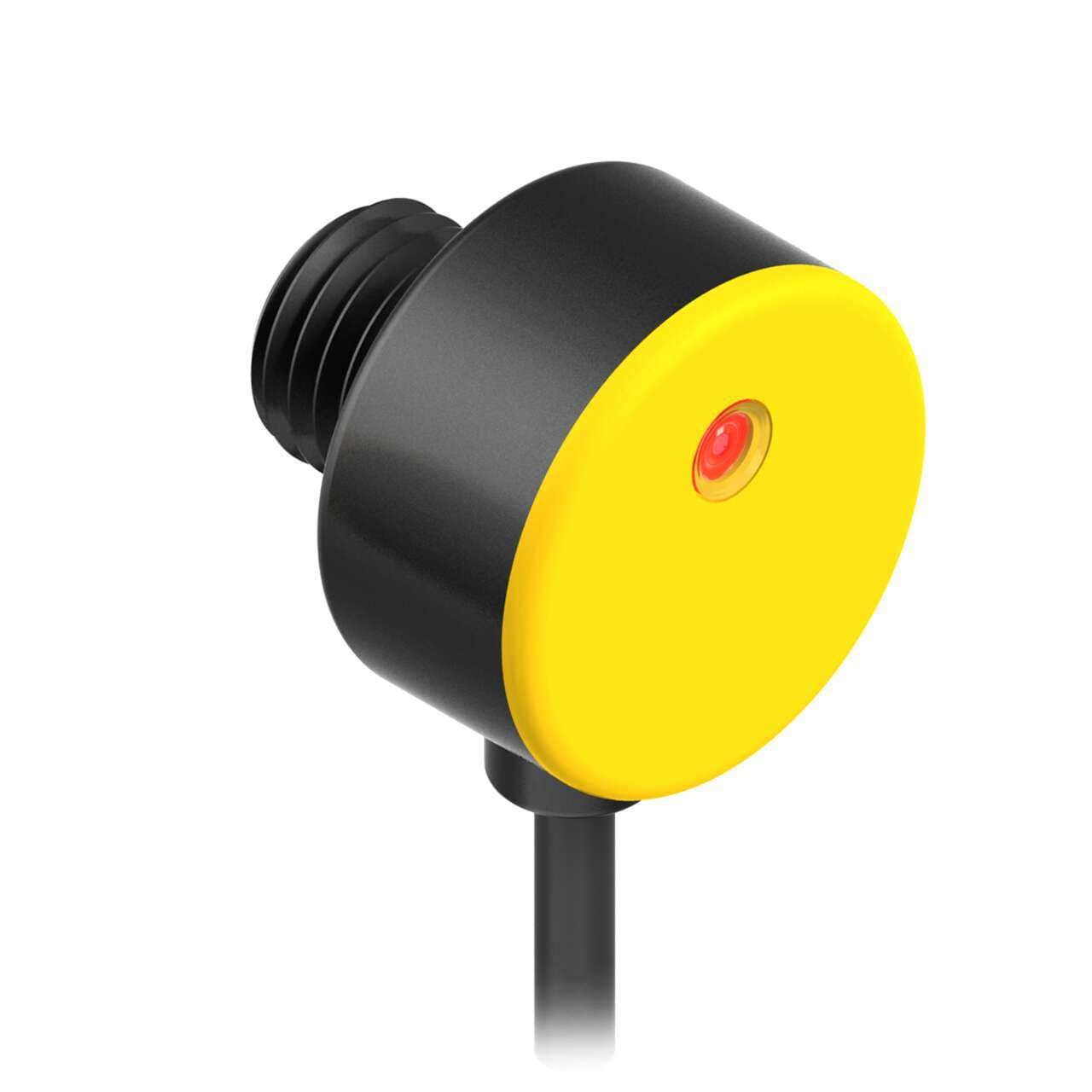

T8AP6D100 Banner Proximity Sensors
Part#:T8AP6D100
Alt. Part#:68688
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T8 Series: Diffuse; Range: 100 mm; Input: 10-30 V dc; Output: PNP Light Operate; 2 m (6.5 ft) Cable
Product Details
- Weight 54.43104 g
- Country Of Origin MX
- Sub-range name T8 series
- Light Color Visible red
- Design diffuse mode
- Shape Cylindrical threaded/barrel
- Ambient air temperature for operation -20...+55 °C
- Main function Sensor (Photo-electric)
- Sensing distance 100mm
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M8
- Response time 1ms / 0.001 s
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 68688
- Material thermoplastic housing Acrylic lns.
- Functions Photo-electric sensor red LED (failure)
- Operating mode Light-ON NO (Normally Open)
- Wavelength 680 nm
- Product series / family name EZ-BEAM series
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Housing Style Barrel
- Operation Light Operate
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Connection Cable
- Delay at Power-up (ms) 150
- Barrel Diameter (mm) 8
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Max Op. Temp. (°C) 55
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 100
- Cable Length (m) 2
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Output response time (ms) 1 ON/0.5 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 160
- Indicator LEDs
- Outputs PNP
- Special Feature: Water Detection No
- Adjustments N/A
- Power DC
- Quick Disconnect Type No QD
- Number of Pins 3
- Feature: Encapsulated No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T8AP6D100 on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering T8AP6D100 is a photo-electric sensor from the T8 series designed in a diffuse mode with a thermoplastic housing and an acrylic lens. This sensor features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc as nominal values. The ambient air temperature range for operation is between -20 and +55 °C. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environments. The sensor has an M8 cylindrical threaded/barrel shape, equipped with 1 x digital output (PNP transistor) and a sensing distance of 100mm. It utilizes visible red light with a wavelength of 680 nm and has a response time of 1ms / 0.001 s. The operating mode is Light-ON NO (Normally Open), and it features an M8 thread size.
