T8AP6R Banner Proximity Sensors

T8AP6R on Powermatic Associates
Banner
  • T8AP6R
  • T8AP6R

Part#:T8AP6R

Alt. Part#:66667

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

T8 Series: Opposed Mode; Range: 2000 mm; Input: 10-30 V dc; Output: PNP Light Operate; 2 m (6.5 ft) Cable

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    MX
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    Discrete
  • Min Op. Temp. (°C)
    -20
  • Feature: Encapsulated
    No
  • Indicator
    LEDs
  • Housing Style
    Barrel
  • Power Supply/Supply Voltage
    10-30 V dc
  • IP Rating
    IP67
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Cable Length (m)
    2
  • Outputs
    PNP
  • Special Feature: Water Detection
    No
  • Opposed Mode Emitter/Receiver
    Receiver
  • Sensing Mode (General)
    Opposed
  • Max Sensing Distance (mm)
    2000
  • Quick Disconnect Type
    No QD
  • Power
    DC
  • Operation
    Light Operate
  • NEMA Rating
    NEMA 6
  • Barrel Diameter (mm)
    8
  • Sensing Mode (Detailed)
    Receiver
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    55
  • Lens Material
    Acrylic
  • Connection
    Cable
  • Repeatability (µs)
    100
  • Feature: Hazardous Area
    No
  • Sensing Beam
    Visible Red LED
  • Number of Pins
    3
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Special Feature: Remote Teach
    No
  • DeviceNet
    No
  • Adjustments
    N/A
  • Output response time (ms)
    1 ON/0.5 OFF
  • Delay at Power-up (ms)
    100
  • IO Link
    No
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T8AP6R on Powermatic Associates is $119.00. Order now.

About the product

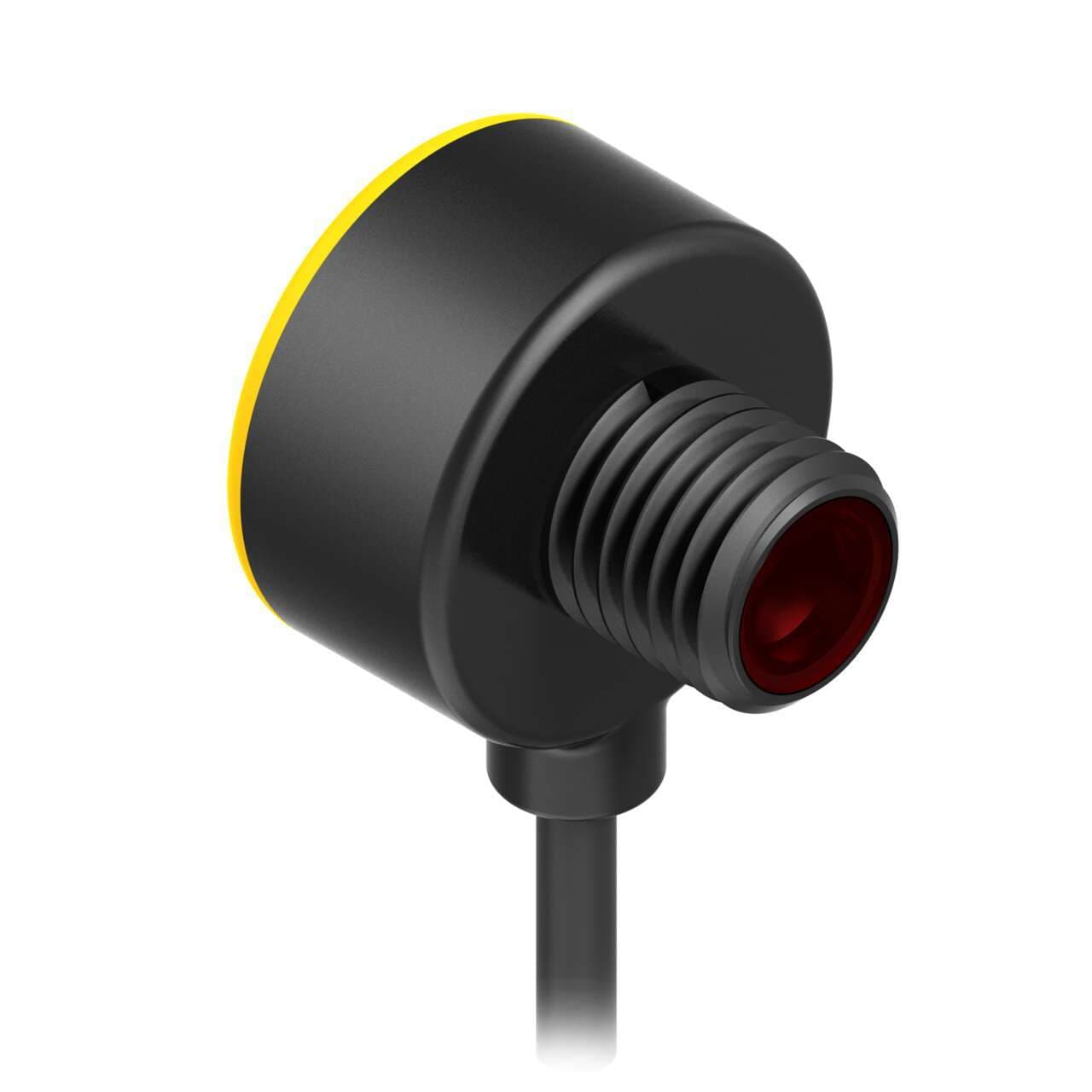

Banner Engineering T8AP6R is a photo-electric sensor from the T8 series designed with a through-beam system, functioning as the receiver component of the opposed mode setup. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It can function in ambient air temperatures ranging from -20 to +55°C and is rated with a degree of protection of IP67 NEMA 6, indicating a high level of protection against dust and water ingress. The T8AP6R has an M8 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor), and offers a sensing distance of up to 2m. It emits visible red light with a wavelength of 660 nm and has a rapid response time of 1ms / 0.001 s. Its operating mode is Light-ON NO (Normally Open), and it features an M8 thread size for mounting.

T8AP6R Related Documents

68669.pdf
