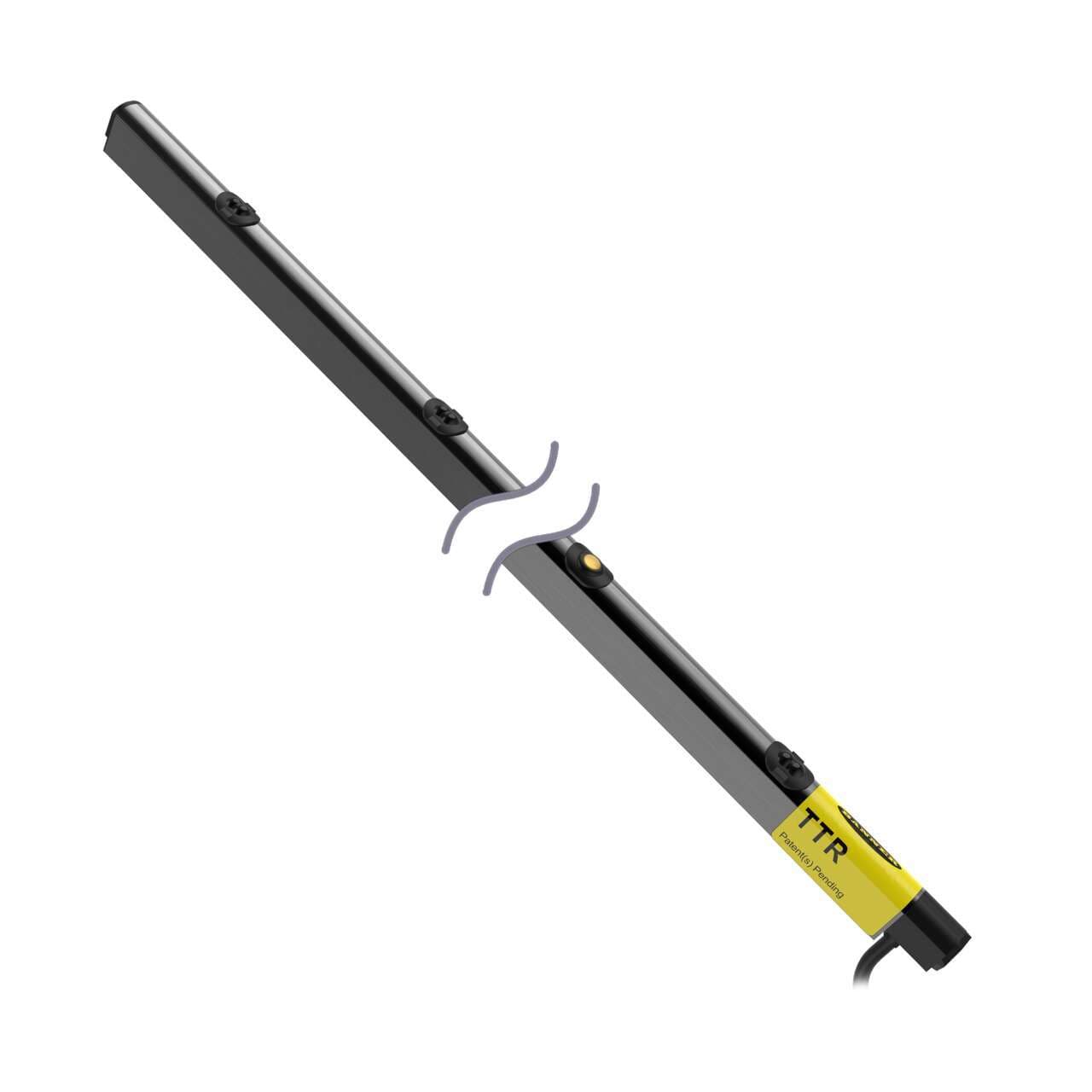

TTR686BMSD4B-2.0FL-CTR Banner Safety Light Curtains

TTR686BMSD4B-2.0FL-CTR on Powermatic Associates
Banner
  • TTR686BMSD4B-2.0FL-CTR
  • TTR686BMSD4B-2.0FL-CTR

Part#:TTR686BMSD4B-2.0FL-CTR

Alt. Part#:812158

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

TTR Series 4 Beam Sensor Array 27.0 in Between Frame; Beam Spacing: 162 mm; Range: 120 mm Diffuse; Output: Bimodal; Input: 18-30 V dc; M8 Conn. B: Point up / hex and round 2.0 m (6 ft) Flying leads

Product Details

  • Weight
    381.01728 g
  • Country Of Origin
    MX
  • Cable Length (m)
    2
  • Adjustments
    N/A
  • Outputs
    Bimodal
  • Distance to First Beam [mm]
    100
  • Slot Depth/Array Length (mm)
    686
  • Quick Disconnect Type
    No QD
  • Output response time (ms)
    1
  • Min Op. Temperature (°C)
    -10
  • Max Sensing Range (mm)
    120
  • Max Op. Temperature (°C)
    55
  • End Cap Type
    B: Hex Point Up / Spring 11 mm Hex - 8 mm Round
  • Power Supply/Supply Voltage
    18-30 V dc
  • Operation
    Light/Dark Operate
  • Power
    DC
  • Delay at Power-up (ms)
    1500
  • Beam to Beam Spacing [mm]
    162
  • Sensing Mode (Detailed)
    Diffuse
  • Number of Pins
    4
  • NEMA Rating
    N/A
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Primary Housing Material
    Black Anodized Aluminum
  • Lens Material
    Polycarbonate
  • IP Rating
    IP50
  • Housing Style
    Roller Conveyor
  • Indicator
    Indicator LEDs
  • Connection
    Cable
  • Repeatability (µs)
    N/A
  • Number of Beams
    4
  • Slot Overall Depth (mm)
    12

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR686BMSD4B-2.0FL-CTR on Powermatic Associates is $203.00. Order now.

About the product

TTR Series 4 Beam Sensor Array 27.0 inch Between Frame, Beam Spacing: 162 mm Range: 120 mm Diffuse, Output: Bimodal Input: 18 - 30 V dc, M8 Conn. B: Point up / hex and round 2.0 m (6 ft) Flying leads
