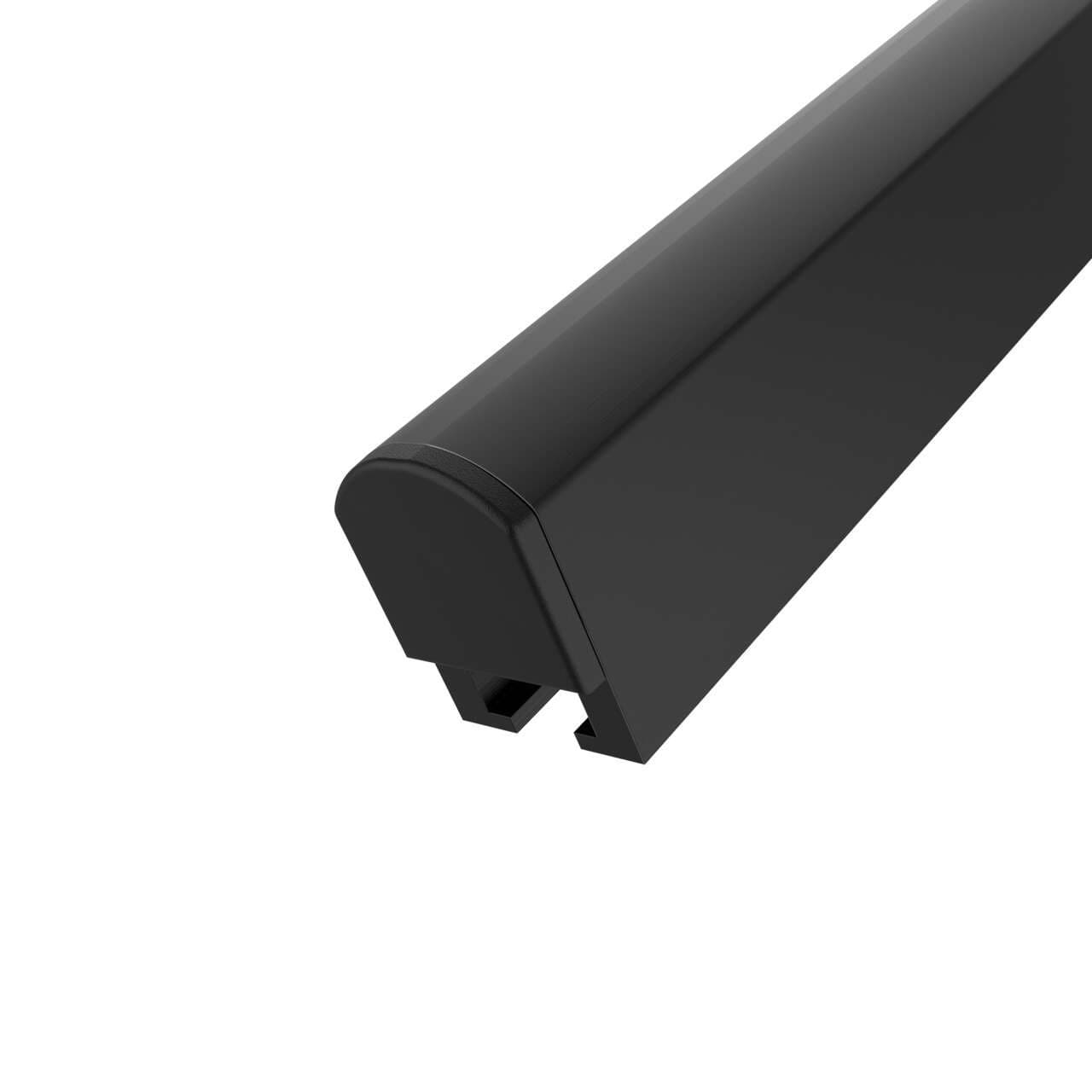

TTR686RPSD4T-1.0Q3-CTR Banner Safety Light Curtains
Part#:TTR686RPSD4T-1.0Q3-CTR
Alt. Part#:809856
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
TTR Series 4 Beam Sensor Array 27 in Between Frame; Beam Spacing: 162 mm; Range: 120 mm Diffuse; Output: DO PNP; Input: 18-30 V dc; 1 m (3.3 ft) M8 Conn. T: T-Slot Mount Endcap
Product Details
- Weight 381.01728 g
- Country Of Origin MX
- Cable Length (m) 1
- Slot Overall Depth (mm) 19
- Operation Dark Operate
- Number of Beams 4
- Max Sensing Range (mm) 120
- Lens Material Polycarbonate
- Beam to Beam Spacing [mm] 162
- Sensing Mode (Detailed) Diffuse
- Number of Pins 4
- Slot Depth/Array Length (mm) 686
- Output response time (ms) 1
- NEMA Rating N/A
- End Cap Type T: T-Slot Mounting
- Max Op. Temperature (°C) 55
- Primary Housing Material Black Anodized Aluminum
- Power Supply/Supply Voltage 18-30 V dc
- Max Op. Relative Humidity (%) 95% @ 55°C
- Connection Pigtail QD
- Min Op. Temperature (°C) -10
- Housing Style Roller Conveyor
- Outputs PNP
- Delay at Power-up (ms) 1500
- Quick Disconnect Type M8 (Pico)
- Power DC
- IP Rating IP50
- Adjustments N/A
- Indicator Indicator LEDs
- Distance to First Beam [mm] 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR686RPSD4T-1.0Q3-CTR on Powermatic Associates is $211.00. Order now.
About the product
Banner Engineering TTR686RPSD4T-1.0Q3-CTR is a sensor array designed with a diffuse mode featuring 4 beams. This part is pre-wired with a 1m pigtail terminated with an M8 connector. It has a rectangular shape with dimensions including a 686mm array length and a beam spacing/pitch of 162mm. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is designed to operate within an ambient air temperature range of -10 to +70°C. The TTR686RPSD4T-1.0Q3-CTR offers a degree of protection rated at IP50 and includes 1 x digital output (PNP transistor). Its sensing distance is 120mm, and it utilizes infrared (IR) light with a wavelength of 940 nm for detection.
