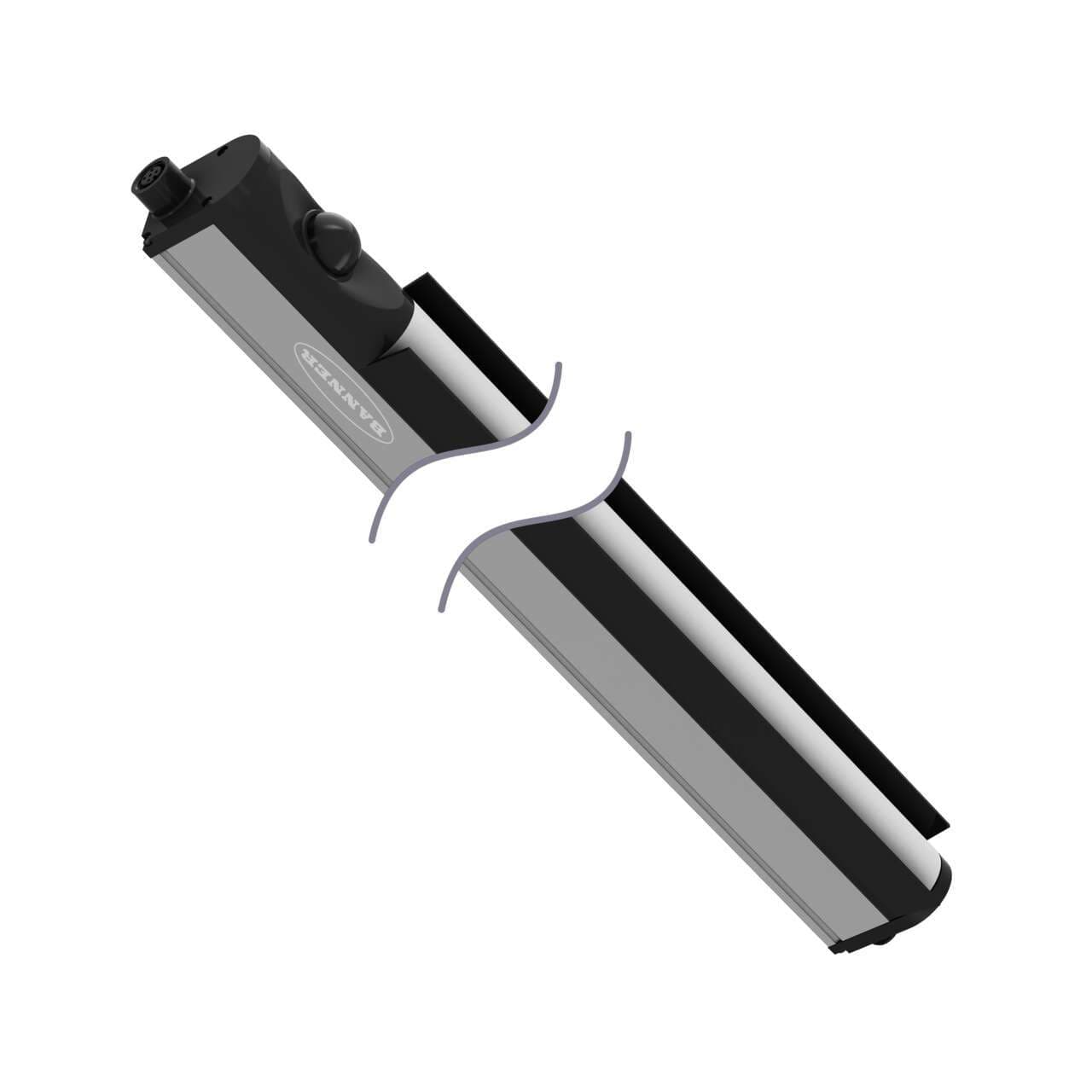

WLB32C570EMQ Banner Light Bars
Part#:WLB32C570EMQ
Alt. Part#:97829
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB32 Work Light Bar; Motion Sensor; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; M12 Integral QD - No Power cord; Diffuse window
Product Details
- Weight 680.388 g
- Country Of Origin MX
- Product Size (mm) 32
- Supply Voltage 12-30 V dc
- Illumination Switch Function Motion Activated
- Power DC
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP50
- IO Link No
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Eye Shield Yes
- Feature: Cascade Yes
- Mounting Thread No Thread
- Lumens Color 1 1500
- Storage Temp (°C) -40 to 70
- Wireless No
- Illumination Yes
- Connection Integral QD
- Max Op. Temperature (°C) 70
- Feature: Chemical Resistant No
- Color Technology Standard LED
- Illuminated Length (LxWxH mm) 570.0
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 1600
- Pro-Editor Compatible (Discrete) No
- Housing Style Linear Strip
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 672.0 x 38.3 x 50.2
- Modbus RTU No
- Primary Housing Material Aluminum
- Animation Option 1 Solid On
- Primary Window Material Polycarbonate Diffused
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32C570EMQ on Powermatic Associates is $222.00. Order now.
About the product
Banner Engineering WLB32C570EMQ is a cascadable industrial LED workstation light bar designed with a motion sensing eye shield for 1-color Daylight White (DW) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L570mm x W32mm, featuring a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. This linear lighting solution offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 1.6A of current, and provides a luminous flux of 1500 lm (lumens).
