WLB32ZC1130EPBQMB Banner Light Bars

WLB32ZC1130EPBQMB on Powermatic Associates
Banner
  • WLB32ZC1130EPBQMB
  • WLB32ZC1130EPBQMB

Part#:WLB32ZC1130EPBQMB

Alt. Part#:97839

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - Includes Type B Power cord; Diffuse window

Product Details

  • Weight
    1088.6208 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Illumination Switch Function
    I=Low; O=OFF; II=High
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Min Op. Temperature (°C)
    -25
  • Eye Shield
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    1144.0 x 38.3 x 48.0
  • Max Op. Temperature (°C)
    45
  • Environmental Rating
    IP50
  • Supply Voltage
    90-264 V ac
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Illuminated Length (LxWxH mm)
    1130.0
  • Number of Input Pins/Conductors
    3
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Max Current Color (mA)
    500
  • Connection
    Integral QD
  • Lumens Color 1
    3000
  • Color Option 1
    White
  • Animation Option 1
    Solid On
  • Primary Housing Material
    Aluminum
  • Color Technology
    Standard LED
  • Power Source
    AC
  • Housing Style
    Linear Strip
  • Power
    AC
  • Product Size (mm)
    32
  • Illumination
    Yes
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32ZC1130EPBQMB on Powermatic Associates is $327.00. Order now.

About the product

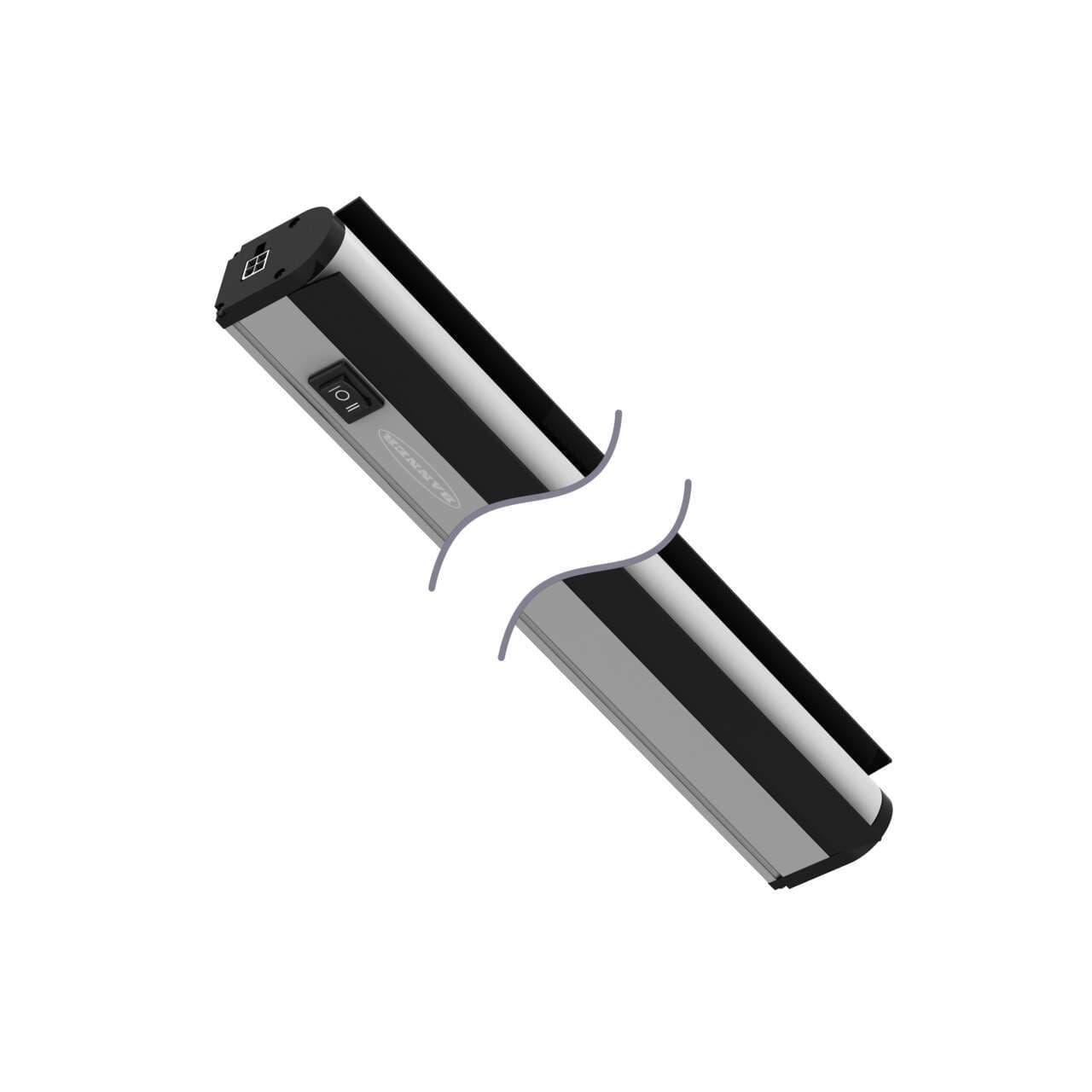

Banner Engineering WLB32ZC1130EPBQMB is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch, type B power cord, and an eye shield, providing 1-color Daylight White (DW) LED illumination. This task light operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The dimensions of this product are L1130mm x W32mm, constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. The linear lighting shape of this product is designed to fit a variety of spaces, and it offers a degree of protection rated at IP50. It is suitable for operation in ambient air temperatures ranging from -25°C to +45°C. The WLB32ZC1130EPBQMB includes 1 x digital input (100-240Vac) for color control, consumes 500mA of current, and delivers a luminous flux of 3000 lm (lumens).
