Y48G28T03S64X Eaton Industrial Automation Components

Y48G28T03S64X on Powermatic Associates
Eaton

Part#:Y48G28T03S64X

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

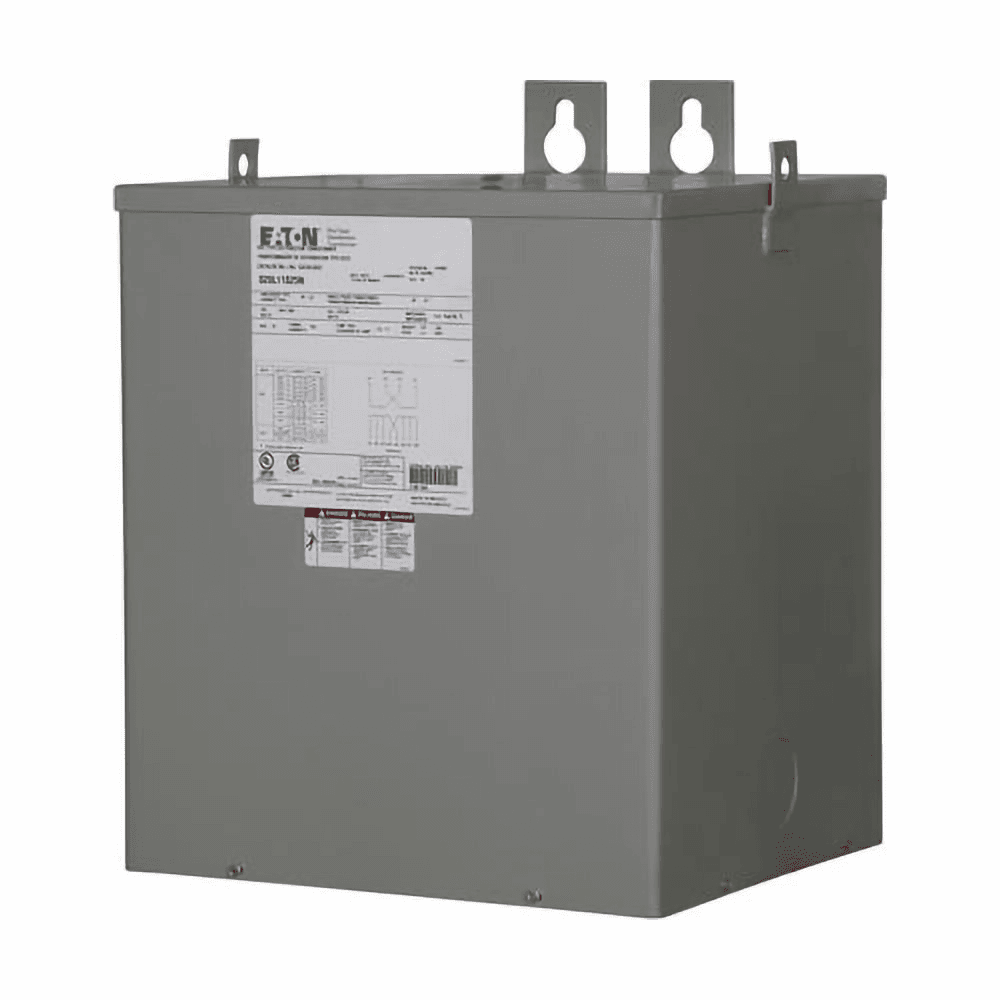

Y48G28T03S64X Eaton - Eaton, general purpose encapsulated transformer, ept three-phase 480v 2 at -5% fcbn 208y/120v 115°c 3 kva aluminum windings 2014x 70a indoor-outdoor 60 hz nema 4x

Product Details

  • Weight
    .001 pounds
  • Frame
    2014X
  • Type
    Encapsulated Transformer, General Purpose
  • Number of Phases
    3
  • Coil Material
    Aluminum
  • Primary Voltage
    480 volts
  • Secondary Voltage
    120 volts
  • Height
    0.001 inches
  • Length
    .001 inches

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
