10174 Festo Pneumatic Valves Accessories

10174 on Powermatic Associates
Festo

Part#:10174

Alt. Part#:NEV-1DA/DB-ISO

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

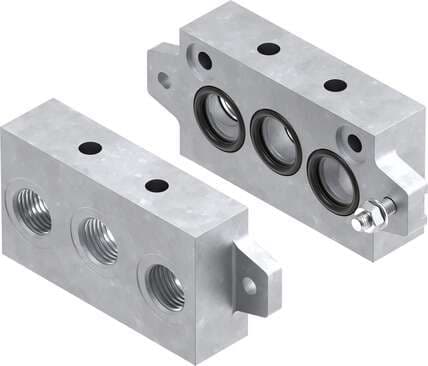

end plate kit NEV-1DA/DB-ISO For manifold assembly of standard manifold sub-bases. Conforms to standard: ISO 5599-1, Product weight: 280 g, Pneumatic connection, port 1: G3/8, Pneumatic connection, port 3: G3/8, Pneumatic connection, port 5: G3/8

Product Details

  • Pneumatic connection 1
    G3/8
  • Material of sub-base
    Die-cast aluminum
  • Conforms to standard
    ISO 5599-1
  • Pneumatic connection 5
    G3/8
  • Product weight
    280 g
  • Note on materials
    Free of copper and PTFE
  • Designation to VDMA
    VDMA 24345-D-1
  • Type code
    NEV
  • Pneumatic connection 3
    G3/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
