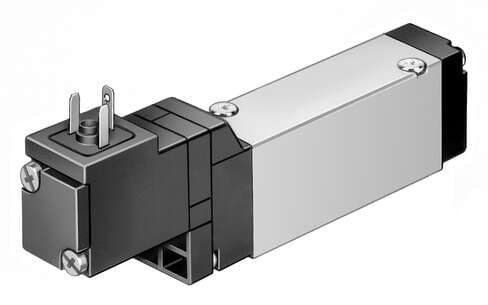

173005 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Standard nominal flow rate
  700 l/min
• Reset method
  Mechanical spring
• Width dimension
  18 mm
• Pilot air supply port
  Internal
• C value
  2.75 l/sbar
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Temperature of medium
  -5 °C ... 50 °C
• Type of mounting
  On sub-base
• Pneumatic connection 3
  Sub-base
• Valve function
  5/2, monostable
• Operating voltage
  24V DC
• Nominal width
  5 mm
• Mounting position
  Any
• b-value
  0.38
• Duty cycle
  100%
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 1
  Sub-base
• Pilot air port 14
  Sub-base
Housing material
Die-cast aluminum
Width
17.8 mm
Design
Piston gate valve
Degree of protection
IP65
Exhaust air function
With flow control option
Type of control
Pilot-controlled
On switching time
10 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
Form C Rectangular design
Pilot exhaust air port 82/84
Sub-base
Pneumatic connection 2
Sub-base
Pneumatic connection 5
Sub-base
Actuation type
Electrical
Pneumatic working port
Sub-base
Type code
MEBH
Manual override
Detenting via accessory
Flow direction
Non-reversible
Symbol
00991035
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Storage temperature
-20 °C ... 40 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12
Sub-base
Seals material
HNBR NBR
Operating pressure
2.5 bar ... 8 bar
Certification
c UL us - Recognized (OL)
Sealing principle
Soft
Pilot pressure
2.5 bar ... 8 bar
Switching time off
28 ms
Coil characteristics
24 V DC: 2.5 W
Noise level
75 dB(A)
Product weight
105 g
Pneumatic connection 4
Sub-base
Note on materials
RoHS-compliant
