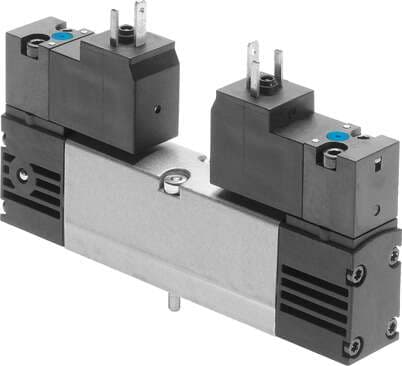

547164 Festo Directional Control Valves

Product Details

• Operating pressure
  -0.9 bar ... 16 bar
• Operating voltage
  12V DC
• Reset method
  Mechanical spring
• Valve function
  5/3, exhausted
• Actuation type
  Electrical
• Design
  Piston gate valve
• Mounting position
  Any
• Symbol
  00992939
• Switching time off
  58 ms
• Permissible voltage fluctuations
  -15 % / +10 %
• Temperature of medium
  -5 °C ... 50 °C
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Noise level
  85 dB(A)
• Pilot exhaust air port 82/84
  Not ducted as per standard Ducted
• Pneumatic connection 2
  Sub-base, size 26 mm as per ISO 15407-1
• Pilot interface
  as per ISO 15218
• Pilot pressure MPa
  0.3 MPa ... 1 MPa
• Standard nominal flow rate
  1000 l/min
• Pneumatic working port
  Sub-base, size 26 mm as per ISO 15407-1 G1/4
• Type code
  VSVA
Manual override
Non-detenting
Pilot pressure
3 bar ... 10 bar
Degree of protection
IP65 NEMA 4
Sealing principle
Soft
Exhaust air function
With flow control option
Pilot air supply port
External
Signal status display
LED
Changeover time
35 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
0 - No corrosion stress
Max. tightening torque for valve mounting
2 Nm
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
Sub-base, size 26 mm as per ISO 15407-1
Pneumatic connection 4
Sub-base, size 26 mm as per ISO 15407-1
Pneumatic connection 5
Sub-base, size 26 mm as per ISO 15407-1
Material of screws
Steel Galvanized
Lap
Overlap
Valve size
26 mm
Nominal width
9 mm
Type of control
Pilot-controlled
Flow rate of pneumatic valve on individual sub-base
1100 l/min
Duty cycle
100%
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Relative air humidity
0 - 90 %
Electrical connection
Form C Without PE conductor
Auxiliary pilot air port 12
Sub-base, size 26 mm as per ISO 15407-1
Pneumatic connection 3
Sub-base, size 26 mm as per ISO 15407-1
Seals material
HNBR NBR
Conforms to standard
ISO 15407-1 VDMA 24563
Flow direction
Reversible
Flow rate of pneumatic valve
1400 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1000 l/min
On switching time
23 ms
Coil characteristics
12 V DC: 1.8 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
305 g
Type of mounting
On sub-base
Auxiliary pilot air port 14
Sub-base, size 26 mm as per ISO 15407-1
Note on materials
RoHS-compliant
Housing material
Die-cast aluminum
