575603 Festo Directional Control Valves
Part#:575603
Alt. Part#:VUVS-L30-M52-MZD-G38-F8
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

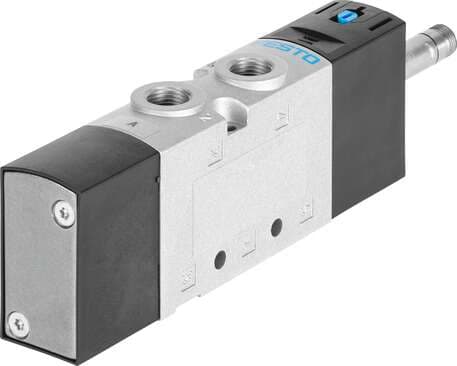

solenoid valve VUVS-L30-M52-MZD-G38-F8 Valve function: 5/2 monostable, Type of actuation: electrical, Valve size: 31 mm, Standard nominal flow rate: 2300 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Actuation type Electrical
- Standard nominal flow rate 2300 l/min
- Nominal width 9.4 mm
- Type of control Pilot-controlled
- C value 9.9 l/sbar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 1 G3/8
- Pneumatic connection 5 G3/8
- b-value 0.4
- Maritime classification See certificate
- Valve size 31 mm
- Operating pressure -0.9 bar ... 10 bar
- Sealing principle Soft
- Symbol 00991025
- Max. positive test pulse with 0 signal 2000 µs
- Max. negative test pulse on 1 signal 3600 µs
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection 3 G3/8
- Seals material HNBR NBR
- Valve function 5/2, monostable
- Material of screws Steel, nickel-plated
- Pneumatic working port G3/8
- Reset method Mechanical spring
- Type code VUVS
- Flow direction Reversible
- On switching time 17 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Type of mounting Optionally: With through-hole
- Pilot air port 14 G1/8
- Pneumatic connection 4 G3/8
- Piston slide material Wrought aluminum alloy
- Lap Overlap
- Certification c UL us - Recognized (OL)
- Manual override Detenting Non-detenting
- Pilot air supply port External
- Switching time off 62 ms
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Temperature of medium -10 °C ... 60 °C
- Venting hole connection Not ducted
- Pneumatic connection 2 G3/8
- Housing material Die-cast aluminum Painted
- Design Piston gate valve
- Exhaust air function With flow control option
- Mounting position Any
- Pilot pressure 2.5 bar ... 10 bar
- Certificate issuing authority DNVGL-TAA000011J
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 450 g
- Pilot exhaust air port 84 M5
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
