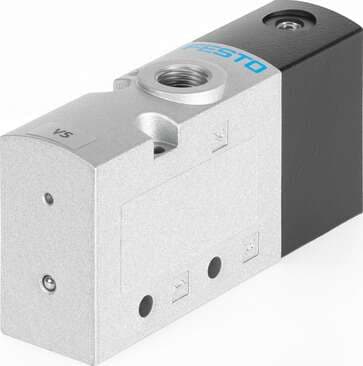

575639 Festo Directional Control Valves
Part#:575639
Alt. Part#:VUWS-L30-M32C-A-N38
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
pneumatic valve VUWS-L30-M32C-A-N38 Valve function: 3/2 closed, monostable, Type of actuation: pneumatic, Valve size: 31 mm, Standard nominal flow rate: 2300 l/min, Operating pressure: 2,5 - 10 bar
Product Details
- Valve function 3/2, closed, monostable
- Valve size 31 mm
- Reset method Pneumatic spring
- Sealing principle Soft
- Material of screws Steel, nickel-plated
- Standard nominal flow rate 2300 l/min
- Nominal width 9.4 mm
- Mounting position Any
- Symbol 00991742
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium -10 °C ... 60 °C
- Venting hole connection Not ducted
- Note on materials RoHS-compliant
- Lap Overlap
- Operating pressure 2.5 bar ... 10 bar
- Certification c UL us - Recognized (OL)
- Manual override None
- Pilot pressure 2.5 bar ... 10 bar
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot air port 12 1/8 NPT
- Seals material HNBR NBR
- Design Piston gate valve
- Exhaust air function With flow control option
- Flow direction Non-reversible
- Explosion prevention and protection Observe the information on the certificate Zone 22 (ATEX)
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Optionally: With through-hole
- Pneumatic connection 2 3/8 NPT
- Actuation type Pneumatic
- Pneumatic working port 3/8 NPT
- Type code VUWS
- Type of control Direct
- Switching time off 36 ms
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 3 3/8 NPT
- Housing material Die-cast aluminum Painted
- Pilot air supply port Internal
- On switching time 19 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 394 g
- Pneumatic connection 1 3/8 NPT
- Piston slide material Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
