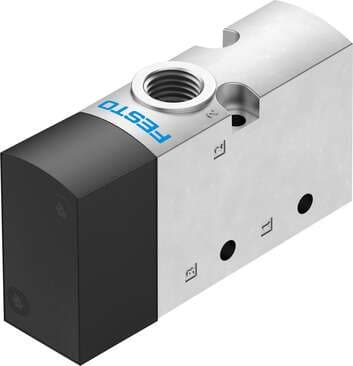

575673 Festo Directional Control Valves
Part#:575673
Alt. Part#:VUWS-L20-M32U-E-G18
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
pneumatic valve VUWS-L20-M32U-E-G18 Valve function: 3/2 open, monostable, Type of actuation: pneumatic, Valve size: 21 mm, Standard nominal flow rate: 700 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Material of screws Steel, galvanized
- Standard nominal flow rate 700 l/min
- Type code VUWS
- Manual override None
- On switching time 7 ms
- Temperature of medium -10 °C ... 60 °C
- Operating pressure -0.9 bar ... 10 bar
- Reset method Pneumatic spring
- Mounting position Any
- Flow direction Reversible
- Pilot pressure 2.5 bar ... 10 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Venting hole connection Not ducted
- Seals material HNBR NBR
- Valve function 3/2, open, monostable
- Pneumatic working port G1/8
- Certification c UL us - Recognized (OL)
- Type of control Direct
- Explosion prevention and protection Observe the information on the certificate Zone 22 (ATEX)
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection 1 G1/8
- Piston slide material Wrought aluminum alloy
- Actuation type Pneumatic
- Design Piston gate valve
- Exhaust air function With flow control option
- Switching time off 15 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 G1/8
- Note on materials RoHS-compliant
- Lap Overlap
- Valve size 21 mm
- Nominal width 5.7 mm
- Sealing principle Soft
- Pilot air supply port External
- Symbol 00995402
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 145 g
- Pneumatic connection 3 G1/8
- Type of mounting Optionally: With through-hole
- Housing material Die-cast aluminum Painted
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
