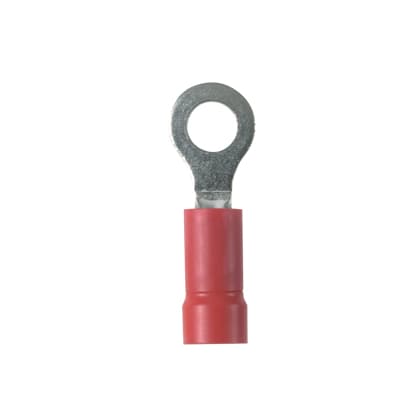

PN18-4RN-C Panduit Electronic Components

Product Details

• Maximum Copper Conductor Size (AWG STR)
  NA
• Minimum Wire Size (AWG)
  #18
• Barrel Type
  Grip Sleeve
• Stud Hole Size (mm)
  3
• Minimum Copper Conductor Size (AWG)
  NA
• Standards Met
  UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65
• Maximum Copper Conductor Size (AWG SOL)
  NA
• Wire Strip Length (In.)
  0.21
• Color Code
  Red
• Minimum Wire Insulation Diameter (In.)
  0.15
• Tongue Width (mm)
  6.4
• Maximum Copper Conductor Size (AWG)
  NA
• Maximum Voltage (kV)
  600
• Maximum Wire Insulation Diameter (In.)
  0.15
• Flammability Rating
  UL 94 V-2/UL 94 HB
• Minimum Wire Insulation Diameter (mm)
  3.8
• Stud Hole Size (In.)
  1/8
• Wire Strip Length (mm)
  5.5
• Tongue Width (In.)
  0.25
• Sub Brand
  Pan-Term
Insulation Material
Nylon
Minimum Copper Conductor Size (AWG STR)
NA
Finish/Coating
Tin-Plated
Insulation Diameter (In.)
0.15
Overall Length (mm)
18.8
Stud Size
#4
Maximum Wire Insulation Diameter (mm)
3.7
Overall Width (In.)
0.22
Product Type
Ring Terminal on Reel
Maximum Wire Size (AWG)
#22
Base Material
Copper
Insulation Diameter (mm)
3.8
Overall Length (In.)
0.74
Part Features
• Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure goo
Packaging Type
Bottle
Minimum Copper Conductor Size (AWG SOL)
NA
CSA Temperature Rating (°C)
221
Overall Width (mm)
5.6
