508FX2-N-ST Red Lion Industrial Automation Components

508FX2-N-ST on Powermatic Associates
Red Lion

Part#:508FX2-N-ST

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

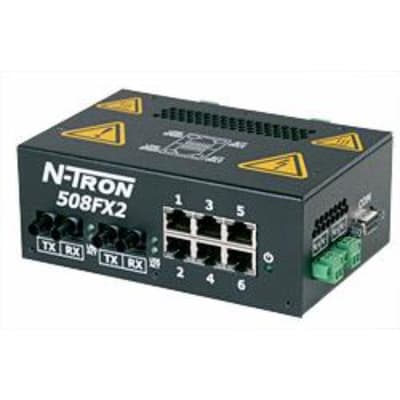

Red Lion 508FX2-N-ST is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities and N-View Remote Monitoring Technology. It operates on a supply voltage of 10-30Vdc, including redundant power inputs of 12Vdc and 24Vdc. The connection interface includes 6 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode with a 100BaseFX rating, suitable for 2km rated optical fiber lengths. The ambient air temperature range for storage is specified from -40 to +85 degrees Celsius. This model boasts a maximum throughput of 2.6Gbit/s, with an Ethernet rated impulse voltage (Uimp). It utilizes DIN rail technology for mounting and features a metallic case. The product is part of the N-Tron 500-N series, with 8 ports and is classified under the UNSPSC code specific to the series.

Product Details

  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status
  • Functions
    Industrial process control monitored Ethernet switch N-View Remote Monitoring Technology
  • Main function
    Ethernet Switch
  • Sub-range name
    N-Tron 500-N series
  • Communication protocol
    Ethernet
  • Material
    Metallic case
  • Secondary brand
    N-Tron
  • Mounting mode
    DIN rail
  • Equivalent to
    508FX2NST
  • Primary brand
    Red Lion
  • Connection capacity
    8-ports
  • Ambient air temperature for operation
    -40...+85 °C
  • Order code / Manufacturer SKU
    508FX2-N-ST
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Speed
    Maximum throughput 2.6Gbit/s
  • Product series / family name
    Ethernet switches
  • Connection type
    6 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (multi-mode; 100BaseFX; 2km rated optical fiber)
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

508FX2-N-ST Related Documents

Red Lion - N-Tron 500 Series Ethernet switches - Product Manual.pdfRed Lion - N-View 2 - Software Manual.pdfRed Lion - N-View 2 - Data Sheet.pdfRed Lion - N-View OPC - Data Sheet.pdfRed Lion - N-View OPC - Product Manual.pdf
