508FXE2-N-SC-15 Red Lion Industrial Automation Components

508FXE2-N-SC-15 on Powermatic Associates
Red Lion

Part#:508FXE2-N-SC-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

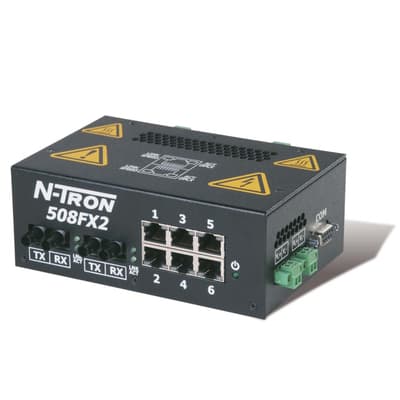

Red Lion 508FXE2-N-SC-15 is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities and N-View Remote Monitoring Technology. It operates on a supply voltage of 10-30Vdc, including redundant power inputs, and features 6 RJ45 ports (10/100BaseTX) and 2 fiber optic SC connectors (single-mode) with a 15km rated optical fiber length. The ambient air temperature for storage is specified from -40 to +85 degrees Celsius. This component supports a maximum throughput of 2.6Gbit/s, is designed for DIN rail mounting, and is enclosed in a metallic case. It is an 8-port switch, part of the N-Tron 500-N series, with a rated impulse voltage for Ethernet and conforms to the UNSPSC code for such devices.

Product Details

  • Product series / family name
    Ethernet switches
  • Speed
    Maximum throughput 2.6Gbit/s
  • Ambient air temperature for operation
    -40...+85 °C
  • Primary brand
    Red Lion
  • Connection type
    6 x RJ45 ports (10/100BaseTX) 2 x Fiber optic SC connectors (single-mode; 100BaseFX; 15km rated optical fiber)
  • Communication protocol
    Ethernet
  • Equivalent to
    508FXE2NSC15
  • Secondary brand
    N-Tron
  • Connection capacity
    8-ports
  • Mounting mode
    DIN rail
  • Order code / Manufacturer SKU
    508FXE2-N-SC-15
  • Main function
    Ethernet Switch
  • Functions
    Industrial process control monitored Ethernet switch N-View Remote Monitoring Technology
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations
  • Sub-range name
    N-Tron 500-N series
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Material
    Metallic case
  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

508FXE2-N-SC-15 Related Documents

Red Lion - N-View 2 - Software Manual.pdfRed Lion - N-View OPC - Product Manual.pdfRed Lion - N-View OPC - Data Sheet.pdfRed Lion - N-View 2 - Data Sheet.pdfRed Lion - N-Tron 500 Series Ethernet switches - Product Manual.pdf
