508FXE2-A-ST-15 Red Lion Industrial Automation Components

508FXE2-A-ST-15 on Powermatic Associates
Red Lion

Part#:508FXE2-A-ST-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

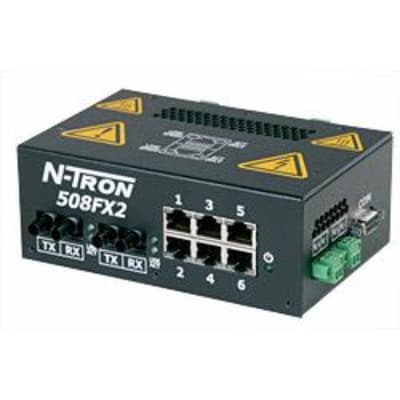

Red Lion 508FXE2-A-ST-15 is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. This switch operates on a supply voltage of 10-30Vdc, including redundant power inputs, and offers connectivity through 6 x RJ45 ports (10/100BaseTX) and 2 x Fiber optic ST connectors (single-mode) with a 15km rated optical fiber length for 100BaseFX. It incorporates advanced management firmware, is designed for DIN rail mounting with a metallic case, and operates within an ambient air temperature range for storage of -40 to +85 degrees Celsius. The switch is specified as an 8-port device under the N-Tron 500-A series, aligning with the UNSPSC code provided.

Product Details

  • Secondary brand
    N-Tron
  • Connection capacity
    8-ports
  • Primary brand
    Red Lion
  • Connection type
    6 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (single-mode; 100BaseFX; 15km rated optical fiber)
  • Sub-range name
    N-Tron 500-A series
  • Design
    advanced mngmt. firmware
  • Material
    Metallic case
  • Mounting mode
    DIN rail
  • Equivalent to
    508FXE2AST15
  • Communication protocol
    Ethernet
  • Ambient air temperature for operation
    -40...+85 °C
  • Main function
    Ethernet Switch
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Product series / family name
    Ethernet switches
  • Order code / Manufacturer SKU
    508FXE2-A-ST-15
  • Functions
    Industrial process control monitored Ethernet switch IGMP Auto Configuration VLAN QoS Trunking or Link aggregation Port Mirroring N-View Remote Monitoring Technology
  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
