508FXE2-ST-15 Red Lion Industrial Automation Components

508FXE2-ST-15 on Powermatic Associates
Red Lion

Part#:508FXE2-ST-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

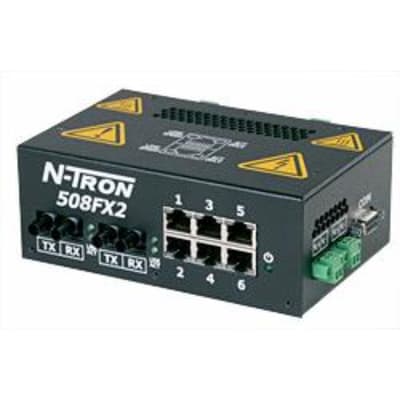

Red Lion 508FXE2-ST-15 is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 6 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for single-mode fibers, capable of transmitting data over a 15km rated optical fiber length. The switch is designed to withstand ambient air storage temperatures ranging from -40 to +85 degrees Celsius. With a control voltage for maximum throughput at 2.6Gbit/s, it adheres to an IP20 rating for protection against objects larger than 12.5mm but not against water. The technology utilized in this component includes a DIN rail mounting system and a metallic case for durability. This 8-port Ethernet switch falls under the N-Tron 500 series, classified with an unspecified UNSPSC code.

Product Details

  • Communication protocol
    Ethernet
  • Speed
    Maximum throughput 2.6Gbit/s
  • Primary brand
    Red Lion
  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Ambient air temperature for operation
    -40...+85 °C
  • Sub-range name
    N-Tron 500 series
  • Equivalent to
    508FXE2ST15
  • Degree of protection
    IP20
  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status
  • Secondary brand
    N-Tron
  • Mounting mode
    DIN rail
  • Material
    Metallic case
  • Order code / Manufacturer SKU
    508FXE2-ST-15
  • Connection type
    6 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (single-mode; 100BaseFX; 15km rated optical fiber)
  • Connection capacity
    8-ports
  • Compliant with standard(s)
    CE IEC 1613 EN 61000-6-2 EN 61000-6-4 EN 55011 cUL RoHS compliant UL Class 1 Division 2 Hazardous locations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
