725AXXBC3ML-120A Schneider Electric Electronic Components

725AXXBC3ML-120A on Powermatic Associates
Schneider Electric

Part#:725AXXBC3ML-120A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

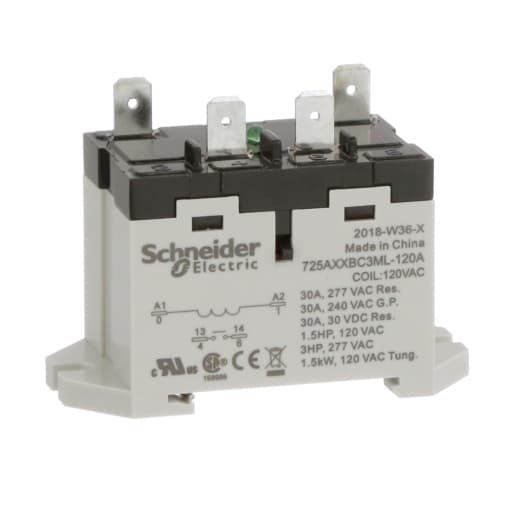

Harmony, Power relay, DIN rail/panel mount, 30 A,with LED indicator test button, flat (faston) terminals 120 V AC, 1 NO

Product Details

  • Local Signalling
    LED indicator test button
  • Product Range
    Harmony Electromechanical Relays
  • Nominal Input Voltage
    102...132 V AC 50/60 Hz
  • Electrical Durability
    100000 cycles resistive IEC
  • Network Frequency
    50/60 Hz
  • Average Coil Consumption
    2.50 VA
  • Net Weight
    4.23 oz (120 g)
  • Product Type
    DIN rail/panel mount relay
  • Contact Composition
    1 NO
  • Connections - Terminals
    Quick-connect terminal strips 6.35 x 0.8 mm
  • Mechanical Durability
    5000000 cycles
  • Rated Power In W
    1.5 kW 120 V tungsten
  • Drop-Out Voltage Threshold
    AC
  • [In] Rated Line Current
    30 A
  • Control Type
    Test button
  • Response Time
    30 ms
  • Class Number
    725
  • Contacts Material
    Silver alloy contacts
  • Dielectric Strength
    4000 V AC between coil and contact
  • Coil Resistance
    5200 Ohm
  • Series Name
    Power
  • Minimum Switching Current
    100 mA 5 V DC
  • Maximum Switching Voltage
    240 V CE 277 V UL
  • Mounting
    DIN rail Flange
  • Rated Power In Hp
    3 hp 277 V AC 1.5 hp 120 V AC
  • [Ie] Rated Operational Current
    30 A at 277 V AC (on resistive load) conforming to UL 30 A at 240 V AC (general purpose) conforming to UL 30 A at 30 V DC (on resistive load) conforming to UL 30 A at 240 V AC (on resistive load) conforming to IEC 30 A at 28 V DC (on r

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 725AXXBC3ML-120A on Powermatic Associates is $27.61. Order now.
