Part#:8536SBG2V02CP1S

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

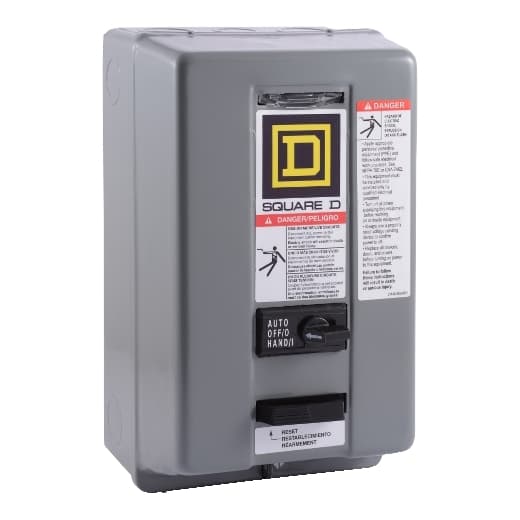

Non-Reversing Starter Size 0, 3-Pole, Melting Alloy Overload, NEMA 1 +Options

Product Details

  • Maximum Voltage Rating
    600 V AC
  • Terminal Type
    Screw clamp terminals
  • Height
    10.00 in (254.00 mm)
  • Number Of Poles
    3P
  • Pilot Light
    Red indicator on incandescent
  • Rated Current
    18 A
  • NEMA Size
    0
  • Type Of Overload
    Melting alloy 3
  • Width
    6.00 in (152.40 mm)
  • Product Range
    S
  • Phase
    3 phase
  • Control Circuit Type
    Separate control circuit
  • Starter Type
    Non reversing
  • Control Units
    Selector switch (HAND-OFF-AUTO)
  • Depth
    5.56 in (141.22 mm)
  • Product Type
    Motor starter
  • Auxiliary Contacts
    Without
  • Coil Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Horsepower Rating
    3 HP 200 V AC 3 HP 230 V AC 5 HP 460 V AC 5 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SBG2V02CP1S on Powermatic Associates is $1,190.00. Order now.
