Part#:8536SBW12V03A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

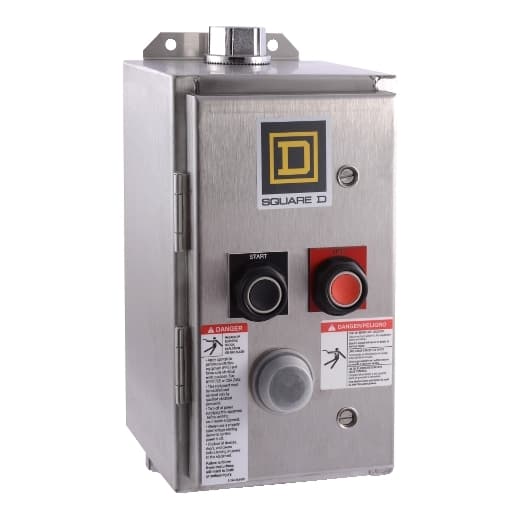

Non-Reversing Starter Size 0, 3-Pole, Melting Alloy Overload, NEMA 4/4X +Options

Product Details

  • NEMA Size
    0
  • Starter Type
    Non reversing
  • Number Of Poles
    3P
  • Product Range
    S
  • Product Type
    Motor starter
  • Rated Current
    18 A
  • Type Of Overload
    Melting alloy 3
  • Maximum Voltage Rating
    600 V AC
  • Pilot Light
    Without pilot light
  • Control Circuit Type
    Common control circuit
  • Phase
    3 phase
  • Control Units
    2 momentary push-buttons (START-STOP)
  • Width
    6.38 in (162.05 mm)
  • Depth
    7.81 in (198.37 mm)
  • Terminal Type
    Screw clamp terminals
  • Auxiliary Contacts
    Without
  • Height
    13.19 in (335.03 mm)
  • Coil Voltage
    220 V AC 50 Hz 240 V AC 60 Hz
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Horsepower Rating
    3 HP 200 V AC 3 HP 230 V AC 5 HP 460 V AC 5 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SBW12V03A on Powermatic Associates is $1,353.00. Order now.
