8536SCG3V02H30S Schneider Electric Industrial Automation Components

8536SCG3V02H30S on Powermatic Associates
Schneider Electric

Part#:8536SCG3V02H30S

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

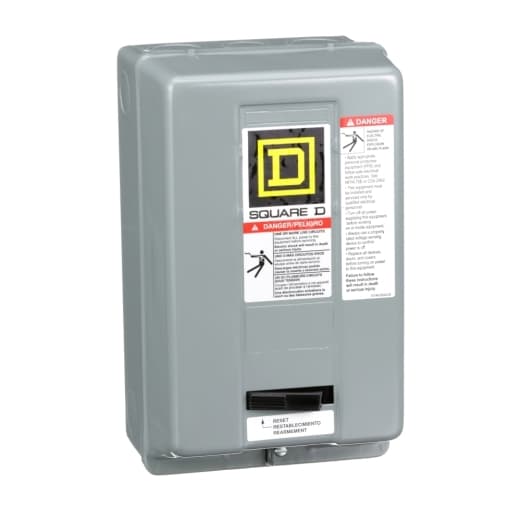

Schneider Electric - 8536SCG3V02H30S

Product Details

  • Phase
    3 phase
  • Auxiliary Contacts
    Without
  • Product Range
    S
  • Product Type
    Motor starter
  • Control Circuit Type
    Separate control circuit
  • Width
    6.00 in (152.40 mm)
  • Maximum Voltage Rating
    600 V AC
  • Terminal Type
    Screw clamp terminals
  • Rated Current
    27 A
  • Control Units
    No control units
  • Depth
    5.56 in (141.22 mm)
  • Starter Type
    Non reversing
  • Number Of Poles
    3P
  • Pilot Light
    Without pilot light
  • NEMA Size
    1
  • Type Of Overload
    Solid state Motor Logic class 10/20
  • Height
    10.00 in (254.00 mm)
  • Coil Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • Horsepower Rating
    7.5 HP 200 V AC 7.5 HP 230 V AC 10 HP 460 V AC 10 HP 575 V AC
  • SCCR
    Circuit-breaker 70 A maximum: 100 kA at 480 V AC Fuse J 60 A maximum: 100 kA at 600 V AC Fuse T 60 A maximum: 100 kA at 600 V AC Fuse RK1 60 A maximum: 100 kA at 600 V AC Fuse RK5 60 A maximum: 100 kA at 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SCG3V02H30S on Powermatic Associates is $683.00. Order now.

8536SCG3V02H30S Related Documents

Product Datasheet-1631035366290.pdfInstruction Sheet-1631035366293.pdfCatalog-1631035366316.pdf
