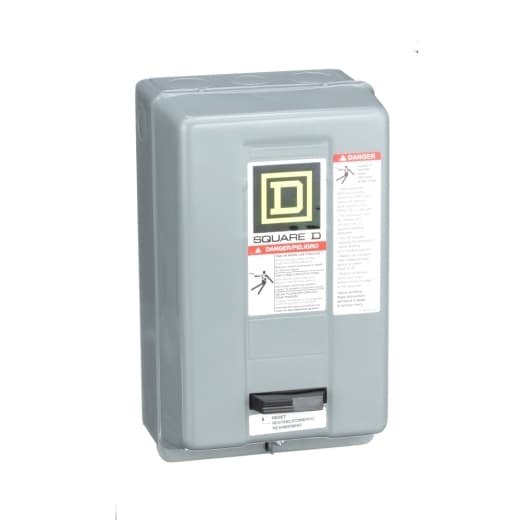

8536SCG3V03H30 Schneider Electric Industrial Automation Components

Product Details

• Maximum Voltage Rating
  600 V AC
• Height
  10.00 in (254.00 mm)
• Number Of Poles
  3P
• Type Of Overload
  Solid state Motor Logic class 10/20
• Terminal Type
  Screw clamp terminals
• Phase
  3 phase
• Pilot Light
  Without pilot light
• Product Type
  Motor starter
• Auxiliary Contacts
  Without
• Starter Type
  Non reversing
• Control Circuit Type
  Common control circuit
• Product Range
  S
• Depth
  5.56 in (141.22 mm)
• Rated Current
  27 A
• NEMA Size
  1
• Control Units
  No control units
• Width
  6.00 in (152.40 mm)
• Coil Voltage
  220 V AC 50 Hz 240 V AC 60 Hz
• Horsepower Rating
  7.5 HP 200 V AC 7.5 HP 230 V AC 10 HP 460 V AC 10 HP 575 V AC
• SCCR
  Circuit-breaker 70 A maximum: 100 kA at 480 V AC Fuse J 60 A maximum: 100 kA at 600 V AC Fuse T 60 A maximum: 100 kA at 600 V AC Fuse RK1 60 A maximum: 100 kA at 600 V AC Fuse RK5 60 A maximum: 100 kA at 600 V AC
