Part#:8536SDA6V02S

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

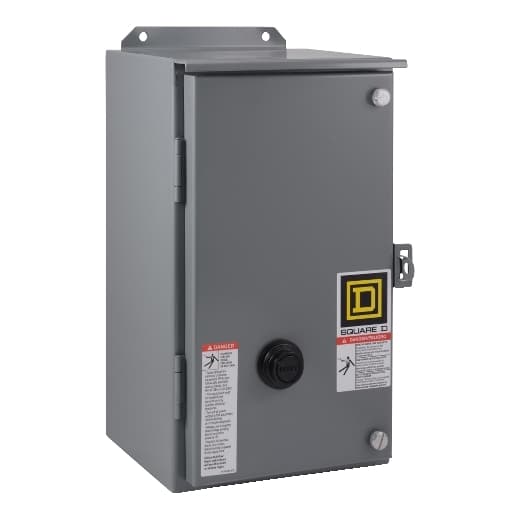

NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 7.5 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 120 VAC coil, NEMA 12

Product Details

  • Rated Current
    45 A
  • Control Circuit Type
    Separate control circuit
  • Number Of Poles
    2P
  • Terminal Type
    Screw clamp terminals
  • Control Units
    No control units
  • NEMA Size
    2
  • Product Type
    Motor starter
  • Maximum Voltage Rating
    600 V AC
  • Pilot Light
    Without pilot light
  • Starter Type
    Non reversing
  • Height
    16.00 in (406.40 mm)
  • Type Of Overload
    Melting alloy 1
  • Width
    8.13 in (206.50 mm)
  • Product Range
    S
  • Depth
    9.28 in (235.71 mm)
  • Phase
    1 phase
  • Auxiliary Contacts
    Without
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Coil Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • Horsepower Rating
    3 HP 115 V AC 7.5 HP 230 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SDA6V02S on Powermatic Associates is $1,380.00. Order now.
